SPEED (green/orange/off): This LED lights up to indicate a successful 100Base-TX or
1000BASE-T connection. When green it indicates a 100Base-TX connection and when orange
it indicates a 1000Base-T connection. When not lit and the ACT-LED is active, the connection
is operating at 10Base-T.
2.11.7 SATA Interfaces
The CP3003-SA provides six SATA interfaces, one SATA 3 Gb/s interface for the SATA Flash
module, one SATA 6 Gb/s interface for the onboard SATA connector J3, one SATA 3 Gb/s in-
terface for the CFast memory card on the CP3003-HDD/CP3003-XMC extension module (8
HP), one SATA 6 Gb/s interface for the SATA 2.5" HDD/SSD on the CP3003-HDD extension
module (8 HP), and two SATA 3 Gb/s interfaces for rear I/O.
All six SATA interfaces provide high-performance RAID 0/1/5/10 functionality.
For further information on the SATA Flash module, refer to Appendix D. For further information
on the SATA interface on the CP3003-HDD extension module, refer to Appendix A.
2.11.7.1 SATA Connector J3
The CP3003-SA is equipped with one standard SATA connector, J3, which is used to connect
a standard HDD/SSD or another SATA device to the CP3003-SA.
Note ...
If the onboard SATA connector will be used, due to the big SATA connector and
the stiff SATA cable, the CP3003-SA may exceed the thickness of 4 HP.
Note ...
To ensure secure connectivity, the SATA connector supports the use of SATA
3 Gb/s cables (SATA cables with locking latch).

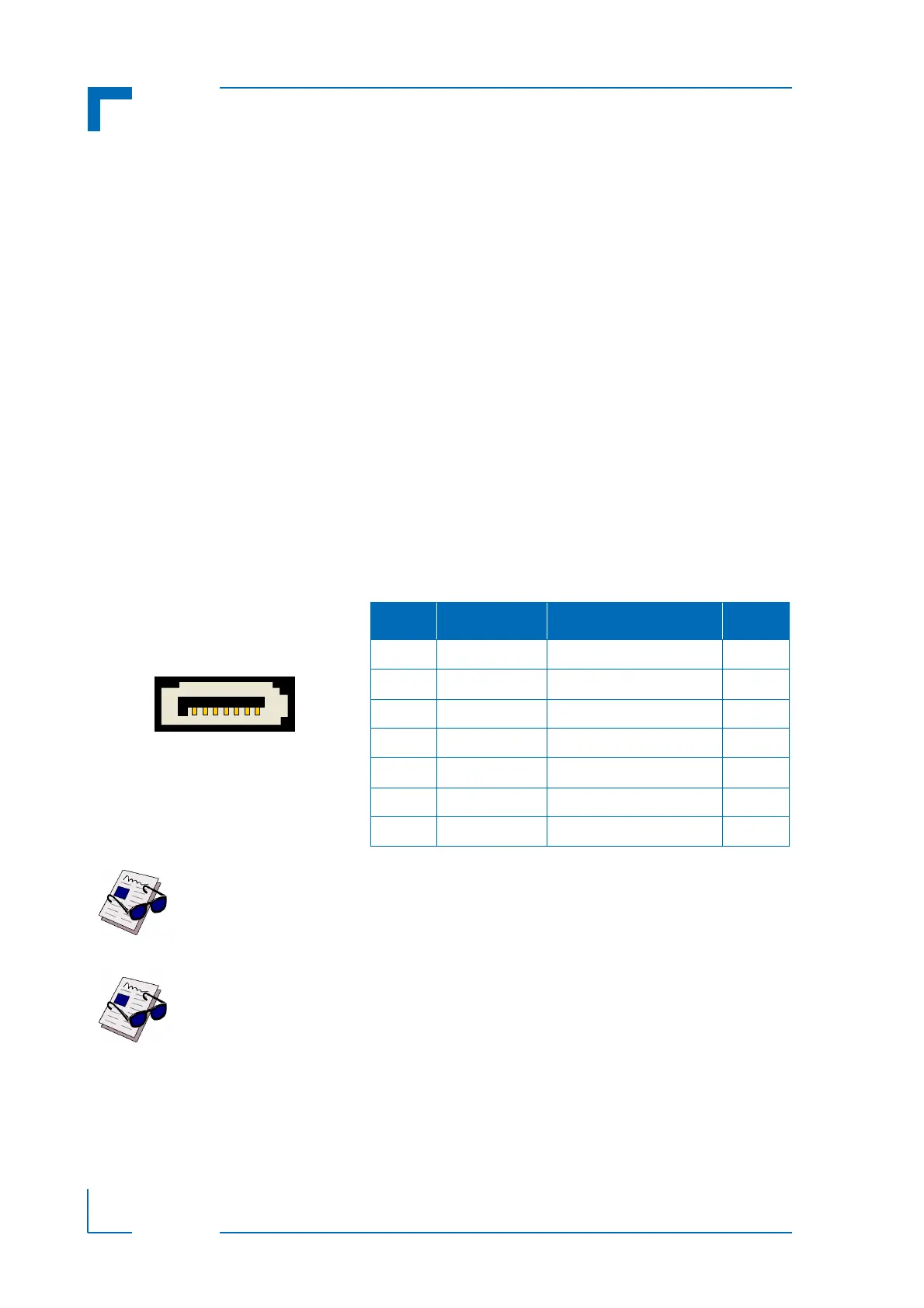

Table 2-11: SATA Connector J3 Pinout
PIN SIGNAL FUNCTION I/O
1 GND Ground signal --
2 SATA_TX+ Differential Transmit + O
3 SATA_TX- Differential Transmit - O
4 GND Ground signal --
5 SATA_RX- Differential Receive - I
6 SATA_RX+ Differential Receive + I
7 GND Ground signal --
