CP3003-SA CP-RIO3-04 Rear I/O
ID 1052-6929, Rev. 3.0 Page C - 7
D R A F T — F O R I N T E R N A L U S E O N L Y
C.5.3 Gigabit Ethernet Interface
The Ethernet connectors are realized as RJ-45 con-
nectors. The interface provides automatic detection
and switching between 10Base-T, 100Base-TX and
1000Base-T data transmission (Auto-Negotiation).
Auto-wire switching for crossed cables is also sup-
ported (Auto-MDI/X).
RJ-45 Connector J10A/B Pinout
The J10A/B connector supplies the 10Base-T,
100Base-TX and 1000Base-T interfaces to the Ether-
net controller.

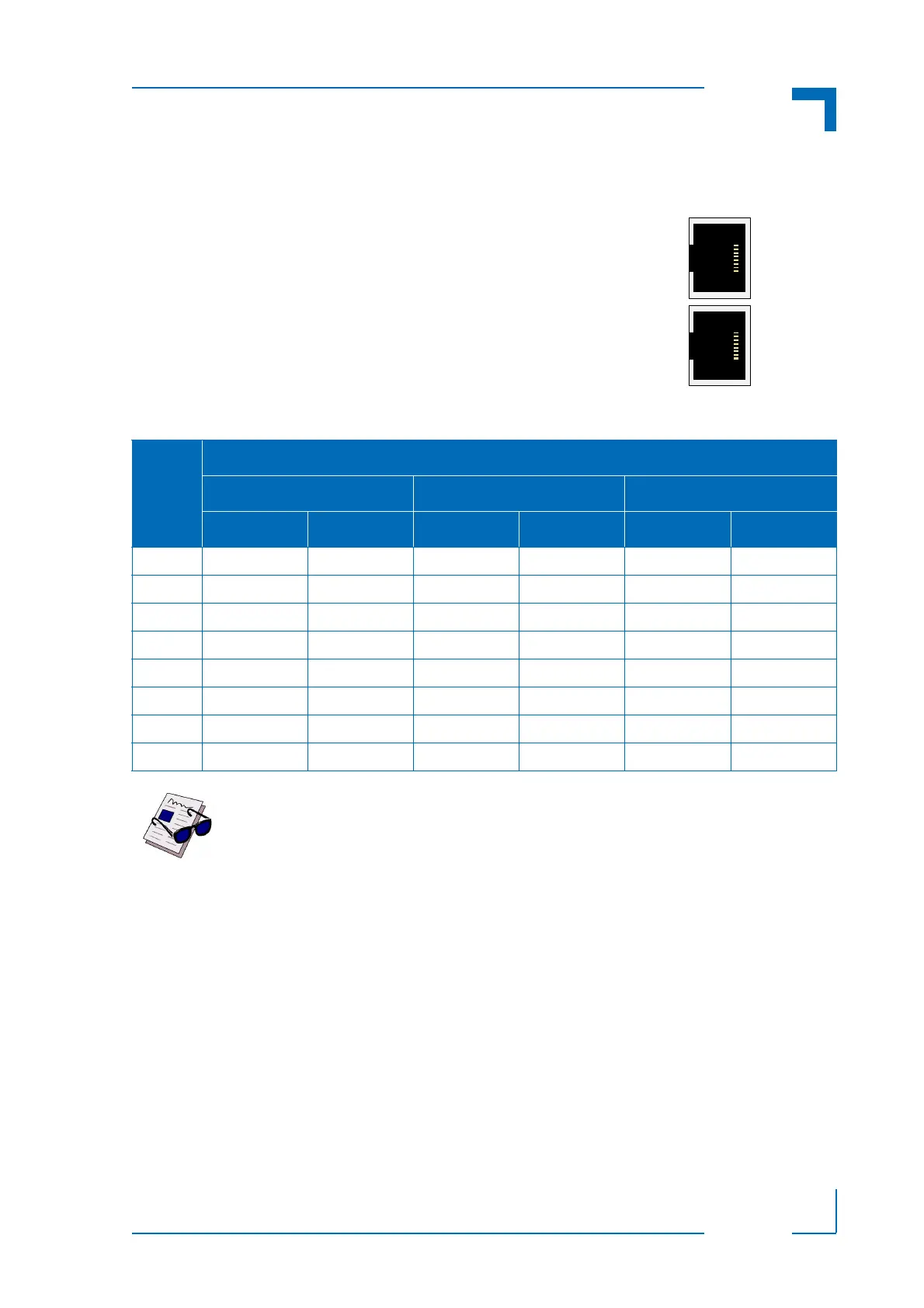

Table C-4: Dual Gigabit Ethernet Connector J10A/B Pinout
PIN
MDI / STANDARD ETHERNET CABLE
10BASE-T 100BASE-TX 1000BASE-T
I/O SIGNAL I/O SIGNAL I/O SIGNAL
1 O TX+ O TX+ I/O BI_DA+
2 O TX- O TX- I/O BI_DA-
3 I RX+ I RX+ I/O BI_DB+
4----I/OBI_DC+
5----I/OBI_DC-
6 I RX- I RX- I/O BI_DB-
7----I/OBI_DD+
8----I/OBI_DD-
Note ...
The Ethernet transmission can operate effectively with structured cable that
meets CAT5 cable or higher specifications.
J10B
J10A
8
1
8
1
Figure C-6: Dual Gigabit Ethernet
Connector J10A/B
