A.6.6 SATA Interface
The CP3003-HDD extension module provides a SATA connector, J6, for connecting a 2.5”
SATA HDD/SSD to the CP3003-HDD module and is divided into three segments: a primary
signal segment, a secondary signal segment, and a power segment. An additional SATA con-
nector, J2, for connecting a second 2.5” SATA HDD/SSD is available on the SATA adapter
module, which expands the CP3003-SA to 12 HP.

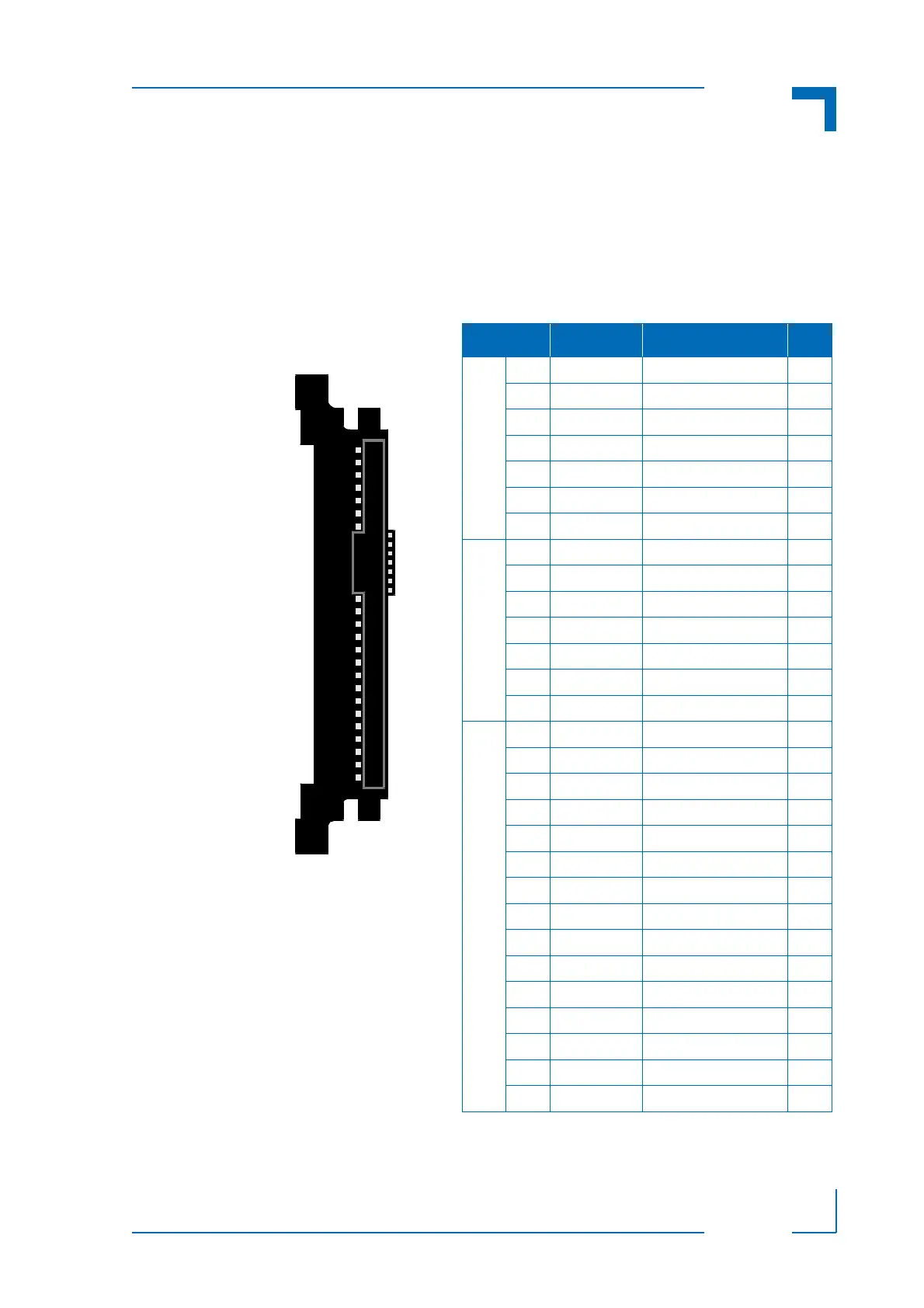

Figure A-11: SATA Connector J6/J2
Table A-7: SATA Connector J6/J2 Pinout
PIN SIGNAL FUNCTION I/O
Primary Signal Segment
S1 GND Ground signal --
S2 SATA_TX+ Differential Transmit+ O
S3 SATA_TX- Differential Transmit- O
S4 GND Ground signal --
S5 SATA_RX- Differential Receive- I
S6 SATA_RX+ Differential Receive+ I
S7 GND Ground signal --
Secondary Signal Segment
S8 GND Ground signal --
S9 NC Not connected --
S10 NC Not connected --
S11 GND Ground signal --
S12 NC Not connected --
S13 NC Not connected --
S14 GND Ground signal --
Power Segment
P1 3.3V 3.3V power --
P2 3.3V 3.3V power --
P3 3.3V 3.3V power --
P4 GND Ground signal --
P5 GND Ground signal --
P6 GND Ground signal --
P7 5V 5V power --
P8 5V 5V power --
P9 5V 5V power --
P10 GND Ground signal --
P11 RES Reserved --
P12 GND Ground signal --
P13 NC (12V) Not connected --
P14 NC (12V) Not connected --
P15 NC (12V) Not connected --
Primary Signal
Segment
Power
Segment
S1
S7
P1
P15
Secondary Signal
Segment
S8
S14
