CP3003-HDD CP3003-SA
Page A - 6 ID 1052-6929, Rev. 3.0
D R A F T — F O R I N T E R N A L U S E O N L Y
A.4 Front Panel of the CP3003-SA with CP3003-HDD Module

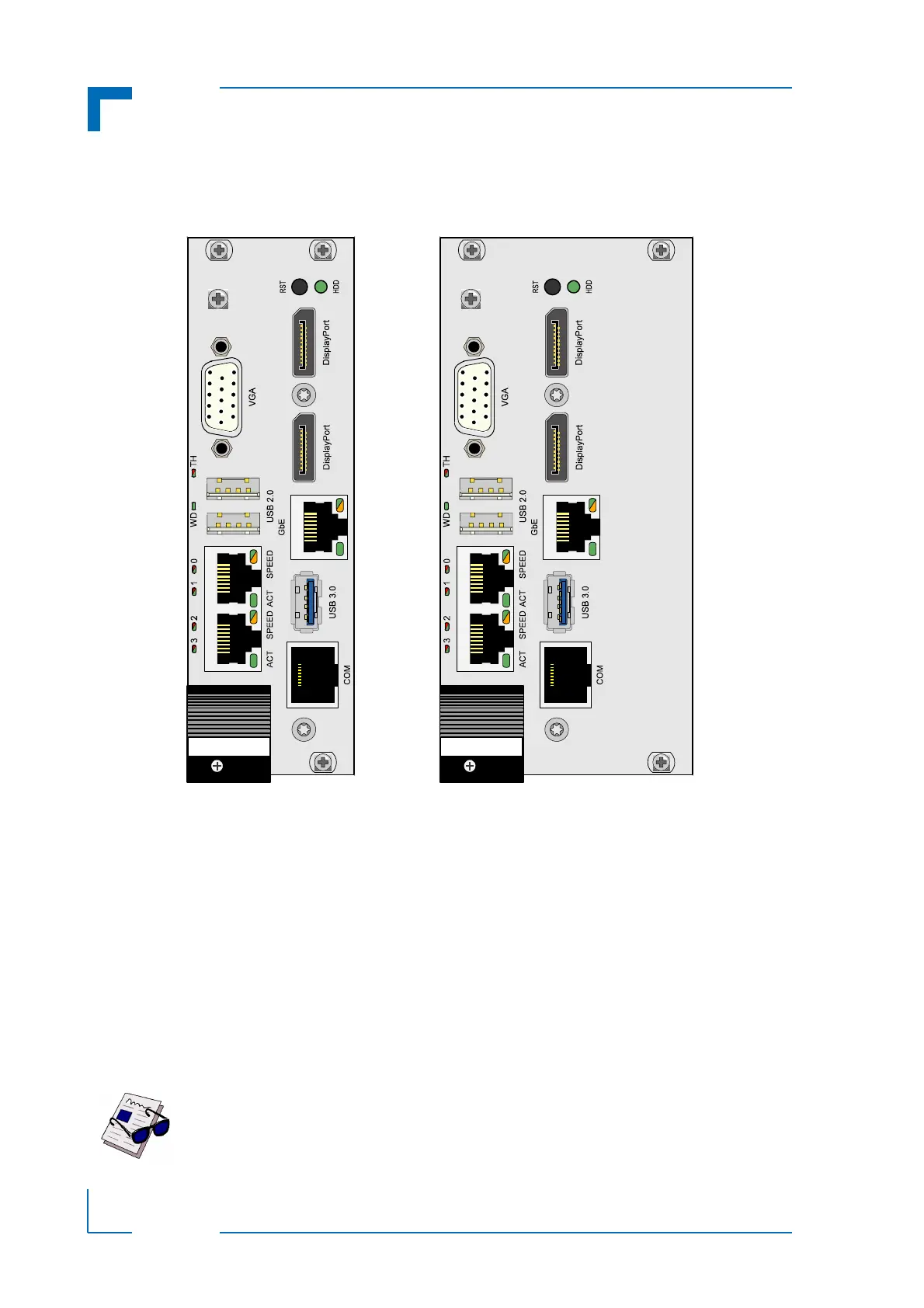

Figure A-2: Front Panel of the 8 HP and 12 HP CP3003-SA with CP3003-HDD Module
CP3003 CP3003
GbE A
GbE B
GbE C
GbE A
GbE B
GbE C
8 HP 12 HP
Watchdog and Overtemperature Status LEDs
WD (green): Watchdog Status
TH (red/green): Overtemperature Status
Integral Ethernet LEDs
ACT (green): Ethernet Link/Activity
SPEED (green/orange/off): Ethernet Speed
General Purpose LEDs
LED0..3 (red/green/red+green): General Purpose/POST Code
Note ...
If the General Purpose LEDs 0..3 are lit red during boot-up, a failure is indi-
cated before the uEFI BIOS has started.
