Effect Guide
364

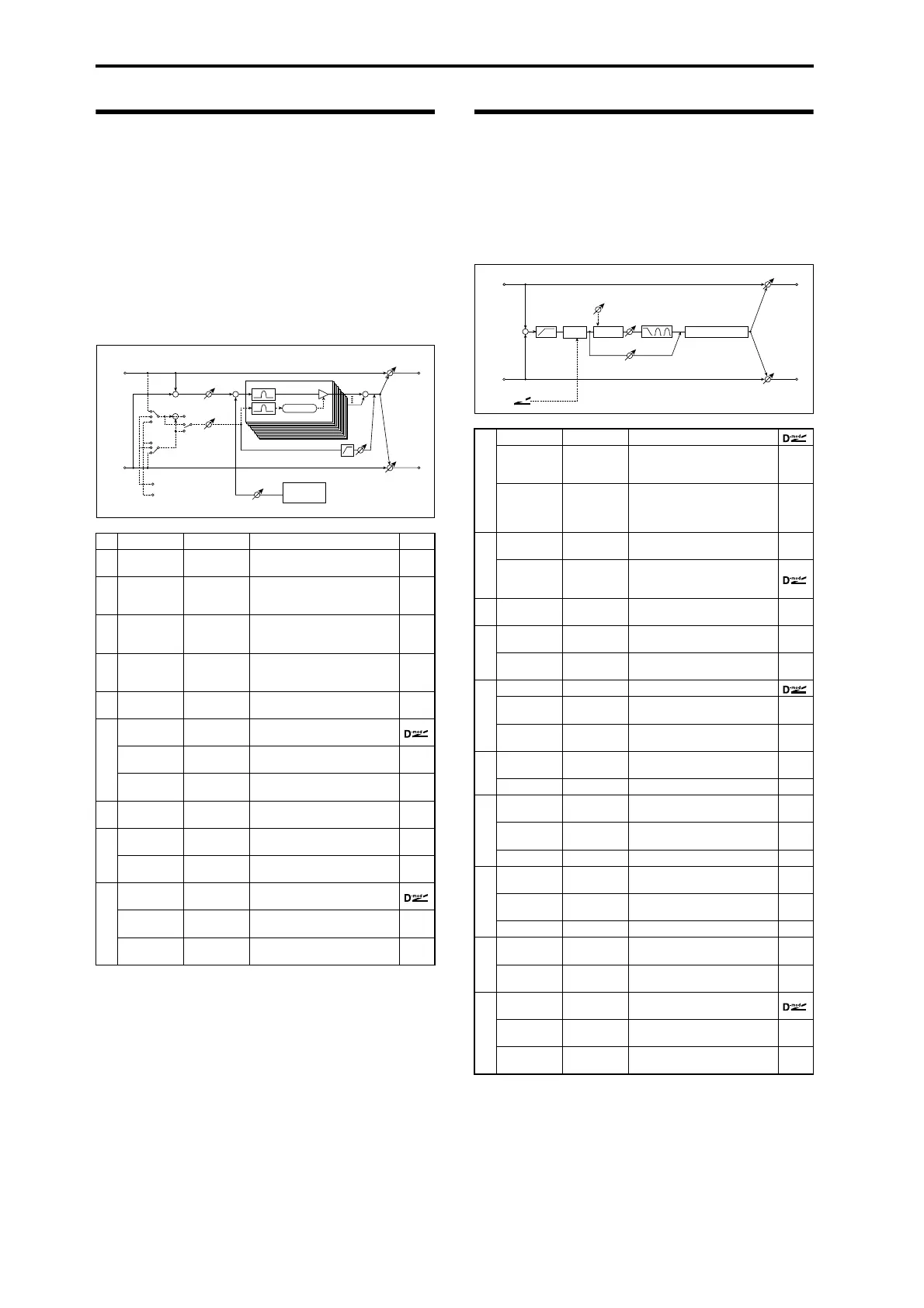

156: Vocoder
This effect applies the timbral character of a one signal (the
modulator) to a second signal (the carrier).
On the M50, an external source such as a mic cannot be used
as the modulator source, but you can create unique effects
by using an internal sound source as the modulator. Try
selecting voice-type sounds, rhythms, or sound effects as the
modulator. The most suitable choices for the carrier are
sounds that contain a large number of overtones, such as
strings or distorted guitar. For details on how to make
settings, refer to “Example: Vocoder (Combination)” on
page 274.
e: Formant Shift
By offsetting the Carrier filter, you can adjust the height of
the frequency range to which the vocoder effect is applied.
The tonal quality will change significantly.
g: Noise Level
This parameter enables you to mix white noise with the
Carrier.
h: Modulator High Mix
This parameter sets the high-range output level of the
modulator sound. If the modulator is a human voice, it will
make the words more clear.
157: OD/HyperGain Wah
(Overdrive/Hyper Gain Wah)
This distortion effect has two modes: overdrive and hyper-
gain that produces a strong distortion. A higher high-gain
setting is required for this effect relative to a normal-size
effect.
aCarrier Trim 0...100 Sets the Carrier input level
b
Modulator
Trim
0...100 Sets the Modulator input level
c
Modulator
Source
Input,
FX Control 1,
FX Control 2
Selects the modulator input
d
Modulater
Select
L/R Mix,
L Only,
R Only
Selects whether to use the left/
right mix, only left, or only right
of the modulator input
e
Formant
Shift
–2...+2
Sets the height of the
frequency for the vocoder
effect p.364
fResponse 0...100
Sets the speed of the response
to the modulator input
g
Noise Level 0...100
Sets the noise mix level to the
Carrier p.364
Src Off...Tempo
Selects the modulation source
for the noise mix level
Amt –100...+100
Sets the modulation amount
for the noise mix level
h
Modulator
High Mix
0...100
Sets the high-range output
level of the modulator p.364
i
Low Gain
[dB]
–12...+12
Sets the low-range output level
of the vocoder
High Gain
[dB]
–12...+12
Sets the high-range output
level of the vocoder
j
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Stereo In - Mono Out / Dry: Stereo In - Stereo Out
Band Pass Filter
Envelope
Carrier Trim
Modulator Trim
Modulator High Mix
Noise
Generator
Noise Level
+
+
FX Control BUS 1
FX Control BUS 2
Modulator Source
Modulator Select
+
+
a
WahOff, On Switches Wah on/off p.302
Src Off...Tempo
Selects the modulation source
that switches the Wah on and
off p.302
Sw
Toggle,
Moment
Selects the switching mode for
the modulation source that
switches the Wah on and off
p.302
b
Wah Sweep
Range
–10...+10 Sets the range of Wah p.302
Wah Sweep
Src
Off...Tempo
Selects the modulation source
that controls the Wah
p.302
cDrive Mode
Overdrive,
Hyper-Gain
Switches between overdrive
and hi-gain distortion
d
Drive 1...120
Sets the degree of distortion
p.302
Pre Low-cut 0...10
Sets the low range cut amount
of the distortion input p.302
e
Output Level 0...50 Sets the output level p.302
Src Off...Tempo
Selects the modulation source
for the output level
Amt –50...+50
Sets the modulation amount of
the output level
f
Low Cutoff
[Hz]
20...1.00k
Sets the center frequency for
Low EQ (shelving type)
Gain [dB] –18...+18 Sets the gain of Low EQ
g
Mid1 Cutoff
[Hz]
300...10.00k
Sets the center frequency for
Mid/High EQ 1 (peaking type)
Q 0.5...10.0
Sets the band width of Mid/
High EQ 1 p.294
Gain [dB] –18...+18 Sets the gain of Mid/High EQ 1
h
Mid2 Cutoff
[Hz]
500...20.00k
Sets the center frequency for
Mid/High EQ 2 (peaking type)
Q 0.5...10.0
Sets the band width of Mid/
High EQ 2 p.294
Gain [dB] –18...+18 Sets the gain of Mid/High EQ 2
i
Direct Mix 0...50
Sets the amount of the dry
sound mixed to the distortion
Speaker
Simulation
Off, On
Switches the speaker
simulation on/off
j
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
Amp Simulation
3 Band EQ
Output Level
Direct Mix
Pre Low-cut
D
-mod
Wah
Mode: Overdrive / Hyper-Gain
Drive
Driver
+
