Effect Guide
352

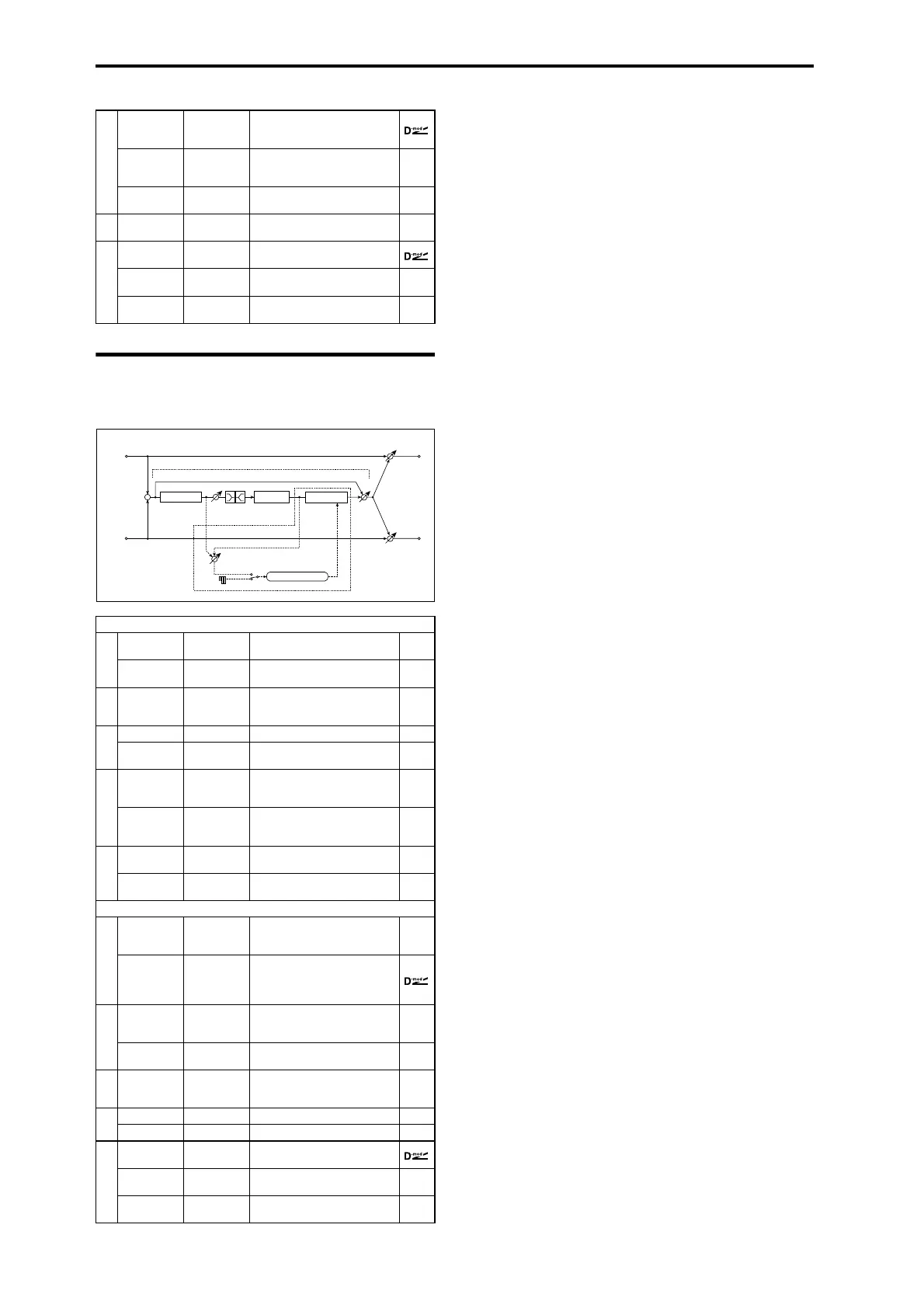

108: Reverb - Gate
This effect combines a mono reverb and a gate.
f: [G]Envelope Select
f: Src
g: [G]Input Reverb Mix
g: Threshold
The [G]Envelope Select parameter enables you to select
whether turning the gate on and off is triggered by the input
signal level or controlled directly by the modulation source.
You can select from Off to Gate2+Dmpr for the Src
parameter to specify the modulation source.
When [G]Envelope Select is set to Input, the gate is
controlled by the level of signals that are the combination of
the dry sound and the reverb sound. When the signal level
exceeds the threshold, the gate opens and the reverb sound
is output.
Normally, set [G]Input Reverb Mix to Dry (the gate is
controlled only by the dry sound). If you wish to extend the
gate time, set the [G]Input Reverb Mix value higher and
adjust the Threshold value.
h
[F]Cho/Flng
Wet/Dry
–Wet...
–1 : 99, Dry,
1 : 99...Wet
Sets the effect balance of the
chorus/flanger
p.299, p.310
Src Off...Tempo
Selects the Wet/Dry
modulation source for the
chorus/flanger
Amt –100...+100
Sets the Wet/Dry modulation
amount for the chorus/flanger
i
[F]Output
Mode
Normal,
Wet Invert
Selects the output mode for the
chorus/flanger p.338
j
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
REVERB
a
[R]Reverb
Time [sec]
0.1...10.0 Sets the reverberation time
High Damp
[%]
0...100
Sets the damping amount in
the high range
b
[R]Pre Delay
[msec]
0...200
Sets the delay time of the
reverb sound and gate control
signal
c
[R]EQ Trim 0...100 Sets the EQ input level
Reverb
Balance
Dry, 1 : 99...
99 : 1, Wet
Sets the reverb effect balance
d
[R]PreLEQ Fc
Low,
Mid-Low
Selects the cutoff frequency
(low or mid-low) of the low-
range equalizer
Pre HEQ Fc
High,
Mid-High
Selects the cutoff frequency
(high or mid-high) of the high-
range equalizer
e
[R]PreLEQ
Gain [dB]
–15.0...+15.0 Sets the gain of Low EQ
Pre HEQ Gain
[dB]
–15.0...+15.0 Sets the gain of High EQ
GATE
f
[G]Envelope
Select
D-mod,
Input
Switches between modulation
source control and input signal
control p.352
Src Off...Tempo
Selects the modulation source
that controls the gate when
Envelope Select is set to D-mod
p.352
g
[G]Input
Reverb Mix
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
dry and reverb sounds of the
gate control signal p.352
Threshold 0...100
Sets the gate threshold level
p.352
h [G]Polarity +, –
Switches between non-invert
and invert of the gate on/off
state
p.293
i
[G]Attack 1...100 Sets the attack time p.293
Release 1...100 Sets the release time p.293
j
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Reverb
Balance
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
LEQ
HEQ
EQ Trim
Reverb
Pre Delay
Envelope - Control
D-mod
Input
Envelope Select
Gate
Input Reverb Mix
Reverb
Gate
Gate+Dmpr
