Korg M50-88 User Manual

Mono-Mono Serial (Mono-Mono)
337

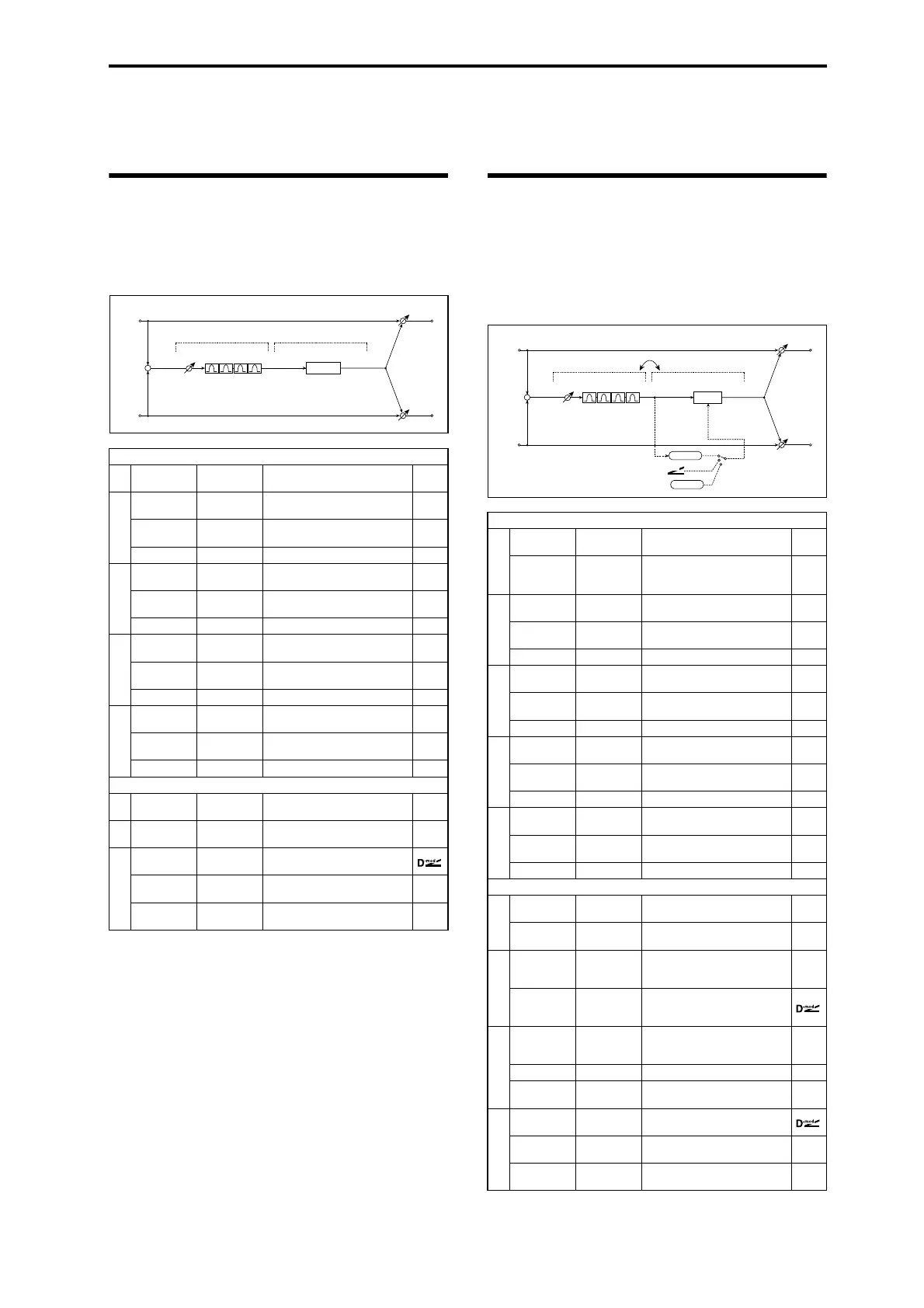

Mono-Mono Serial (Mono-Mono)
077: P4EQ - Exciter
(Parametric 4-Band EQ - Exciter)
This effect combines a mono four-band parametric equalizer
and an exciter.
078: P4EQ - Wah
(Parametric 4-Band EQ -
Wah/Auto Wah)
This effect combines a mono four-band parametric equalizer
and a wah. You can change the order of the connection.
P4EQ
a [E]Trim 0...100
Sets the parametric EQ input
level
b
[E]B1 Cutoff
[Hz]
20...1.00k
Sets the center frequency of
Band 1
Q 0.5...10.0
Sets the bandwidth of Band 1
p.294
Gain [dB] –18...+18 Sets the gain of Band 1
c
[E]B2 Cutoff
[Hz]
50...5.00k
Sets the center frequency of
Band 2
Q 0.5...10.0
Sets the bandwidth of Band 2
p.294
Gain [dB] –18...+18 Sets the gain of Band 2
d
[E]B3 Cutoff
[Hz]
300...10.00k
Sets the center frequency of
Band 3
Q 0.5...10.0
Sets the bandwidth of Band 3
p.294
Gain [dB] –18...+18 Sets the gain of Band 3
e
[E]B4 Cutoff
[Hz]
500...20.00k
Sets the center frequency of
Band 4
Q 0.5...10.0
Sets the bandwidth of Band 4
p.294
Gain [dB] –18...+18 Sets the gain of Band 4
EXCITER
f
[X]Exciter
Blend
–100...+100
Sets the intensity (depth) of the
Exciter effect p.295
g
[X]Emphasis
Frequency
0...70
Sets the frequency range to be
emphasized p.295
h
Wet/Dry
Dry,1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
Trim
+
Exciter
Parametric 4Band EQ Exciter
P4EQ
a
[E]Trim 0...100
Sets the parametric EQ input
level
Routing
P4EQ ➝ Wah,
Wah ➝ P4EQ
Changes the order of the
parametric equalizer and wah
connection
b
[E]B1 Cutoff
[Hz]
20...1.00k
Sets the center frequency of
Band 1
Q 0.5...10.0
Sets the bandwidth of Band 1
p.294
Gain [dB] –18...+18 Sets the gain of Band 1
c
[E]B2 Cutoff
[Hz]
50...5.00k
Sets the center frequency of
Band 2
Q 0.5...10.0
Sets the bandwidth of Band 2
p.294
Gain [dB] –18...+18 Sets the gain of Band 2
d
[E]B3 Cutoff
[Hz]
300...10.00k
Sets the center frequency of
Band 3
Q 0.5...10.0
Sets the bandwidth of Band 3
p.294
Gain [dB] –18...+18 Sets the gain of Band 3
e
[E]B4 Cutoff
[Hz]
500...20.00k
Sets the center frequency of
Band 4
Q 0.5...10.0
Sets the bandwidth of Band 4
p.294
Gain [dB] –18...+18 Sets the gain of Band 4
WAH
f
[W]Frequency
Bottom
0...100
Sets the lower limit of the wah
center frequency p.297
Frequency
Top
0...100
Sets the upper limit of the wah
center frequency p.297
g
[W]Sweep
Mode
Auto,
D-mod,
LFO
Selects the control from auto-
wah, modulation source, and
LFO p.297
Src Off...Tempo
Selects the modulation source
for the wah when Sweep
Mode=D-mod
h
[W]LFO
Frequency
[Hz]
0.02...20.00 Sets the speed of the LFO
Resonance 0...100 Sets the resonance amount
LPF Off, On
Switches the wah low pass filter
on and off
i
[W]Wet/Dry
Dry,1 : 99...
99 : 1, Wet
Sets the wah effect balance
Src Off...Tempo
Selects the Wet/Dry
modulation source for the wah
Amt –100...+100
Sets the Wet/Dry modulation
amount for the wah
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
Trim
+
Parametric 4Band EQ
Routing
Wah/Auto Wah
D
-mod
Envelope
Sweep Mode
D-mod
Auto
LFO
LFO
Wah
