Effect Guide
298
a: Shape
This parameter specifies the sweep curve of the wah. It
applies to all control via auto-wah, modulation source, and
LFO, and lets you adjust subtle nuances of the wah effect.
a: Mode
b: Frequency Bottom
b: Frequency Top
c: Resonance Bottom
c: Resonance Top
If Mode=Preset, this simulates a vintage wah pedal. In this
case, internally fixed values are used for Frequency Bottom/
Top and Resonance Bottom/Top, and these settings will be
ignored. The settings for Frequency Bottom/Top and
Resonance Bottom/Top are valid if Mode=Custom.

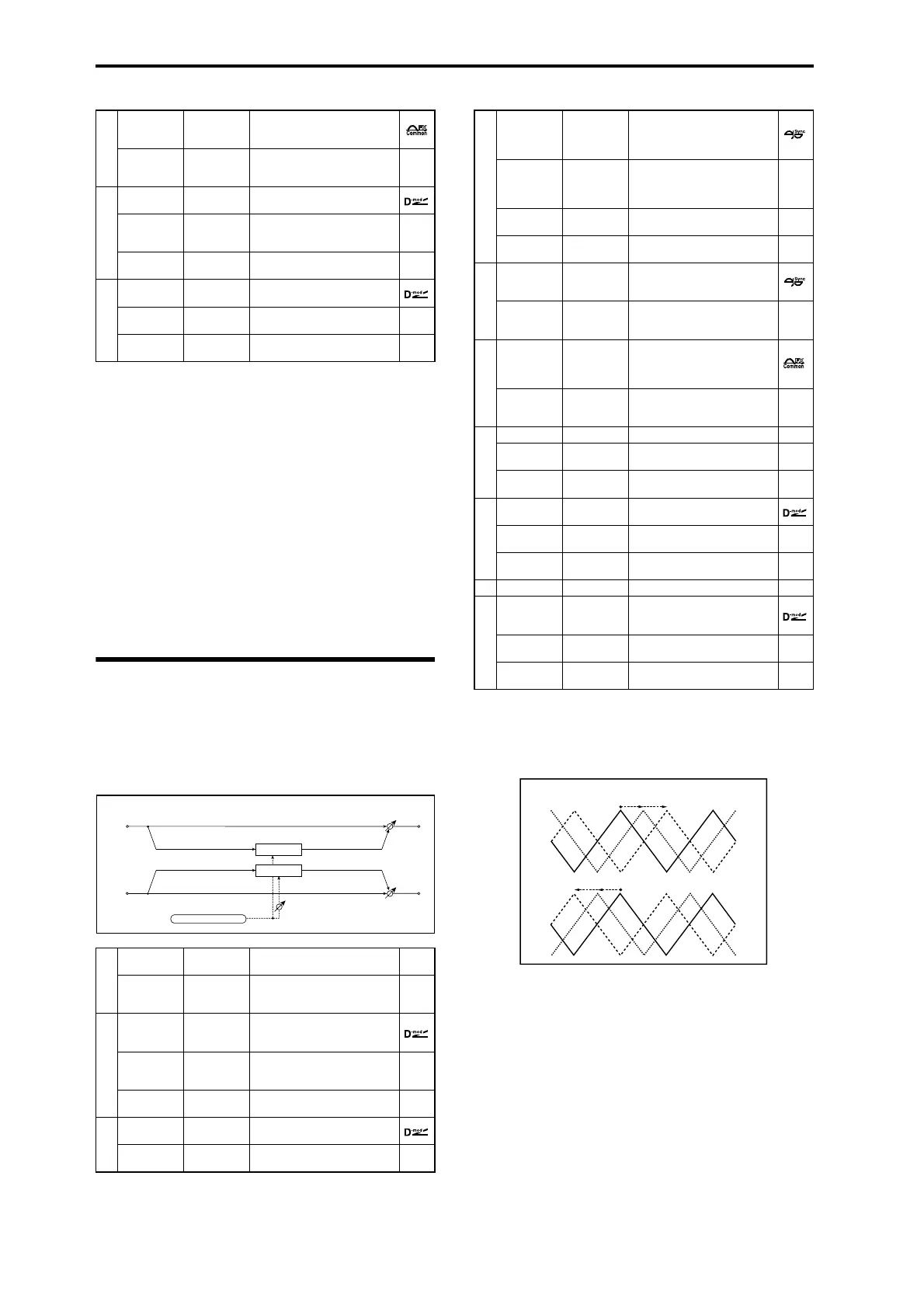

012: St. Random Filter
(Stereo Random Filter)
This stereo band pass filter uses a step-shape waveform and
random LFO for modulation. You can create a special effect
from filter oscillation.
a: LFO Phase [degree]
Offsetting the left and right phases alters how modulation is
applied to the left and right channels, creating a swelling
affect.
a: LFO Waveform
b: LFO Frequency [Hz]
c: LFO Step Freq [Hz]
When LFO Waveform is set to Step-Tri, LFO is a step-shape,
triangle waveform. The LFO Frequency parameter sets the
original triangle waveform speed. Changing the LFO Step
Freq parameter enables you to adjust the width of the steps.
When LFO Waveform is set to Random, the LFO Step Freq
parameter uses a random LFO cycle.
h
LFO Type
Individual,
Common1,
Common2
Selects either (individual) LFO,
Common FX LFO1, or Common
LFO2 p.297
CmnLFO
Offset [deg]
–180...+180
Sets the phase offset when
Type = Common 1 or Common
2p.297
i
Output Level 0...100
Sets the output level of the
effect sound
Src Off...Tempo
Selects the modulation source
that will control the effect
output level
Amt –100...+100
Sets the modulation amount of
the effect output level
j
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
a
LFO
Waveform
Step-Tri,
Random
Selects the LFO Waveformp.298
LFO Phase
[degree]
–180...+180
Sets the LFO phase difference
between the left and right
p.298
b
LFO
Frequency
[Hz]
0.02...20.00 Sets the speed of the LFO p.298
Src Off...Tempo
Selects the modulation source
used for both LFO speed and
step speed
Amt
–20.00...
+20.00
Sets the modulation amount of
LFO speed
c
LFO Step
Freq [Hz]
0.05...50.00
Sets the LFO step speed (speed
that changes in steps p.298
Amt
–50.00...
+50.00
Sets the modulation amount of
LFO step speed
Filter
Left
Right
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
Filter
LFO Phase
LFO: Step-Tri/Random
d
MIDI Sync Off, On
When this is on, the LFO speed
is set by BPM, Base Note, and
Times, instead of Frequency
p.297
BPM
MIDI,
40.00...
300.00
MIDI syncs to the system
tempo; 40–300 sets the tempo
manually for this individual
effect p.299
Base Note ...
Selects the type of notes that
specify the LFO speed p.299
Times x1...x32
Sets the number of notes that
specify the LFO speed p.299
e
Step Base
Note
...
Selects the type of notes to
specify the LFO step speed
p.299
Times x1...x32
Sets the number of notes to
specify the LFO step speed
p.299
f
LFO Type
(Step)
Individual,
Common1,
Common2
Selects either (individual) LFO,
Common FX LFO1, or Common
LFO2 to control the LFO step
speed p.297
CmnLFO
Offset [deg]
–180...+180
Sets the phase offset when
Type = Common 1 or Common
2p.297
g
Manual 0...100 Sets the filter center frequency
Src Off...Tempo
Selects the modulation source
for the filter center frequency
Amt –100...+100
Sets the modulation amount
for the filter center frequency
h
Depth 0...100
Sets the modulation depth of
filter center frequency
Src Off...Tempo
Selects the modulation source
of filter modulation
Amt –100...+100
Sets the modulation amount of
filter modulation
iResonance 0...100 Sets the resonance amount
j
Wet/Dry
–Wet...
–1 : 99, Dry,
1 : 99...Wet
Sets the balance between the
effect and the dry input
p.299
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount
for Wet/Dry
0 +90
+180 [degree]
0 [degree]
–90
–180
LFO Phase
