The effect chain
The EQ and pedal (“stompbox”) effect are placed before the amp model and
cabinet, and the modulation and ambient (reverb/echo/delay) are placed af-
ter the cabinet model. Finally, a limiter takes care of dynamics.
Modulation, delay, echo and reverb effects are placed after the amp module,
since they are effects that are usually added after capturing the signal from
the cabinet with the microphones.

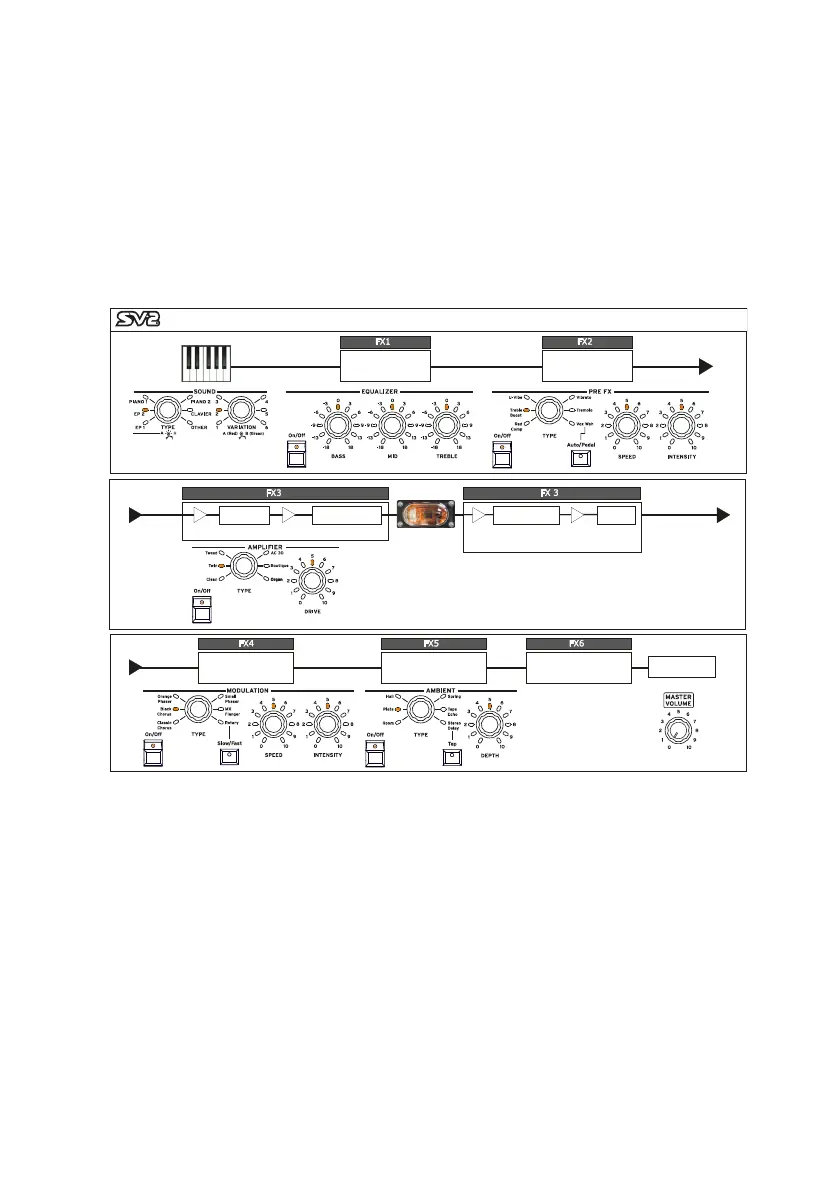

SIGNAL ROUTING
EQ PRE FX
MODULATION AMBIENT TOTAL FX
Stereo Limiter
Stereo Mastering Limiter
OUTPUTS
SOUND
PRE AMP
VOLUME VOLUME POWER
AT T.
PROGR
LV L
POWER AMP
VALVE
CABINET NR
The effect chain cannot be modified. However, each section can be individ-
ually turned on or off. Use the On button next to each effect to turn the
corresponding section on or off.
All the effects are applied to the sound as a whole, including all the programs
whose FX Bypass switch is set to off in the Sound page.
