KVH Industries 1775 IMU User Manual

56-0298 Rev B
This document contains proprietary information of KVH Industries, Inc. and neither this document nor said proprietary information shall be
published, reproduced, copied, disclosed, or used for any purpose without the express written permission of a duly authorized KVH representative.
Page 75 of 77
12.3 Default Final Output Filter Responses
12.3.1 Chebyshev

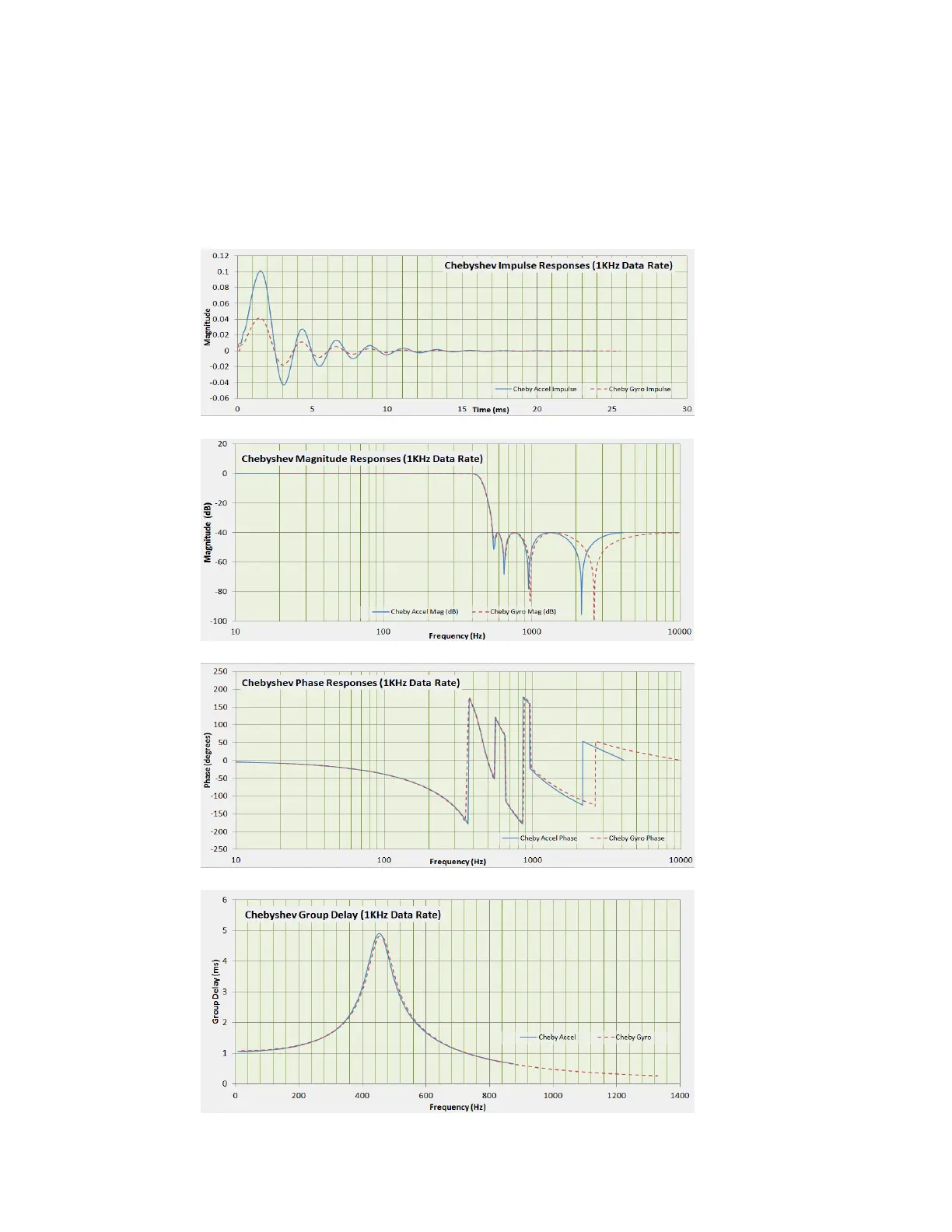

Figure 12-2 shows the plotted impulse, magnitude, phase responses and group delays of the
default Chebyshev (type II) filter at a 1000 Hz data rate; =FILTTYPE,<A|G>,CHEBY,8,0.01,545
N= 8
th
order, GSTOP = 0.01 (-40dB) FSTOP = 545 Hz
Figure 12-2: Chebyshev Responses
