1775 IMU Technical Manual
10
Wiring the IMU
Wiring the IMU
Use Figure 8 as a guide to connect the IMU to your application. For
more information, refer to “Appendix C: Electrical Signaling ICD” on
page 31.

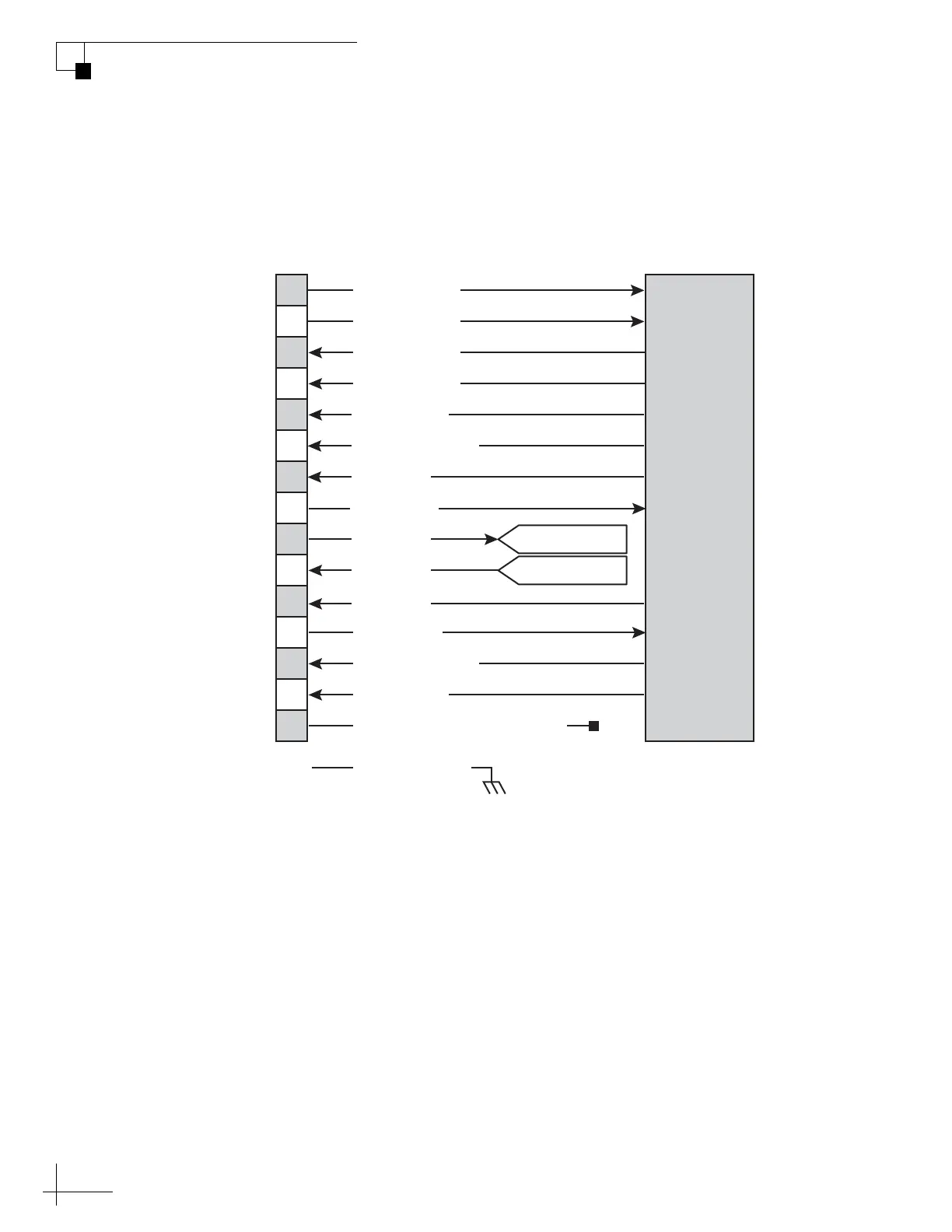

Figure 8: Wiring Diagram
MSync (+)
Power Return
9-36 VDC
Config-RST-In (+)
EXT-RST (+)
Signal-GND (Do Not Connect)
Customer
Interface
(RS422)
RS422-TX (+)
RS422-TX (–)
RS422-RX (–)
RS422-RX (+)
Power (–)
TOV-Out (+)
Case
(Shield)
Chassis Ground
EXT-RST (–)
MSync (–)
TOV-Out (–)
Config-RST-In (–)
Power (+)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Pin
