2LW/2LX
1-5-7

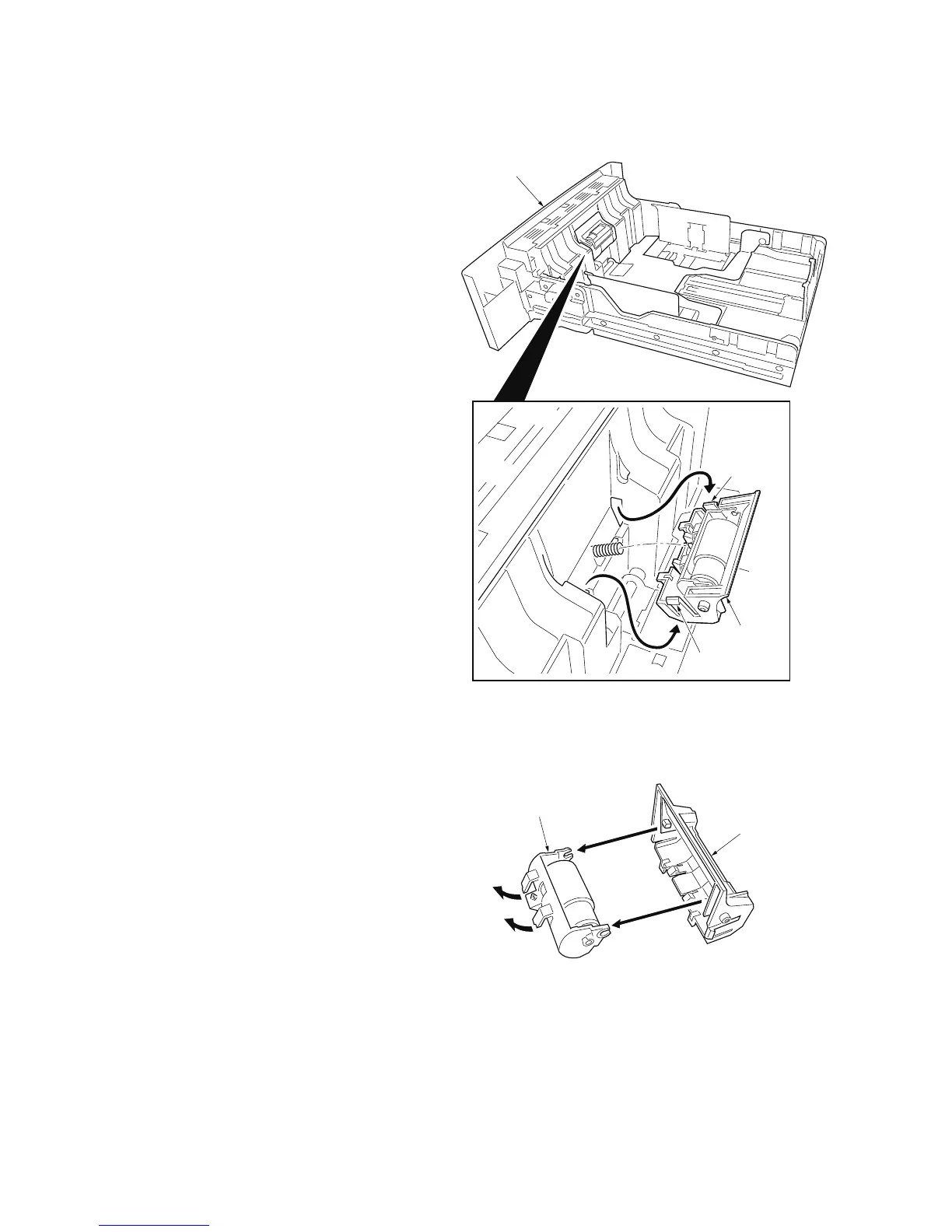

(2) Detaching and refitting the retard roller assembly
Procedure
1. Remove the cassette.
2. Unhook two hooks and then remove the
retard guide.
Figure 1-5-8
3. Remove the retard holder (roller) from
the retard guide.
4. Check or replace the retard roller and
refit all the removed parts.
NOTE:
When the periodic maintenance
(replacing the maintenance kit, see
page 2-4-4), perform maintenance
mode.:
U251 Clearing the maintenance count
(see page 1-3-26)
Figure 1-5-9
Cassette
Retard
guide
Hook
Hook
Retard guide
Retard holder
(Retard roller assembly)
To Next Page
