2LW/2LX
2-1-5
2-1-2 Drum section
The drum unit includes a photoconductive drum, eraser lamp, cleaning blade and, a main charger unit. The
drum unit is removable with the main charger unit.
.

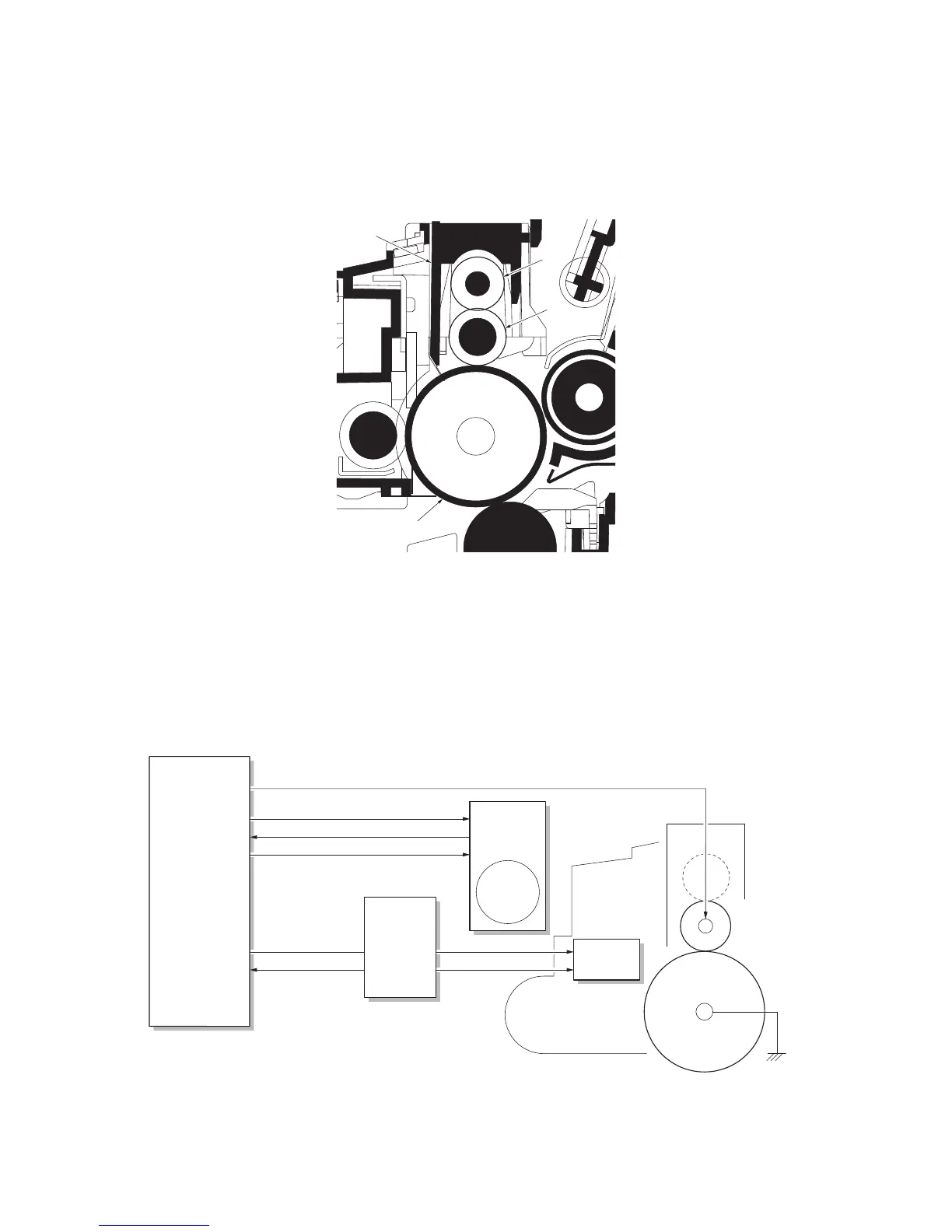

Figure 2-1-7 Drum section
Figure 2-1-8 Drum section block diagram
1
2
3
4
1. Drum
2. Main charger case
3. Charger cleaning roller
4. Main charger roller
TB2
Main high voltage output (DC + AC)
EPWB
CPWB-L
3
4
5
YC11-3
YC11-4
YC11-5
YC504-10
YC504-9
DMOTRDYN
DMOTCLK
DMOTONN
EECLK
EEDIO
DRPWB
Drum
Ground
Main
charger
roller
DRM
