Kyocera FS-3040MFP

2LW/2LX
1-1-5
1-1-2 Parts names

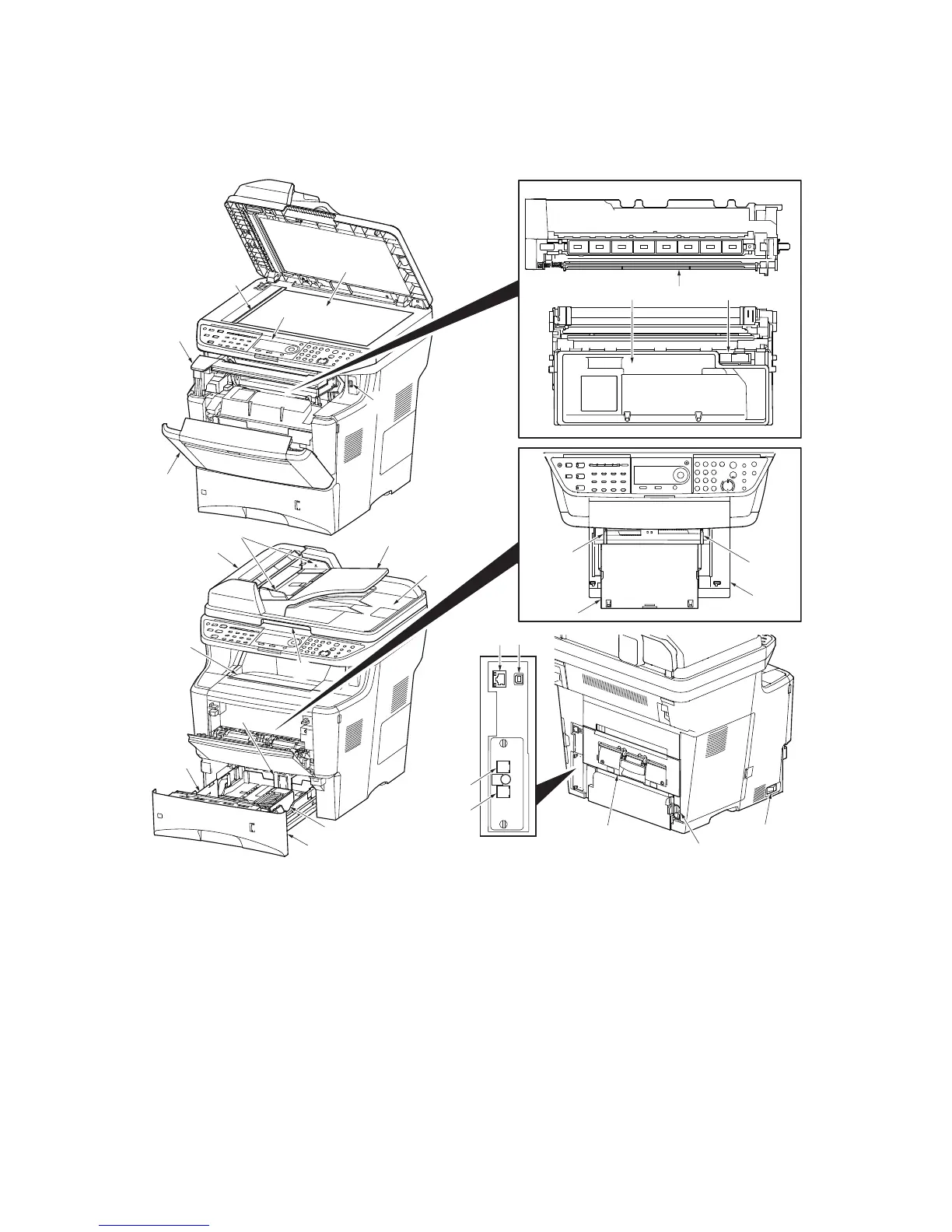

(1) Overall
Figure 1-1-1
27
8
7
1
2
4
5
9
10
13
14
14
18
23
20
22
21
24
26
25
17
16
15
3
6
11
12
19
12
28
1. Platen (contact glass)
2. Original size Indicator plate
3. Operation panel
4. Front upper cover
5. Front cover
6. USB Interface connector (front)
7. Drum unit
8. Lock lever
9. Toner container
10. Top tray
11. Paper length guide
12. Paper width guides
13. Cassette
14. Paper width guides (MP tray)
15. MP (Multi-Purpose) tray
16. MP tray extension
17. Rear unit
18. Main power switch
19. Power cord connector
20. USB Interface connector (rear)
21. Network Interface connector
22. Line connector (L1) *
23. Tel connector (T1) *
24. DP top cover
25. Original width guides
26. Original table
27. Original eject table
28. Opening handle
* 4in1 model (with FAX) only
