2LW/2LX
2-2-6
(4) Other electrical components

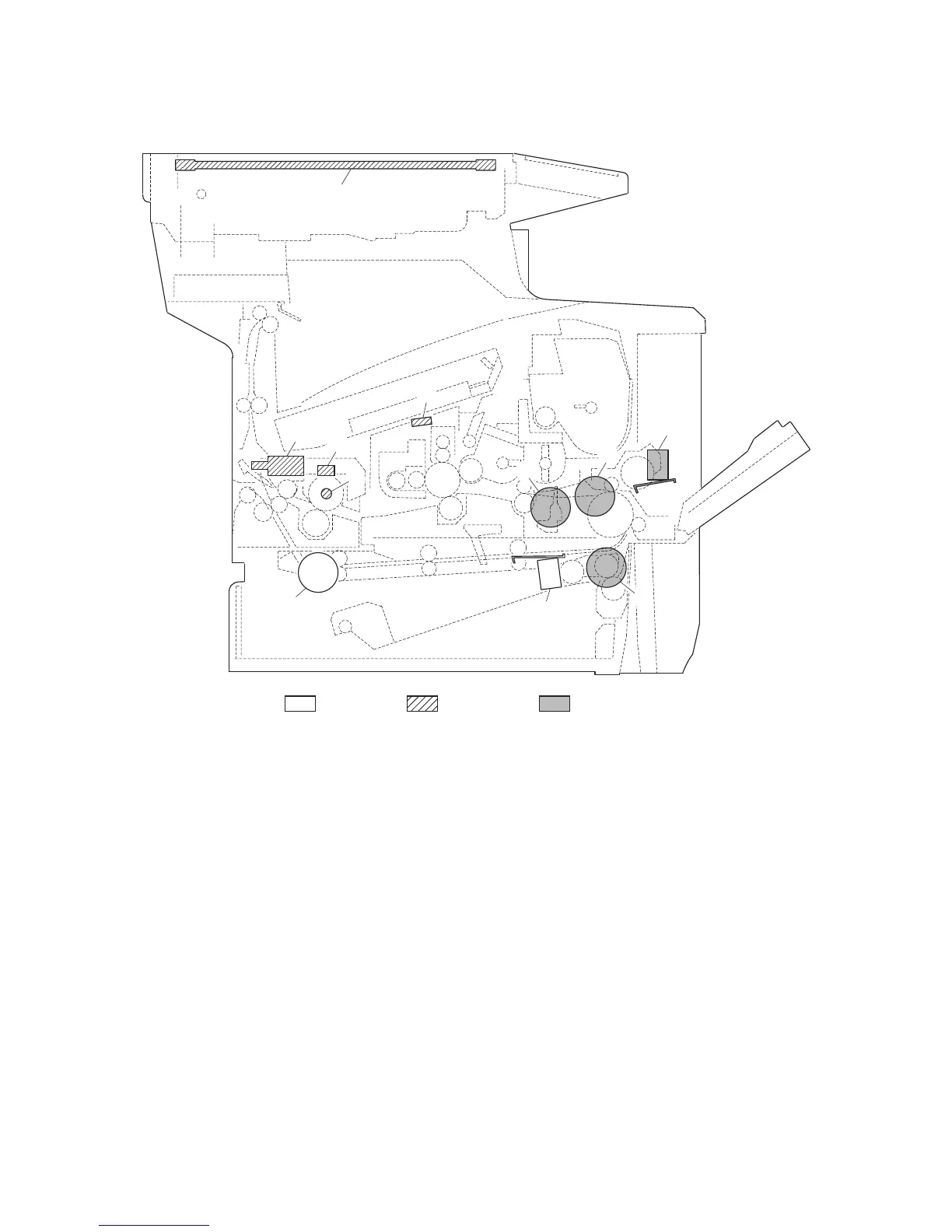

Figure 2-2-4 Other electrical components
1. Paper feed clutch (PFCL) ..................... Controls the paper cassette paper feed.
2. Registration clutch (RCL)...................... Controls the secondary paper feed.
3. Middle feed clutch (MCL) ...................... Controls the paper conveying at the conveying section.
4. Duplex clutch (DUCL) ........................... Controls the paper conveying at the duplex conveying section.
5. MP solenoid (MPSOL) .......................... Controls the primary paper feed from the MP tray.
6. Developing solenoid (DEVSOL)............ Controls the developing unit drive.
7. Feedshift solenoid (FSSOL).................. Switches the output stack between face up and face down.
8. Cleaning lamp (CL) ............................... Eliminates the residual electrostatic charge on the drum.
9. Fuser heater (FH) ................................. Heats the heat roller.
10. Fuser thermostat (FTS)......................... Shuts off the power source to the fuser heater lamp when the heat
roller reaches extremely high temperature.
11. Exposure lamp (EL) .............................. Exposes originals.
1
4
11
10
9
8
7
5
3
2
6
Machine inside
Machine left
Machine right
