Kyocera FS-3040MFP

2LW/2LX
2-2-5
(3) Motors

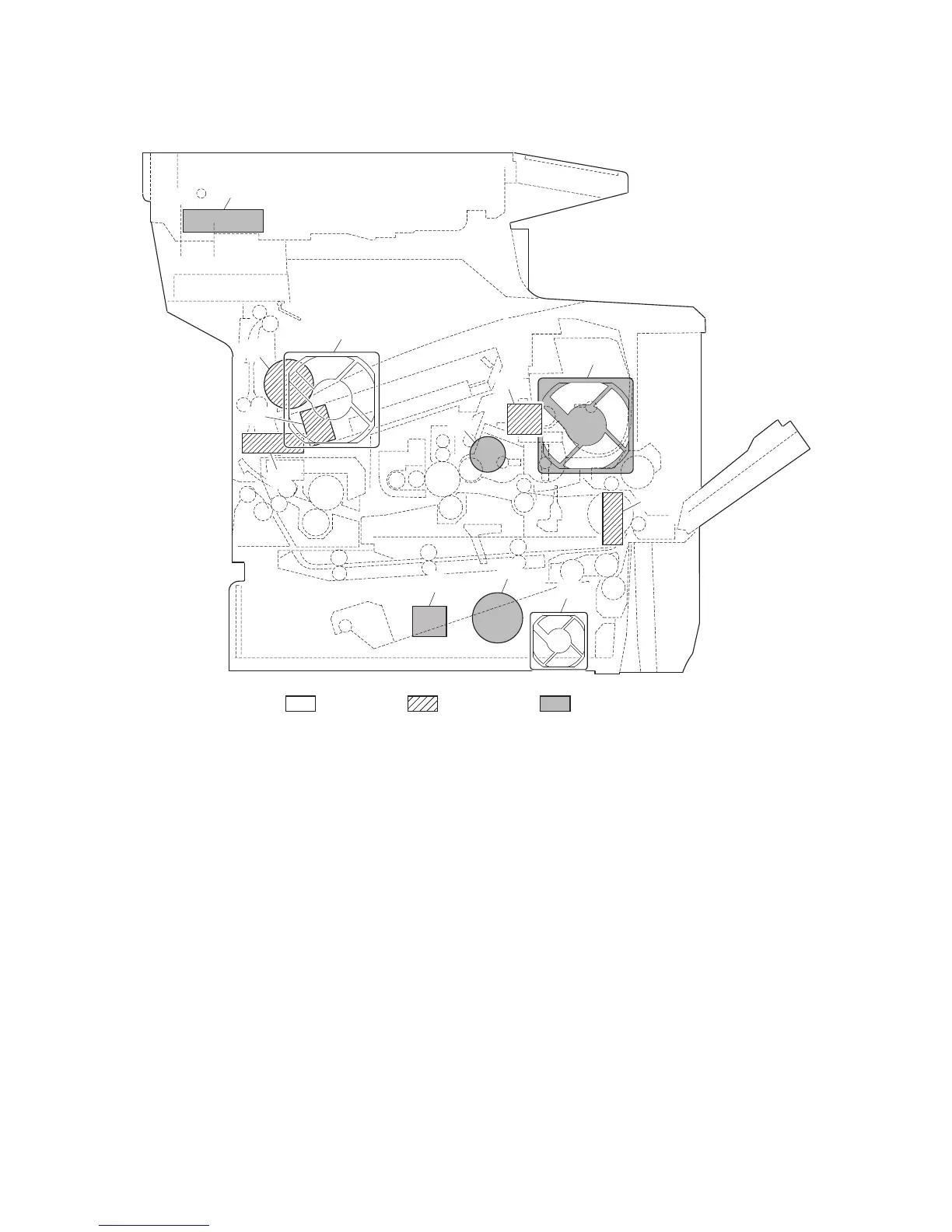

Figure 2-2-3 Motors
1. Main motor (MM)................................... Drives the paper feed/conveying section and fuser unit.
2. Lift motor (LM)....................................... Operates the bottom plate in the paper cassette.
3. Drum motor (DRM) ............................... Drives the drum unit and developing unit.
4. Toner motor (TM) .................................. Replenishes the developing unit with toner.
5. Switchback motor (SBM) ...................... Drives paper eject (switchback) section.
6. Polygon motor (PM) .............................. Drives the polygon mirror.
7. Right fan motor (RFM) .......................... Cools the interior of machine.
8. Left fan motor (LFM) ............................. Cools the interior of machine.
9. Power source fan motor (PSFM) .......... Cools the power source unit.
10. Feed fan motor (FFM)........................... Cools the paper feed conveying section and duplex conveying
section.
11. Eject fan motor (EFM)........................... Disperses steam.
12. ISU motor (ISUM) ................................. Drives the ISU.
7
8
9
5
6
3
1
10
2
4
11
12
Machine inside
Machine left
Machine right
