2LW/2LX
1-5-43
1-5-10 Others
(1) Detaching and refitting the paper feed drive unit
Procedure
1. Remove the cassette.
(See page 1-5-6)
2. Remove the developing unit.
(See page 1-5-25)
3. Remove the right cover.
(See page 1-5-3)

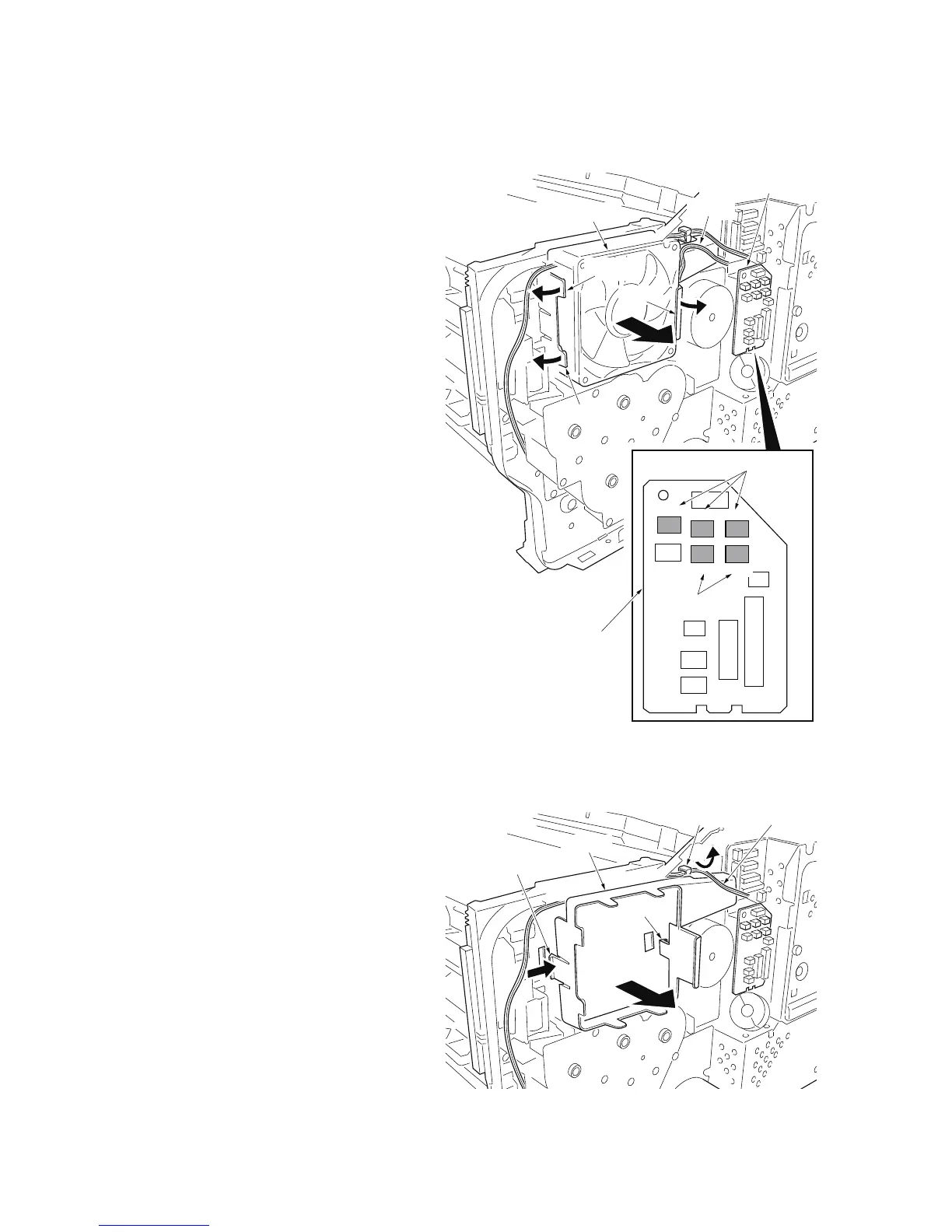

4. Remove five connectors from the con-
nect-R PWB.
5. While opening the one hook and then
remove the wire.
6. While opening three hooks and then
remove the right fan motor.
Figure 1-5-65
7. Remove two hooks and then remove
the duct.
8. Remove wire from the clamp.
Figure 1-5-66
YC6
YC5
YC7
YC10
YC11
Connectors
Connect-R PWB
Right fan motor
Wire
Hook
Hook
Hook
Connectors
Connect-R PWB
To Next Page
