Kyocera FS-3040MFP

2LW/2LX
2-1-20
2-1-9 Duplex conveying section
Duplex conveying section consists of conveying path which sends the paper sent from the eject/rear unit sec-
tion to the paper feed/conveying section when duplex printing.

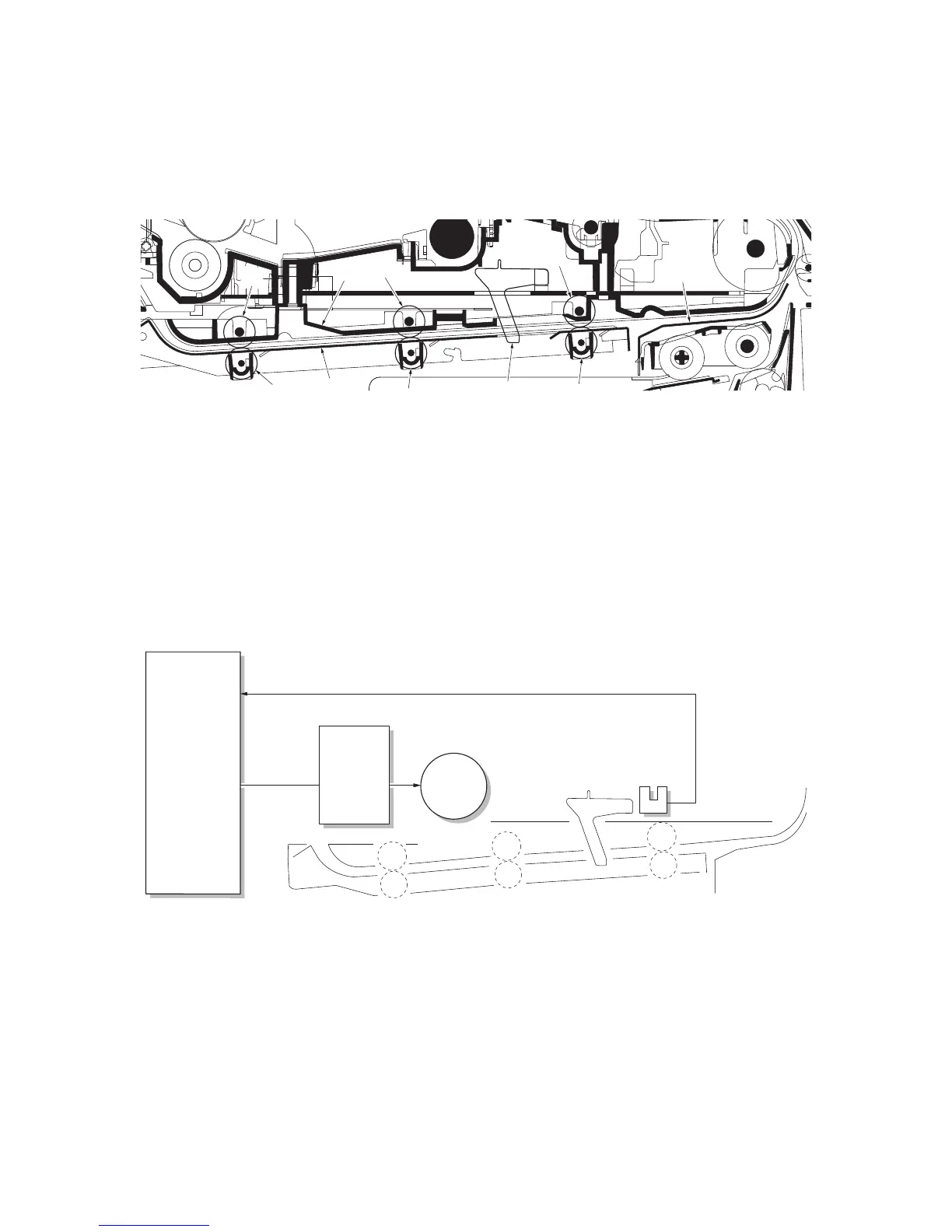

Figure 2-1-24 Duplex conveying section
Figure 2-1-25 Duplex conveying section block diagram
4
1
1
2
3
1
6
2
2
5
1. DU roller
2. DU feed pulley
3. DU base
4. DU lower guide
5. Actuator (duplex jam sensor)
6. Feed upper guide
YC502-2
EPWB
DUDRN
DUCL
CPWB-R
DUJS
