(3) Detaching and refitting the DP forwarding pulley assembly and DP separation pad
assembly.
Procedure
1. Open the DP top cover.
2. Unlatch the lock lever and slide the
shaft.

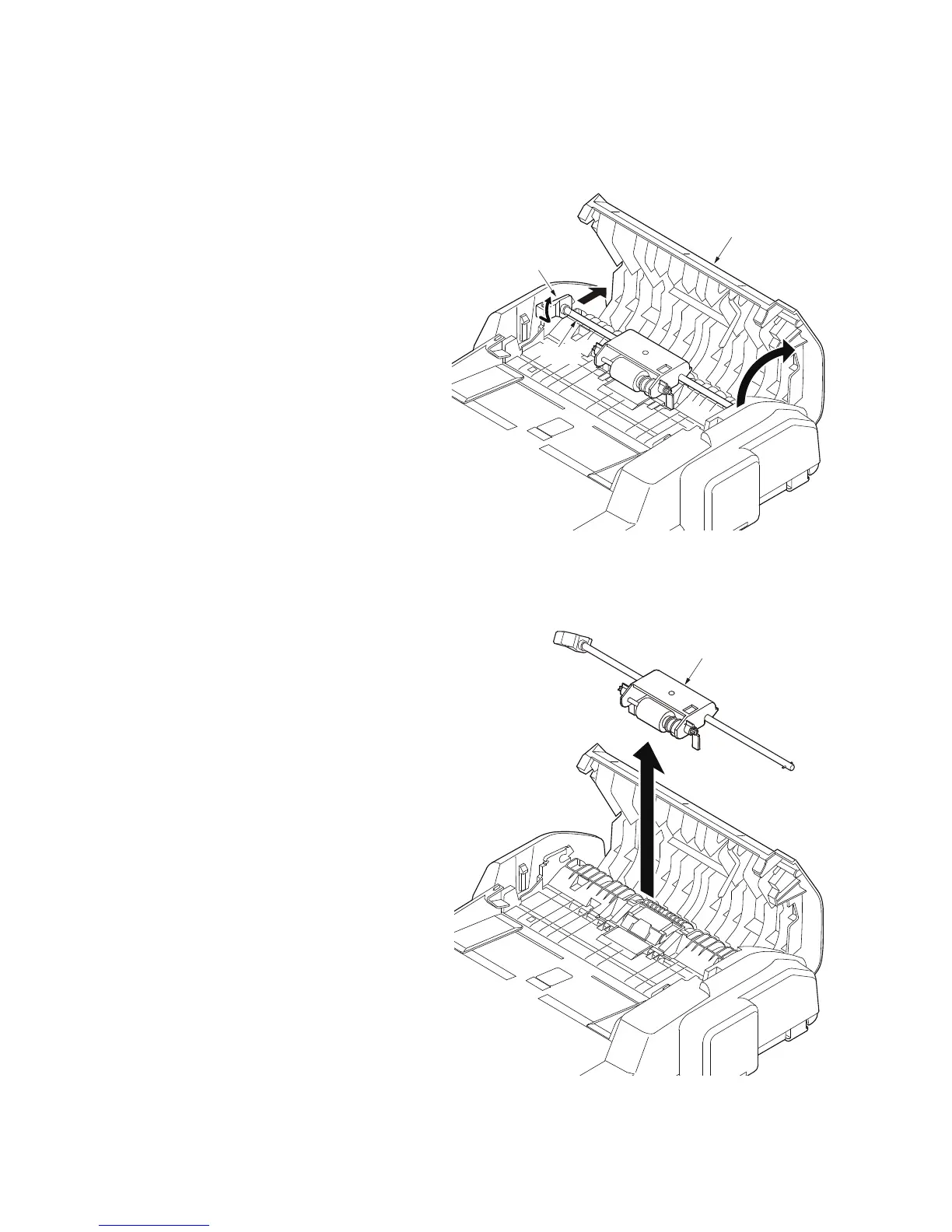

Figure 1-5-73
3. Remove the DP forwarding pulley
assembly.
Figure 1-5-74
DP top cover
Lock lever
Shaft
DP forwarding pulley assembly
