(3) Paper conveying section
Paper conveying section consists of the parts shown in the following illustration and conveys papers from the
paper cassette or the MP tray to the transfer/separation section when papers are fed. Paper by feeding or
refeeding is conveyed by the middle roller to the position where the registration sensor (RS) is turned on, and
then sent to the transfer/separation section by the upper registration roller and lower registration roller.

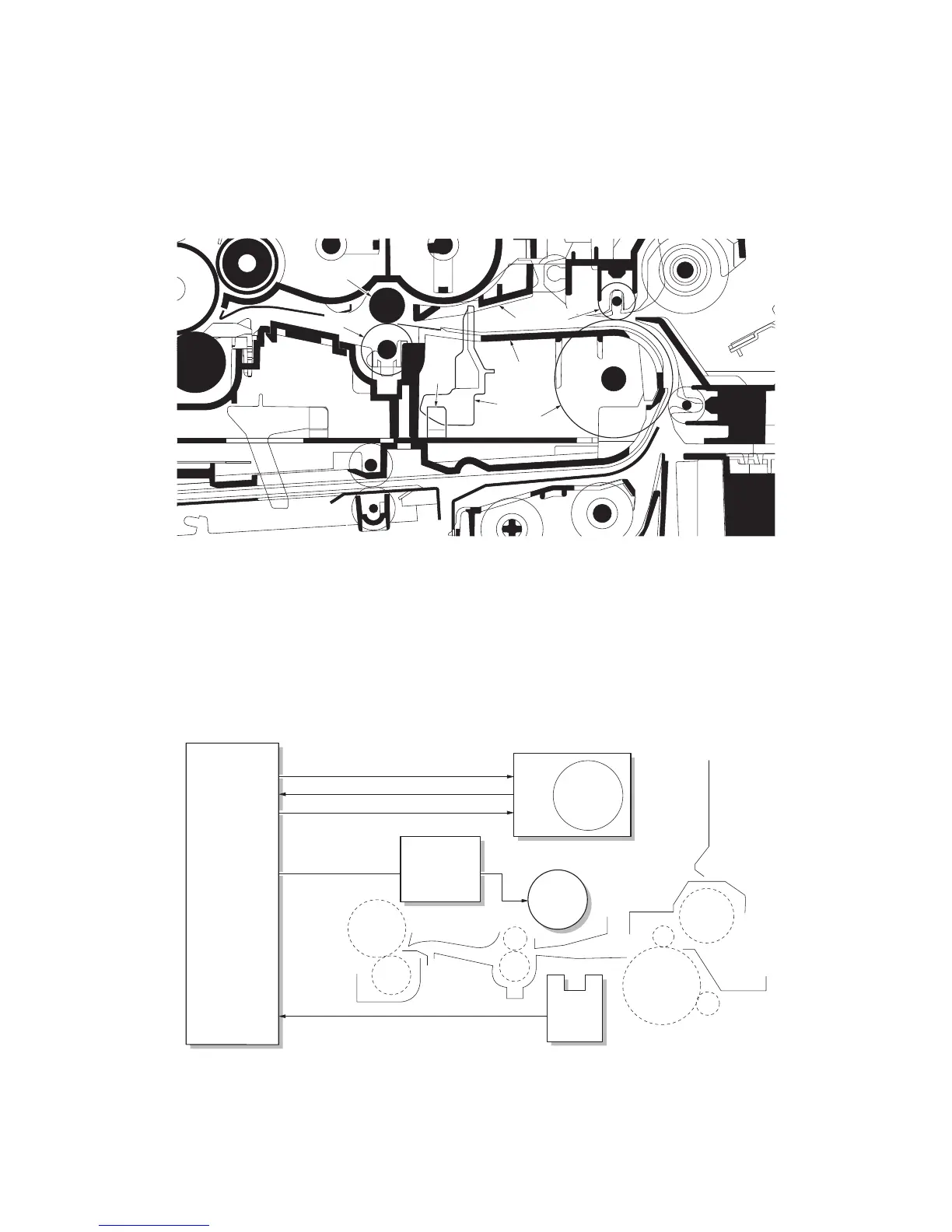

Figure 2-1-5 Paper conveying section
Figure 2-1-6 Paper conveying section block diagram
8
6
5
3
1
4
2
7
1. Middle roller
2. Feed DU pulley
3. Feed frame
4. Registration upper guide
5. Registration sensor (RS)
6. Actuator (registration sensor)
7. Lower registration roller
8. Upper registration roller
3
4
5
YC501-3
YC501-4
YC501-5
YC502-7
EPWB
CPWB-R
MM
RCL
MMOTONN
MMOTRDYN
MMOTCLK
REGDRN
RS
