2-1-5 Transfer/Separation section
The image developed by toner on the drum is transferred onto the paper because of the electrical attraction
between the toner itself and the transfer roller. The transfer roller is negatively biased so that the positively
charged toner is attracted onto the paper while it is pinched by the drum and the transfer roller.

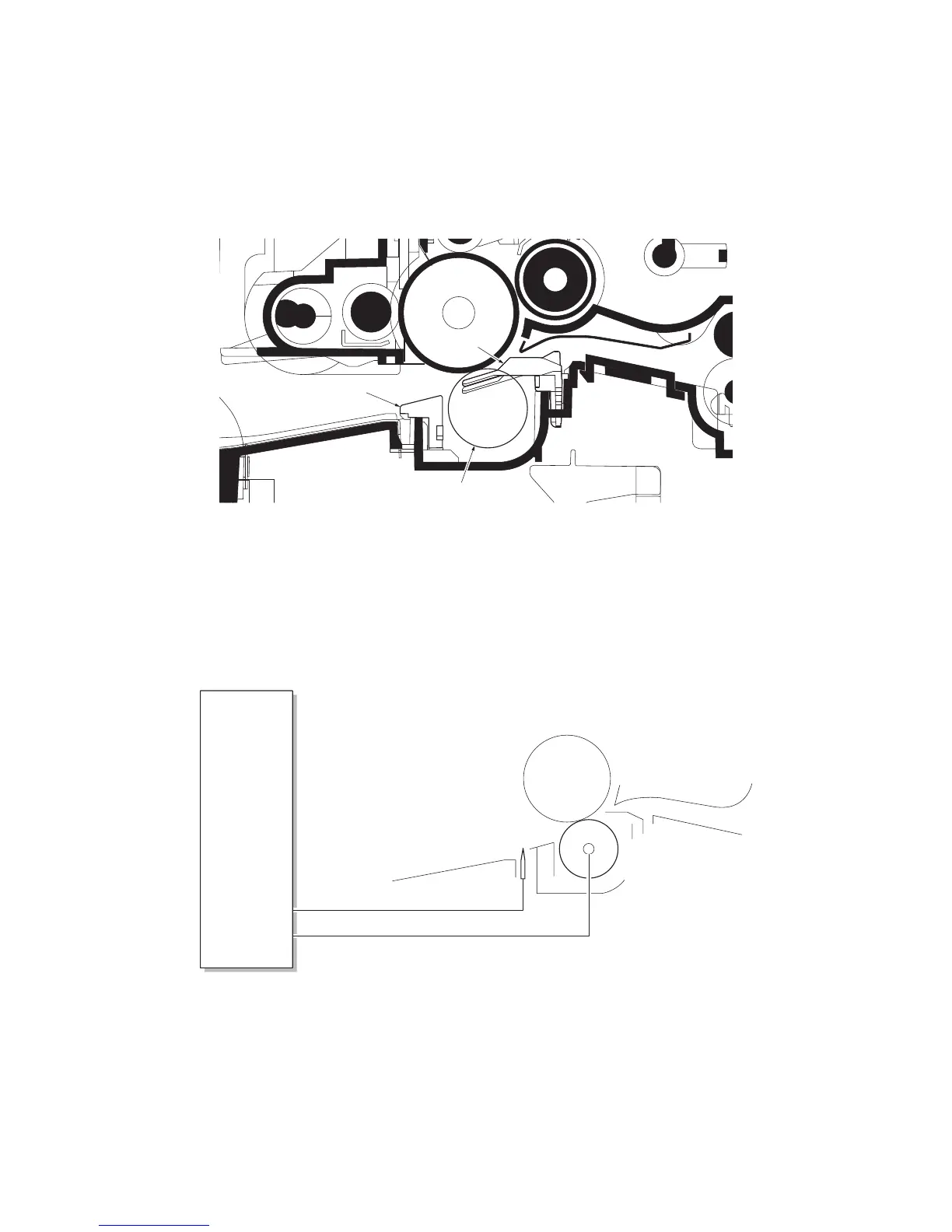

Figure 2-1-16 Transfer/Separation section
Figure 2-1-17 Transfer/Separation section block diagram
1
3
2
1. Transfer roller
2. Paper chute guide
3. Separation brush
EPWB
Transfer
roller
Separation
brush
Transfer bias
Separation bias
