2LW/2LX
2-1-18
2-1-8 Eject/Rear unit section
Eject/Rear unit section transports the paper which passed the fuser unit towards the top tray, face up tray or
duplex conveying section.

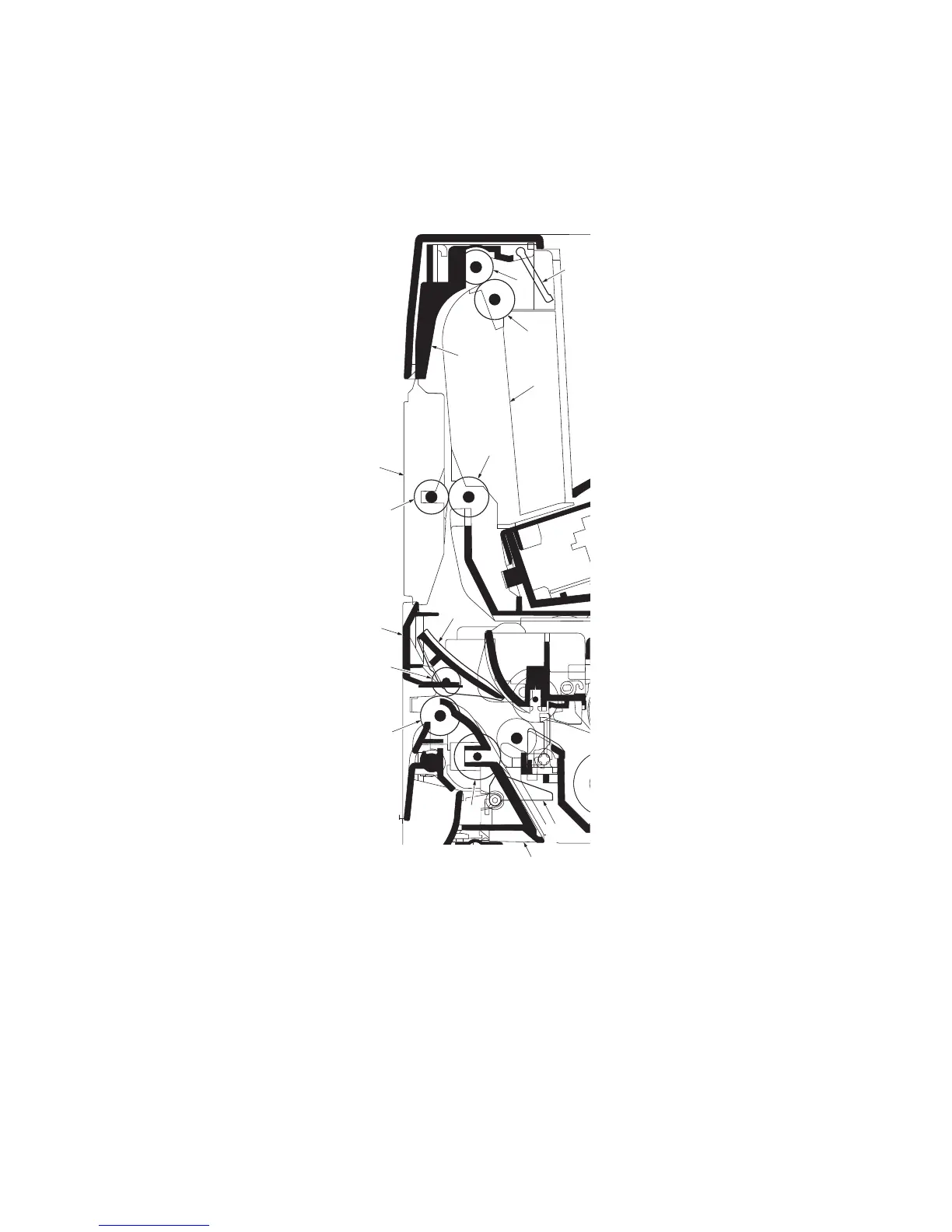

Figure 2-1-22 Eject/Rear unit section
14
13
3
2
1
7
8
9
10
15
11
12
4
5
6
1. Face down upper roller
2. Eject FD pulley
3. Actuator (paper full sensor)
4. FD cover
5. Feed FD pulley
6. Face down lower roller
7. DU guide
8. Feed DU pulley
9. Face up roller
10. Eject FU pulley
11. Face up guide
12. Actuator (duplex sensor)
13. Vertical guide
14. Paper eject guide
15. Rear cover
