Kyocera FS-3040MFP

2LW/2LX
1-5-27
1-5-7 Transfer/separation section
(1) Detaching and refitting the transfer roller and separation brush unit
Procedure
1.
Remove the developing unit.
(See page 1-5-25)
2.
Remove the drum unit .
(See page 1-5-26)

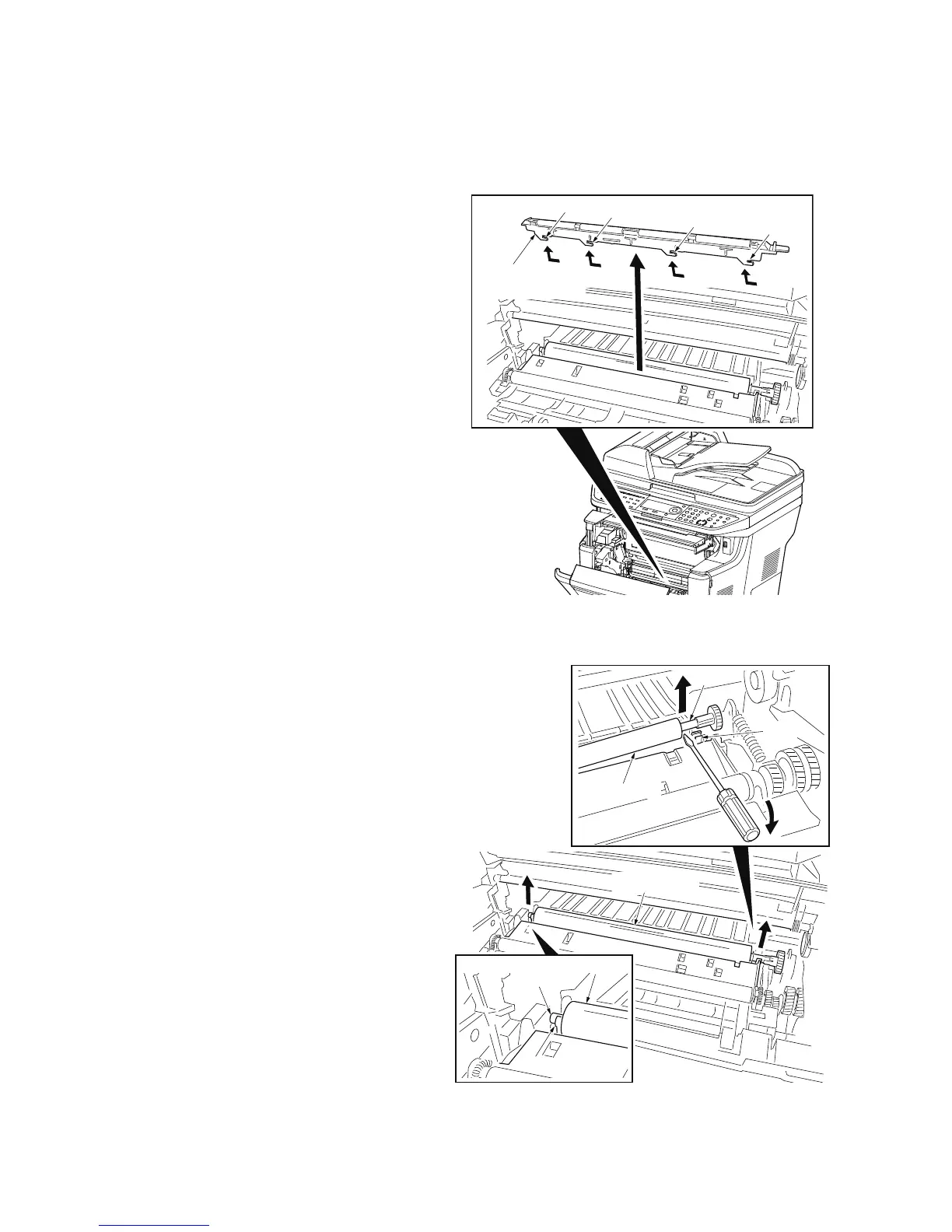

3. Slide the paper chute guide and unhook
the hooks.
4. Remove the paper chute guide.
Figure 1-5-43
5. Remove the transfer roller’s shaft from
the both bushes.
Figure 1-5-44
Paper chute guide
Hook
Hook
Hook
Hook
Transfer roller
Bush
Shaft
Shaft
Transfer roller
Transfer roller
Bush
