2LW/2LX
1-5-30
1-5-9 PWBs
(1) Detaching and refitting the engine PWB
Procedure
1. Remove the developing unit.
(See page 1-5-25)
2. Remove the drum unit.
(See page 1-5-26)
3. Remove the right cover and left
cover.(See page 1-5-3)
4. Remove the PSU fan motor.
(See page 1-5-37)
5. Stand the main body front side up.
6. Remove five screws and then remove
the bottom plate1.
7. Remove two screws and then remove
the bottom plate 2.

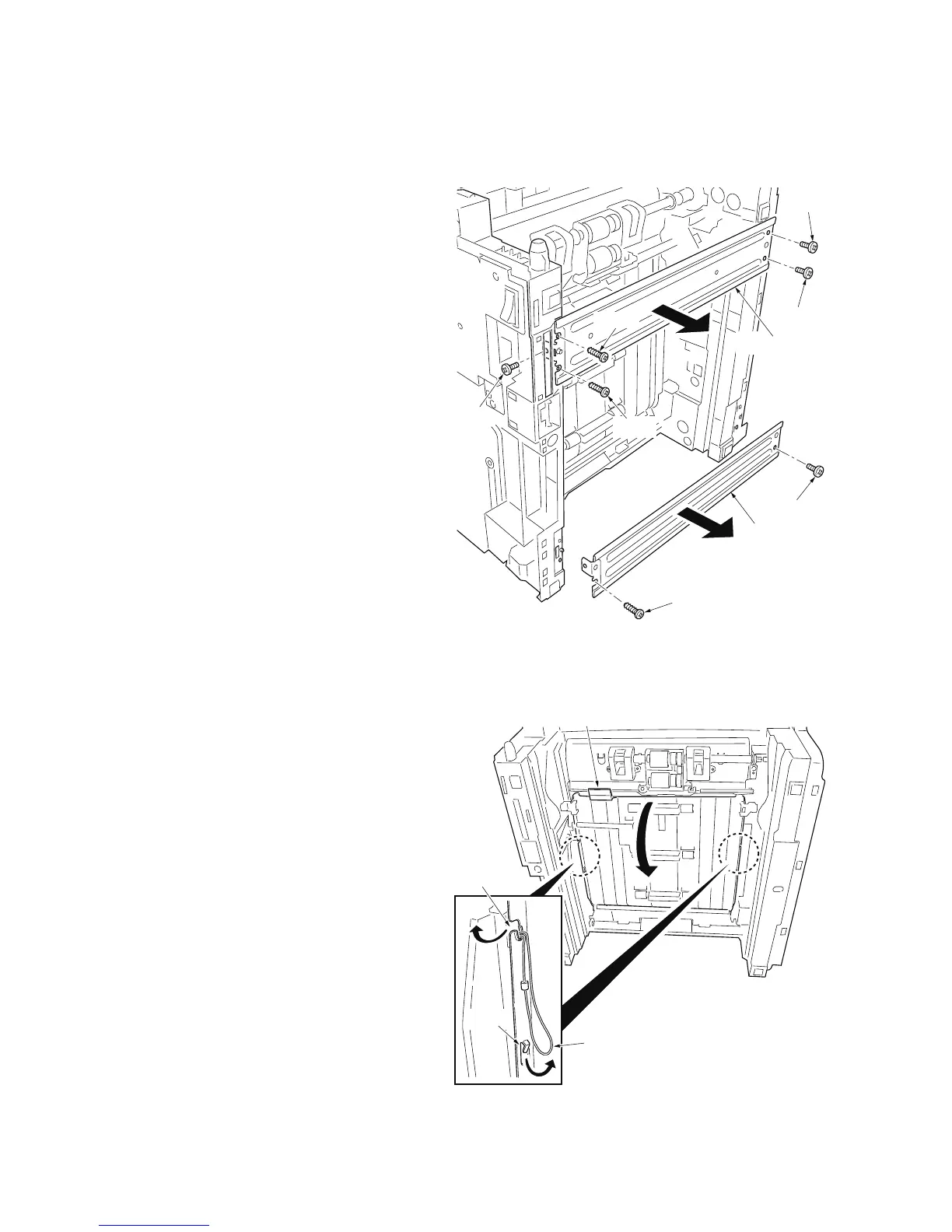

Figure 1-5-47
8. Remove two wires from the hooks and
notches.
9. Open the DU guide (duplex cover).
Figure 1-5-48
Bottom plate 1
Bottom plate 2
Screw
Screw
Screw
Screw
Screw
Screw
Screw
(M3)
Wire
Hook
Notch
DU guide (duplex cover)
To Next Page
