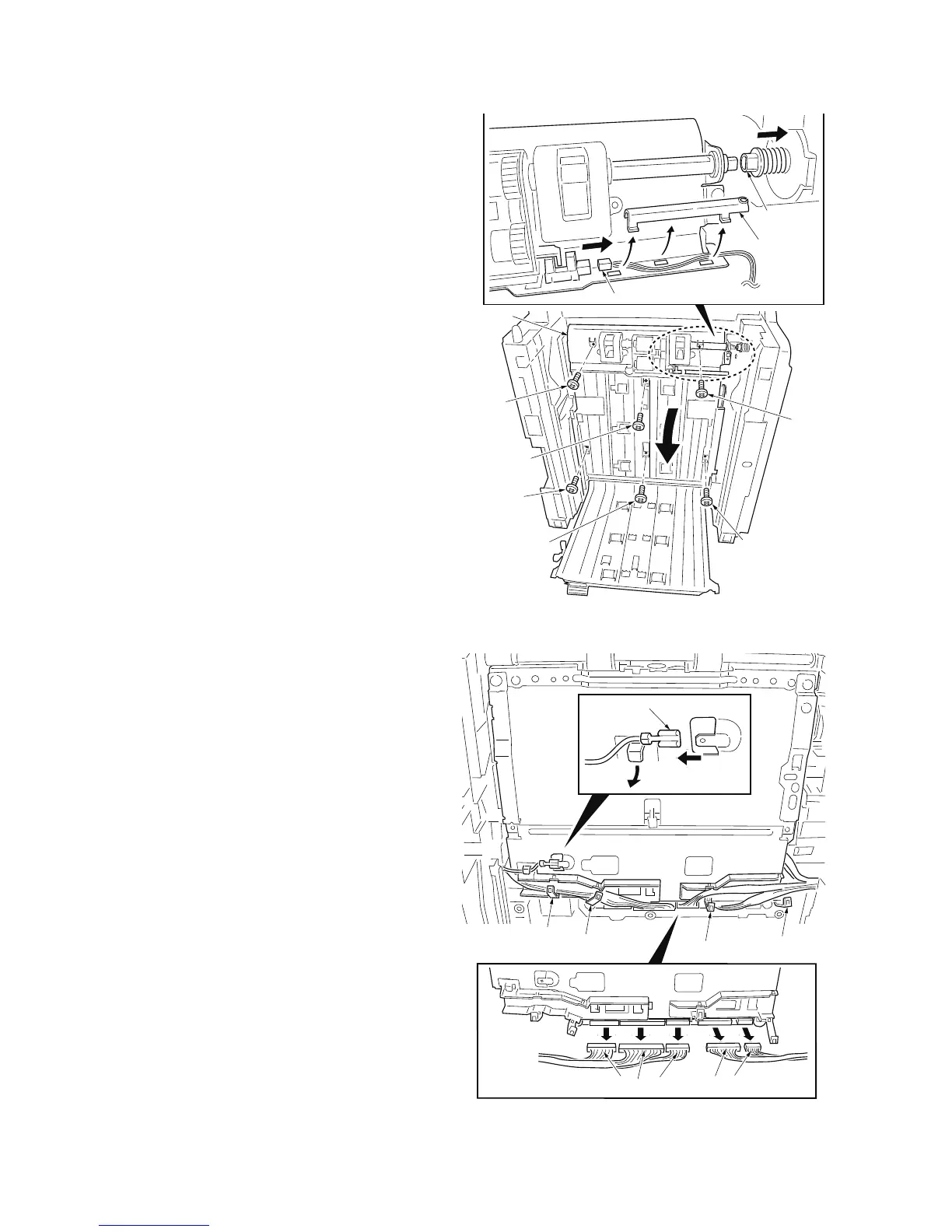

10. Remove the cord cover.
11. Remove the connector.
12. Detach the joint.
13. Remove the six screws and then
remove the DU base.
Figure 1-5-49
14. Release four snaps.
15. Remove one tab.
16. Remove five connectors.
Figure 1-5-50
Screw
DU base
Joint
Connector
Cord cover
Screw
Screw
Screw
Screw
Screw
Snap
Snap
Snap
Connectors
Connectors
Tab
Snap
