Kyocera FS-3040MFP - Page 174

2LW/2LX
1-5-32
17. Remove four screws.

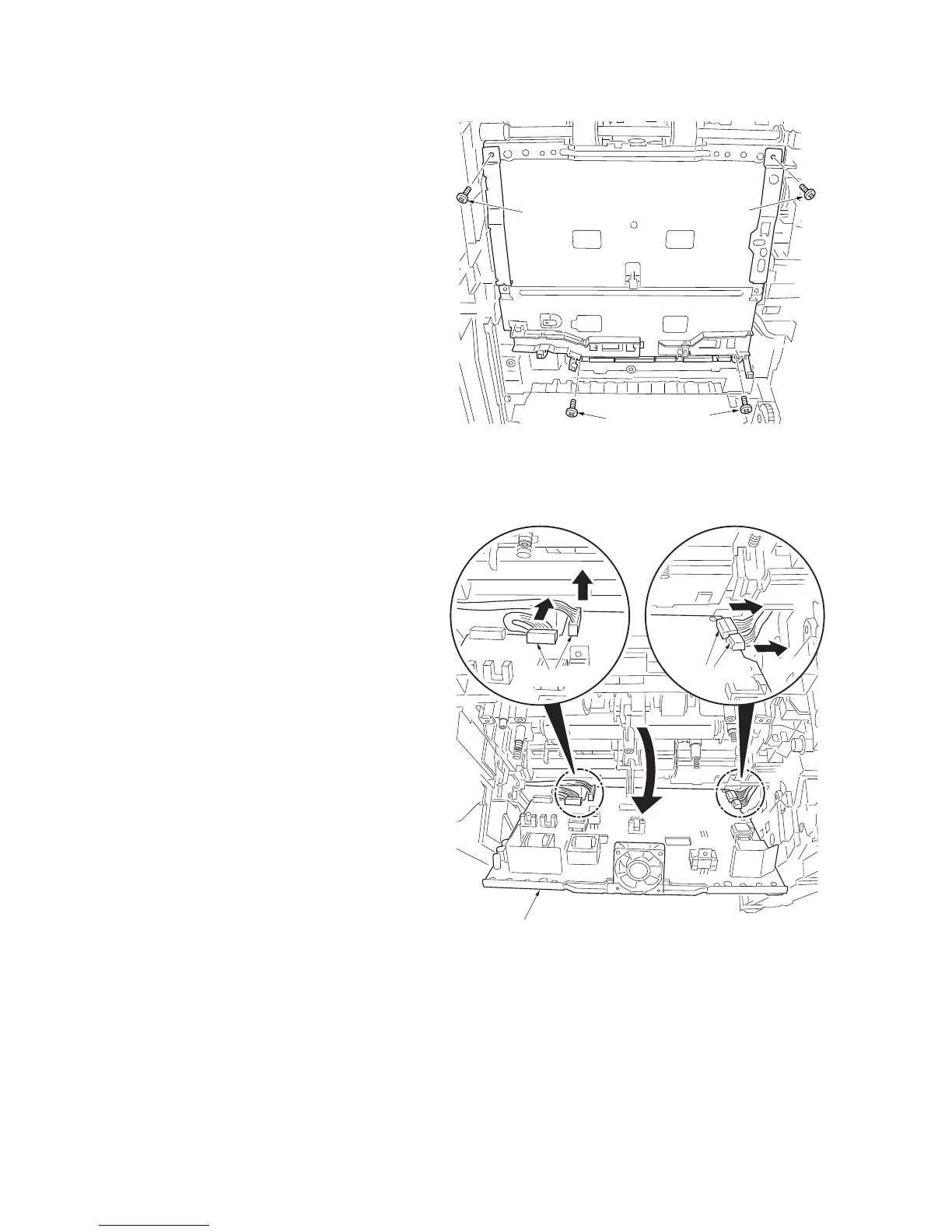

Figure 1-5-51
18. Detach the engine PWB assembly.
19. Remove four connectors.
20. Remove the engine PWB assembly.
Figure 1-5-52
Screw
Screw
Screw
Scvrew
Engine PWB assembly
Connectors
Connectors
