6 Commissioning
Amplification setting of the F300K
1. In the Align menu you need to adjust the amplification in such a way that the signal is with-
in the optimum amplitude modulation of the amplitude bar (min - max).
a) Press the key to open the "Amplification setting- Ascending steps" menu.
b) Press the key to open the "Amplification setting - Descending steps" menu.
NOTICE
The amplification setting is only possible step by step (1 level). Then you must confirm by
pressing ENTER.

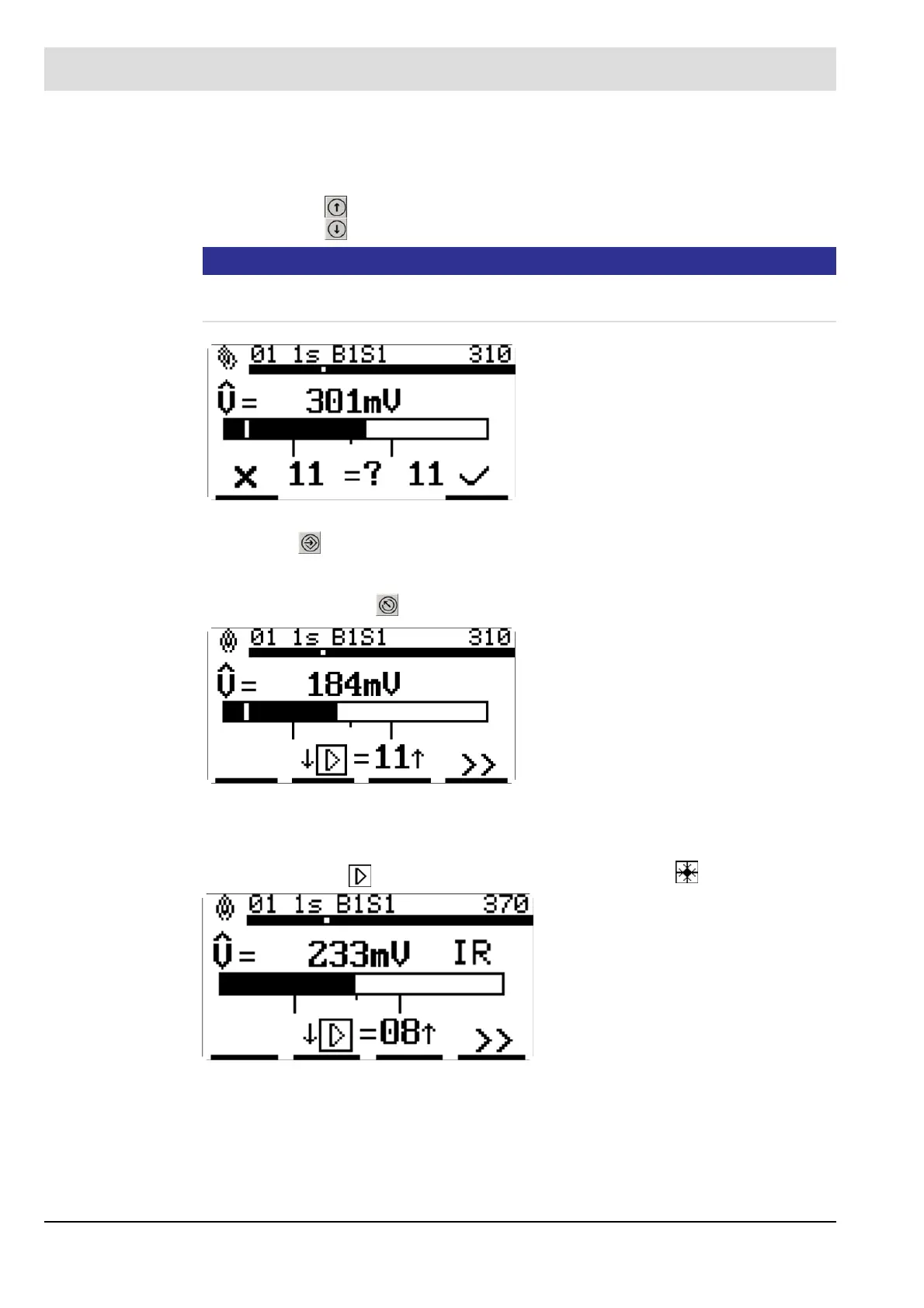

Fig. 6-5 "Amplification setting" menu
2. Press the key to apply the amplification. A countdown of 8 seconds begins. This is
accompanied by flashing. During this countdown, you have to confirm the setting by press-
ing ENTER. If you do not, an error message appears and the setting is rejected.
Alternatively, use the key to reject the setting.
Fig. 6-6 "Amplification setting" menu after pressing the ENTER key
The F300K is now ideally aligned.
Amplification optimization of the IR sensor in F300K UVIR-1 (double sensor)
Change to the menu and perform the same steps as in the menu .
Fig. 6-7 Menu "Amplification - IR" for the double sensor version
