11: Remote Power Managers
EMG™ Edge Management Gateway User Guide 242
RPMs - Outlets
The Outlets page allows the administrator to view the current status of each individual outlet on an
RPM, and change the state of the outlets. Not all RPMs support individual outlet status and
control.
To control and view status for RPM outlets:
1. Click the Devices tab and select the RPMs option. Figure 11-1 Devices > RPMs shows the
page which displays.
2. Select an RPM and click the Outlets link. Figure 11-9 RPMs - Outlets shows the page which
displays. This page will, at a minimum, list the outlet numbers and their state - On or Off. If the
RPM provides additional information for the outlets, the custom name and the current reading
in Amperes will also be displayed for each outlet.

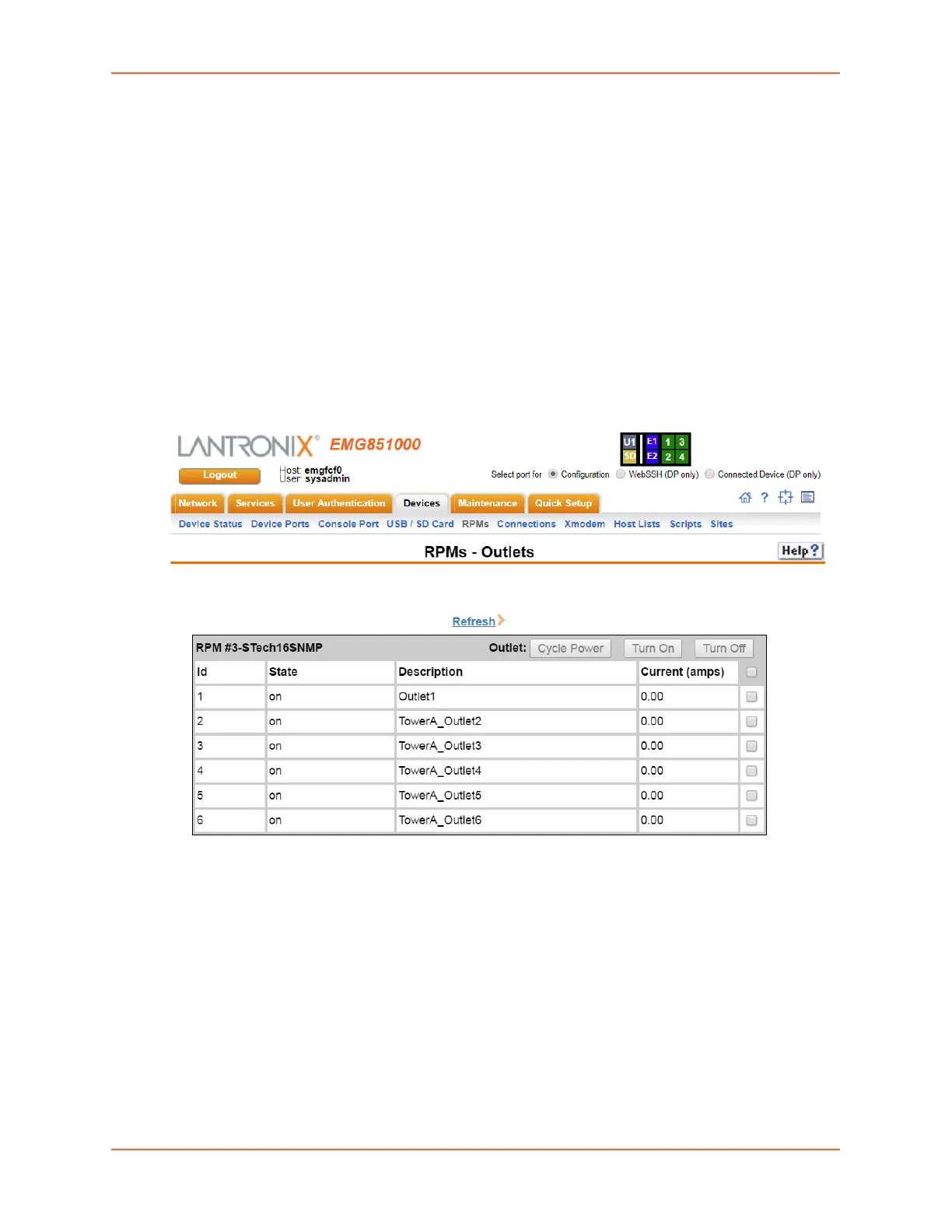

Figure 11-9 RPMs - Outlets
3. To change the state of one or more outlets, select the outlets, and click the Cycle Power,
Turn On or Turn Off buttons. The command will be sent to the RPM and the page will refresh.
It may take one or two minutes before the new outlet state(s) are reflected on the Outlets
page.
RPM Shutdown Procedure
This section applies to UPS-type RPMs only, and does not apply to PDU-type RPMS. This section
describes the shutdown process when a UPS managed by the EMG reaches a low battery state.
When one UPS reaches a low battery state, the EMG can be configured to allow the UPS to
