4: EMG 7500 Installation
EMG™ Edge Management Gateway User Guide 57
Wall Mount Installation

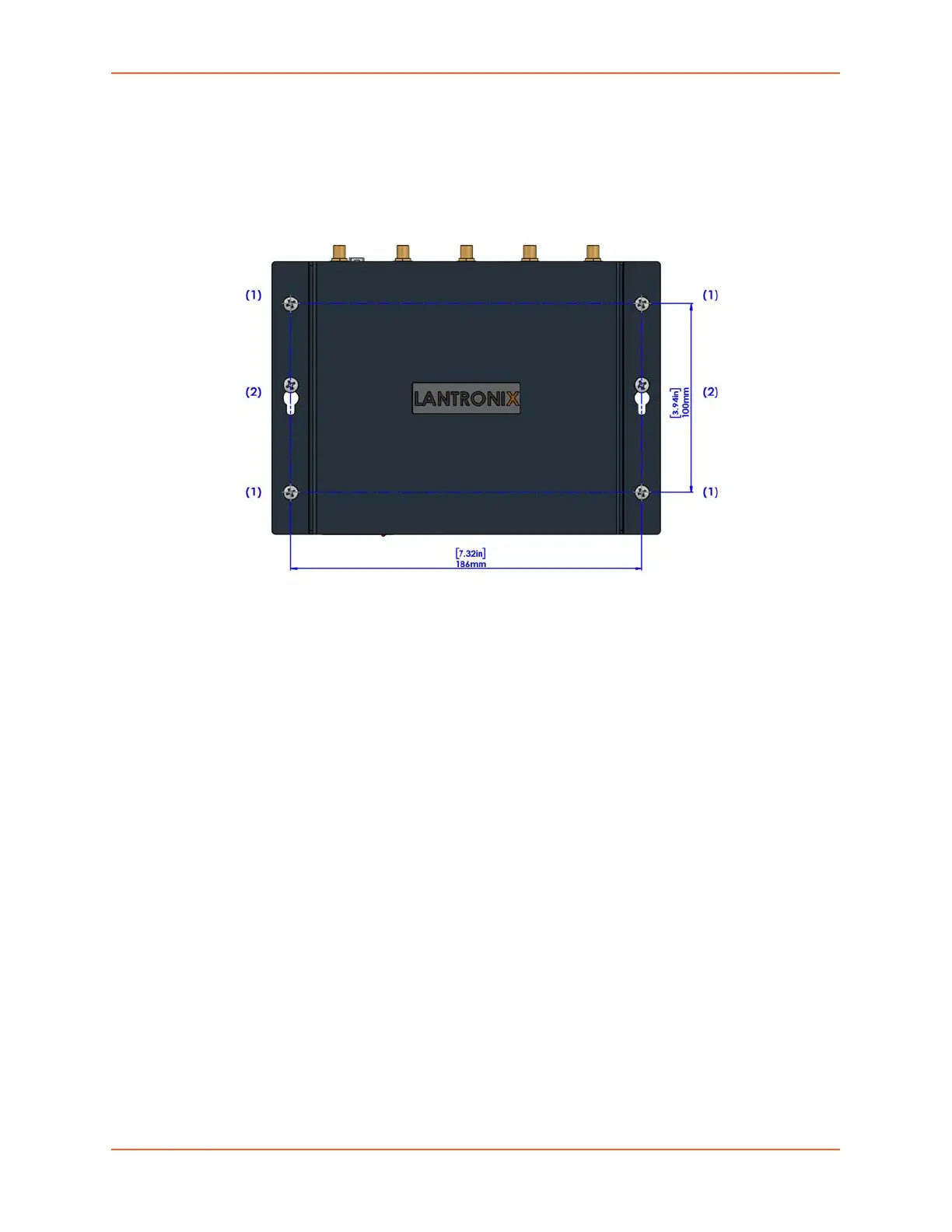

Figure 4-5 shows the wall mount and keyhole mount configuration.
Figure 4-5 Wall Mount Configuration
Wall Mount and Keyhole Mount Instructions
Walls Requiring Anchors
These instructions are for mounting the EMG to walls made of solid concrete, block, brick, or
plasterboard with anchors.
(1) Wall mount:
1. Locate the place where you want to mount the unit and mark four holes using your EMG
mount as a guide for the screws. See for the location of the screw holes.
2. Drill four 3/16 inch (4.8 mm) diameter holes at a depth of 1.25 inches (32 mm).
3. Insert the anchors until they are flush with the surface.
4. Thread four pan head top mount screws through the unit mount hole and through the anchor,
and tighten them.
(2) Keyhole mount:
1. Locate the place where you want to mount the unit and mark two holes using your EMG mount
as a guide for the screws. See for the location of the screw holes.
2. Drill two 3/16 inch (4.8 mm) diameter holes at a depth of 1.25 inches (32 mm).
3. Insert the anchors until they are flush with the surface.
4. Thread two pan head top mount screws through the unit mount hole and through the anchor,
and reserve 0.08” to 0.12” (2-3 mm) clearance to the anchor surface.
5. Hang the EMG unit where both keyholes of wall mounts can go through the screw heads on
the wall.
