15: Maintenance

EMG™ Edge Management Gateway User Guide 351

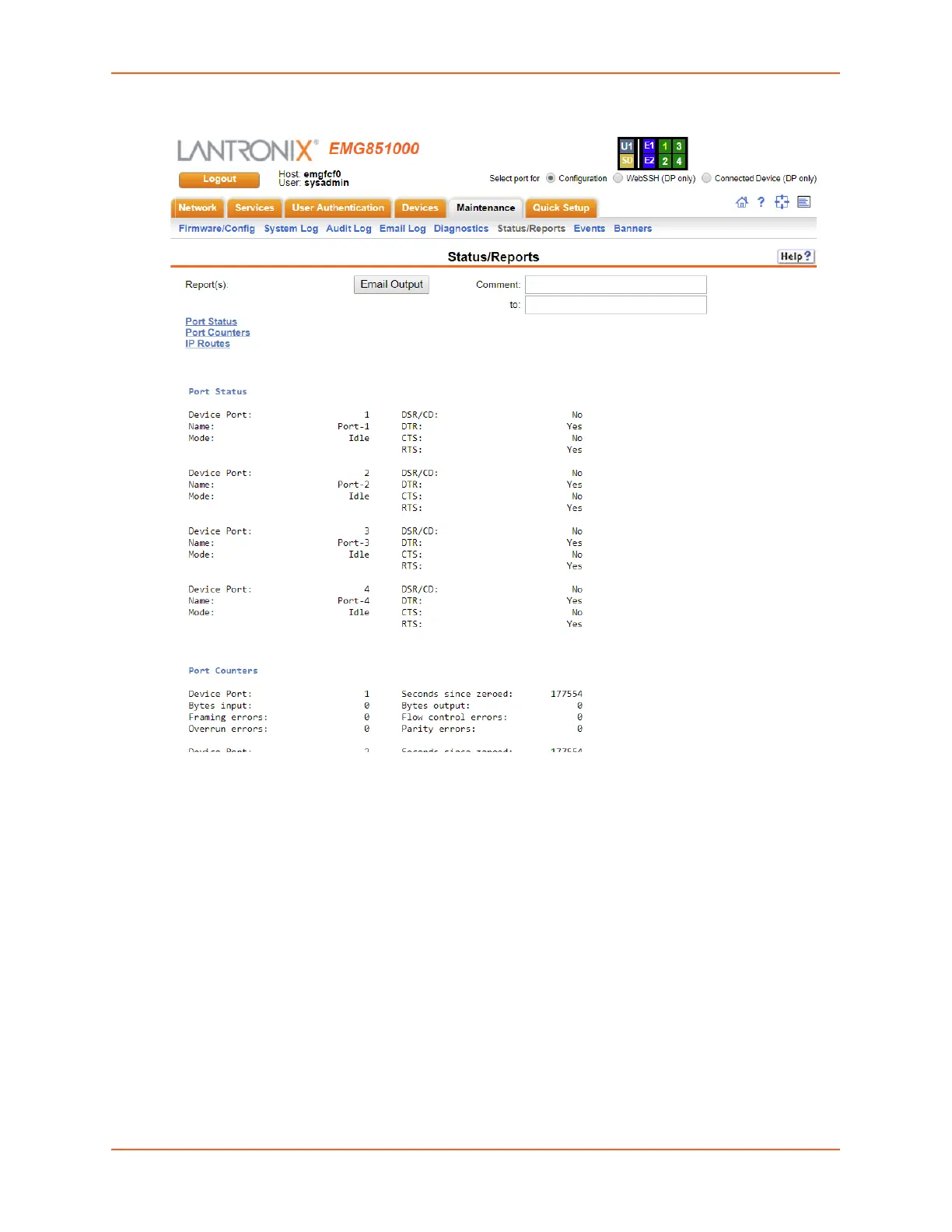

Figure 15-10 Generated Status/Reports

4. To email these report(s), follow the instructions in Emailing Logs and Reports (on page 352).

Status Commands

Go to Status Commands to view CLI commands which correspond to the web page entries

described above.
