2: Introduction

EMG™ Edge Management Gateway User Guide 36

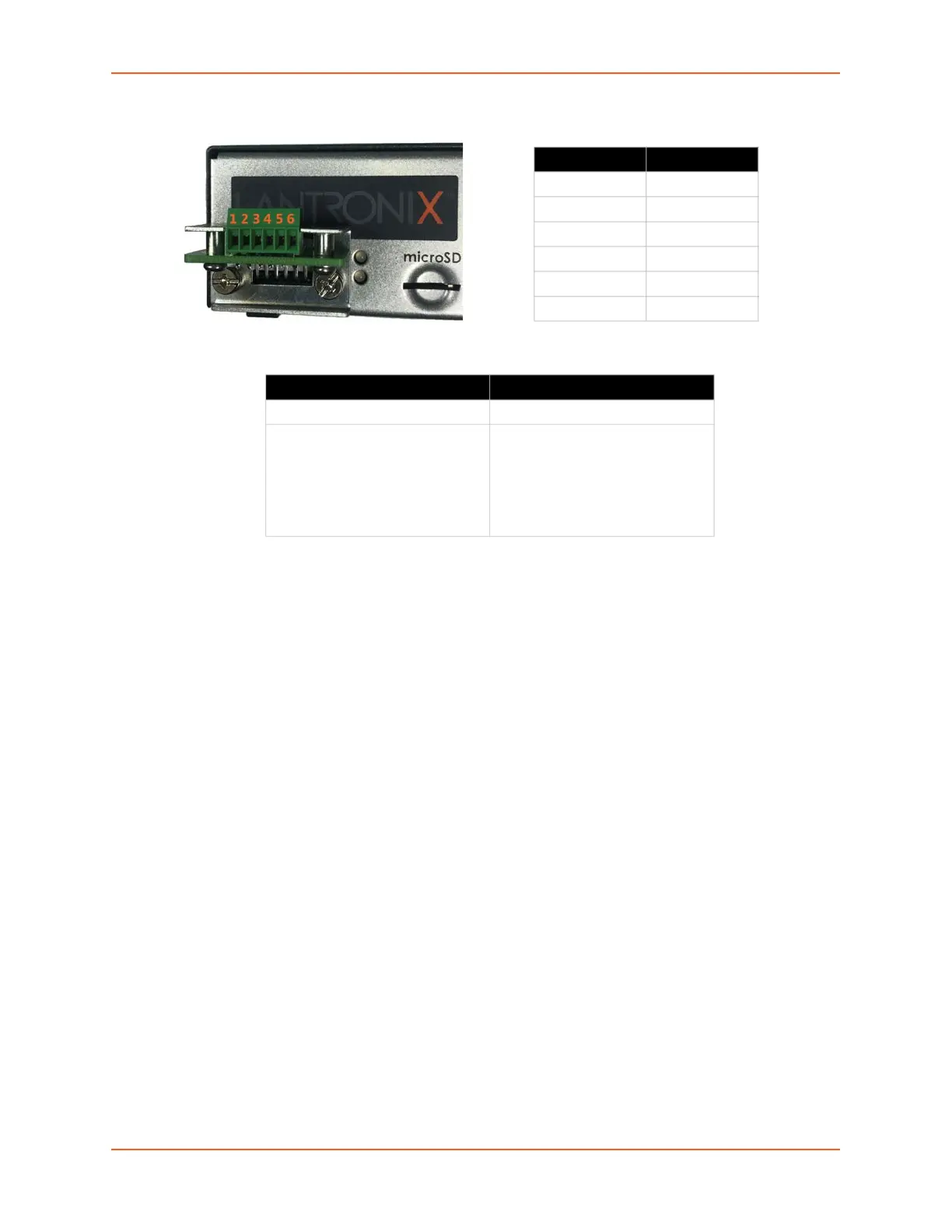

Figure 2-14 Digital I/O Port

The DIO connector description is provided below.

Connector Description

Relay Output Output supports 1A 24V

Inputs Inputs accept voltage 0 to 30 VDC.

ON: Max 30 VDC

Min 2 VDC

OFF: Max 0.7 VDC

Min 0 VDC

Pin Number Pin Definition

1 Relay Out

2 Relay In

3 Input1+

4 Input1-

5 Input2+

6 Input2-
