SLC™ Console Manager User Guide 245
14: Application Examples
Each SLC console manager has multiple serial ports and two network ports as shown in Figure
14-1. Each serial port can be connected to the console port of a device. Using a network in-band
port or an out-of-band modem for a dial-up connection, an administrator can remotely access any
of the connected devices using Telnet or SSH.

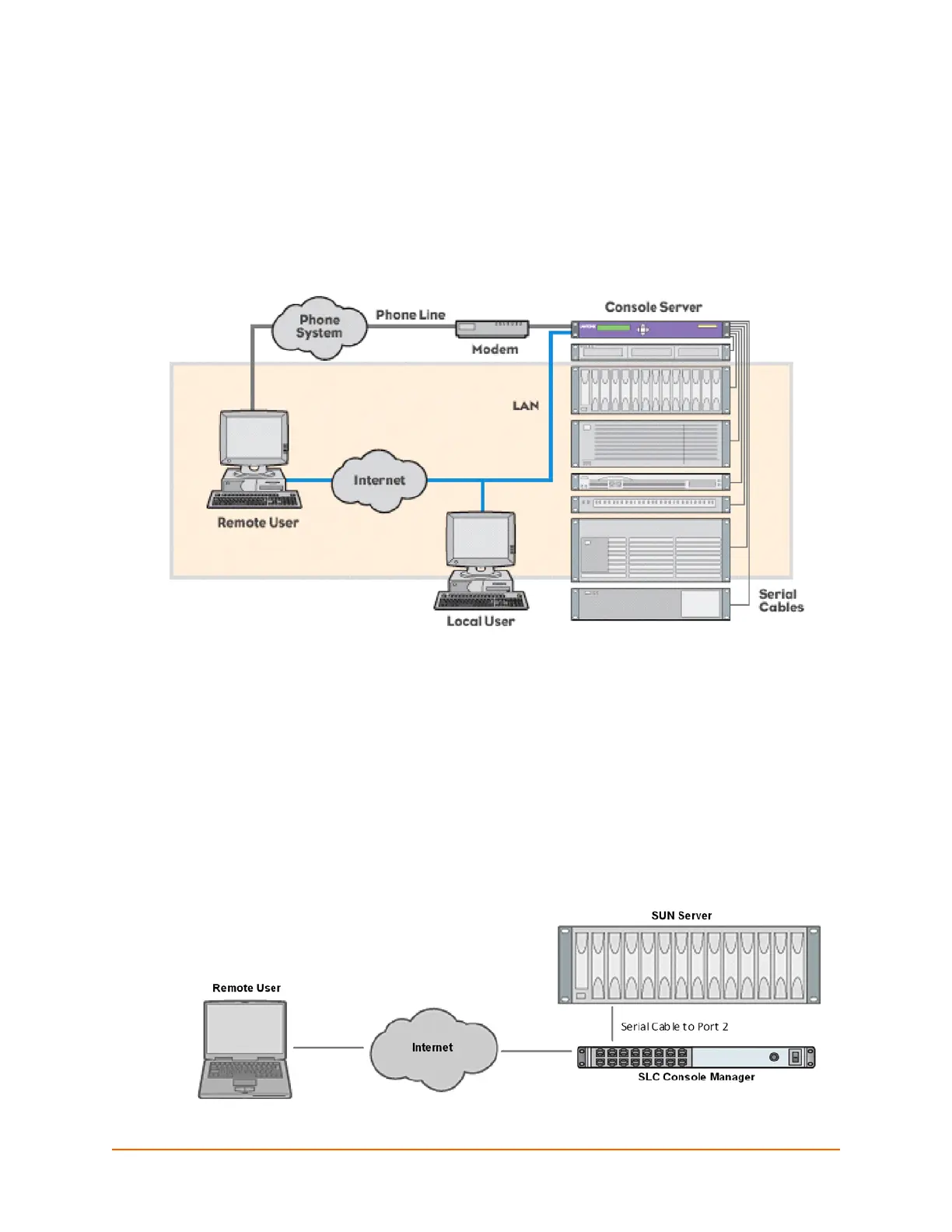

Figure 14-1 SLC Console Manager
This chapter includes three examples that use the SLC device. The examples assume that the
SLC console manager is connected to the network and has already been assigned an IP address.
In the examples, the command line interface is shown. You can perform the same configurations
using the web page interface except for directly interacting with the SLC device (direct
command).
Telnet/SSH to a Remote Device
Figure 14-2 shows a SUN server connected to port 2 of the SLC console manager .
Figure 14-2 Remote User Connected to a SUN Server via the SLC Device
