LeCroy WaveAce series User Manual

WaveAce Series
97
WA-GSM-E RevB

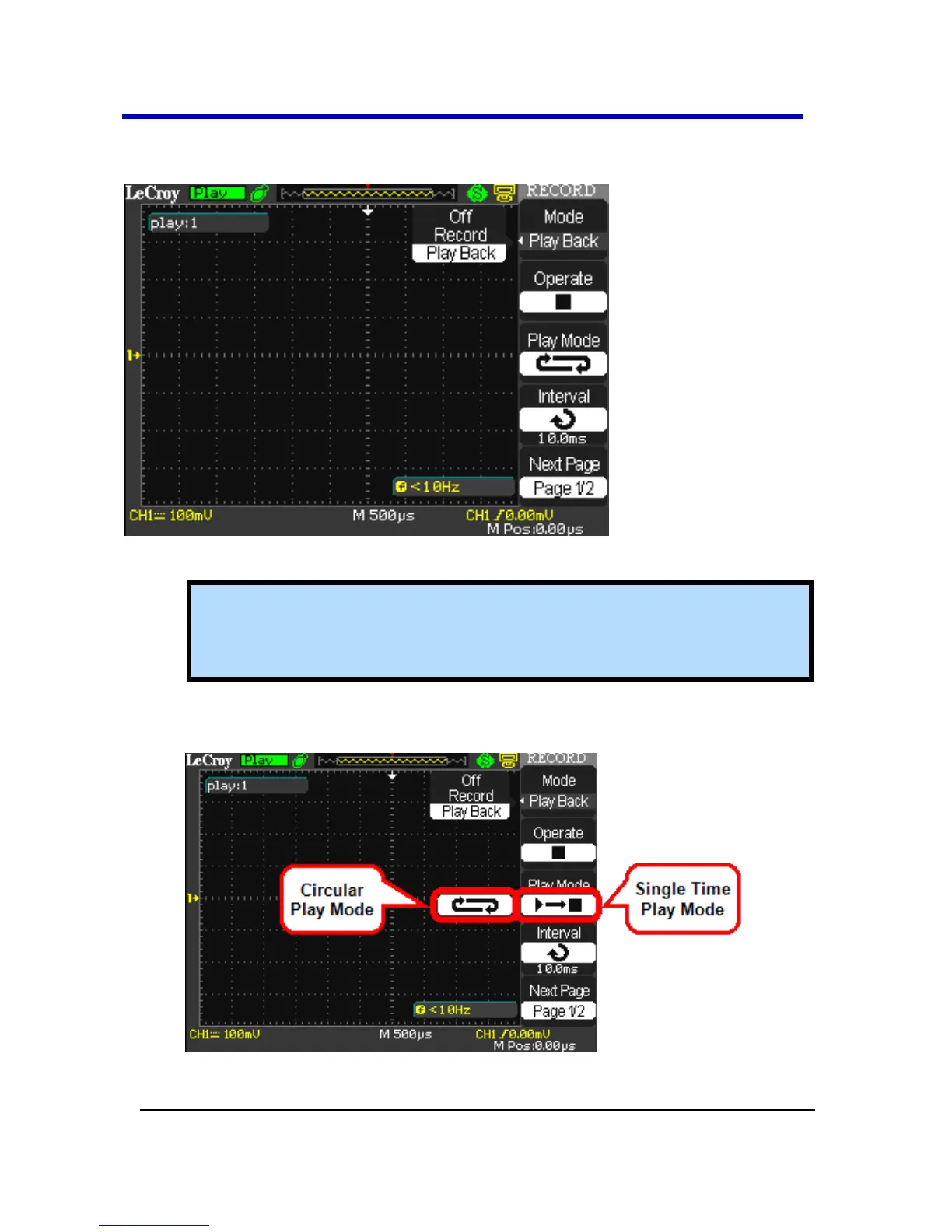

The Record menu (with Mode set to Play Back) - Page 1/2 is shown and
contains the following option button functions (in addition to Mode).
1. Press the Operate option button to Start/Stop playback.
Note: A play: 1 counter is shown on the upper-left part of the grid
display area which counts the number of record frames to your
recorded End Frame amount.
2. Press the Play Mode option button to choose from Circular (repeat)
or Single time (play once, and then stop) modes.

LeCroy WaveAce series Specifications

General

Channels	2 or 4
Vertical Resolution	8-bit
Input Coupling	AC, DC, GND
Power Supply	100-240 VAC, 50/60 Hz
Sample Rate	2 GS/s
Display	800 x 480
Input Impedance	1 MΩ
Timebase Range	5 ns/div to 50 s/div
Trigger Types	Edge, Pulse Width, Video, Slope
Connectivity	USB host, USB device
