LeeBoy 8510b - Electrical 4 of 6

9
9-9

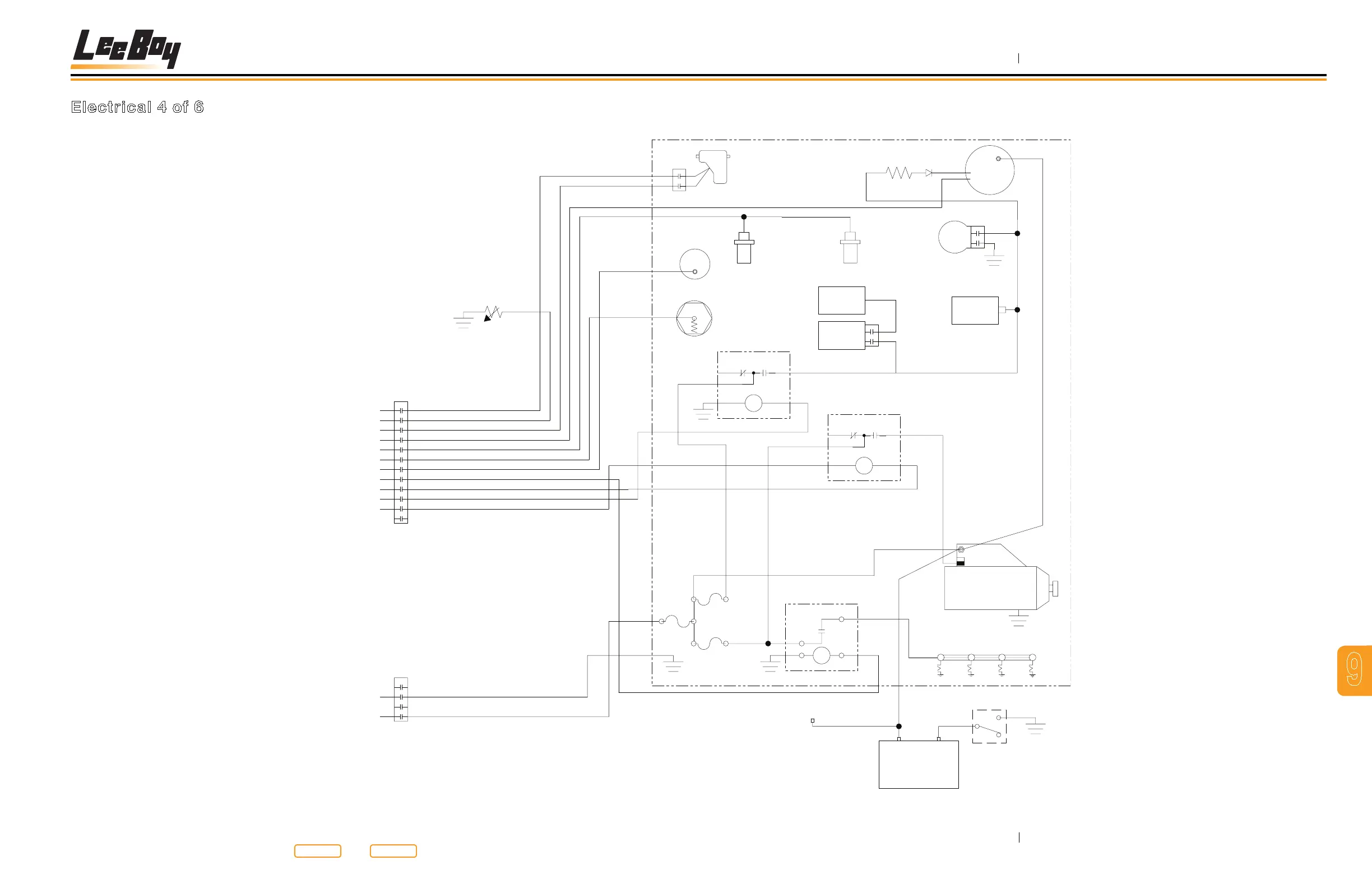

Schematics
LeeBoy Model 8510B Conveyor Paver
Electrical 4 of 6
GLOW PLUG RELAY
BATTERY
+
-
2
3
B+
STARTER
ALTERNATOR
B+
1
GLOW PLUGS
START
RELAY
87
87A
85
86
RY1
30
2
3
TEMPERATURE
SWITCH
G
OIL
PRESSURE
SENOR
FUEL
SOLENOID
FUEL
PUMP
TEMPERATURE
SENDER
ENGINE CAT
DISCONNECT
ORANGE BLACK NEUTRAL START
RED 16 GA IGNITION
YELLOW START
ORANGE GLOW PLUGS
BROWN OIL PRESSURE
BLUE ENGINE TEMP
WHITE CHECK ENGINE
TANTACH
YELLOW BLACK THROTTLE DEC
RED ORANGE FUEL LEVEL
WHITE BLACK THROTTLE INC
THROTTLE
LINERAR
ACTUATOR
FUEL SENDING UNIT
IN FUEL TANK
1
2
RED 12 GA
3 BLACK 12 GA
4
REMOTE
POWER
OIL
SWITCH
1
2
3
4
5
6
7
8
9
10
11
12
A
B
80 AMP
40 AMP
15 AMP
IGNITION RELAY
87
87A
85
86
RY1
30
2
1
1
2
COLD
ADV SW
COLD
ADVANCE
SEE
PANEL
HARNESS
PLUG
SEE
PANEL
HARNESS
POWER
PLUG
RY1
