LeeBoy 8510b - Hydraulic Controls for Paver Functions

5-12 LeeBoy Model 8510B Conveyor Paver
Component Location
Hydraulic Controls
Hydraulic Controls

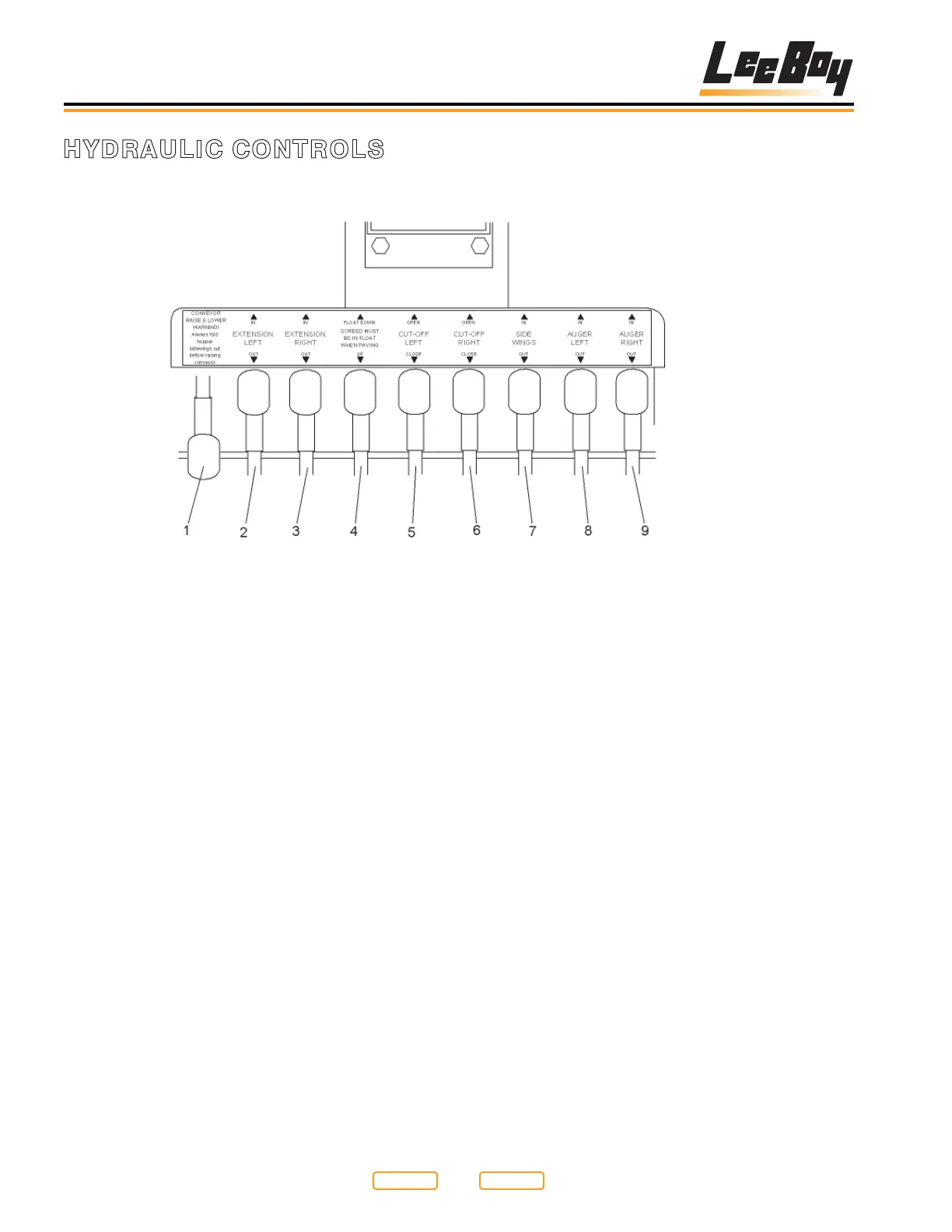

Figure 5-5
1 - Conveyor Raise/Lower (also Truck Hitch if equipped)
2 - Left Extension
3 - Right Extension
4 - Screed Raise/Float
5 - Left Cutoff Open/Close
6 - Right Cutoff Open/Close
7 - Side Wings
8 - Left Auger
9 - Right Auger
