6-24 LeeBoy Model 8510B Conveyor Paver
Operation
Umbrella (Option)
Assembly Instructions
1. Install Umbrella Mounting bracket (See bracket
mounting instructions furnished with each bracket).
2. Insert ball stud (Figure 6-33,3) on curved shaft
into umbrella support shaft (Figure 6-33,1), align
holes, and drive 3/16” X 1” spiral spring pins (Figure
6-33,2) into position. Install locking handle (Figure
6-33,5).
3. Place canvas cover (Figure 6-33,7) over umbrella
frame assembly (Figure 6-33,8) and hook corners
to bows – tie each bow securely with tie straps.
4. Insert umbrella frame assembly (Figure 6-33,8)
with canvas in place into tube on curved shaft
(Figure 6-33,3) and insert bolt (Figure 6-33,6).
Tighten snugly with nut (Figure 6-33,4).
5. Install complete umbrella into clamp on umbrella
mounting bracket. Each bow may be raised
individually until locked into open position (Figure
6-33,15). Each bow has two positions in which it
can be locked open. This is to allow for arc stretch
in canvas.

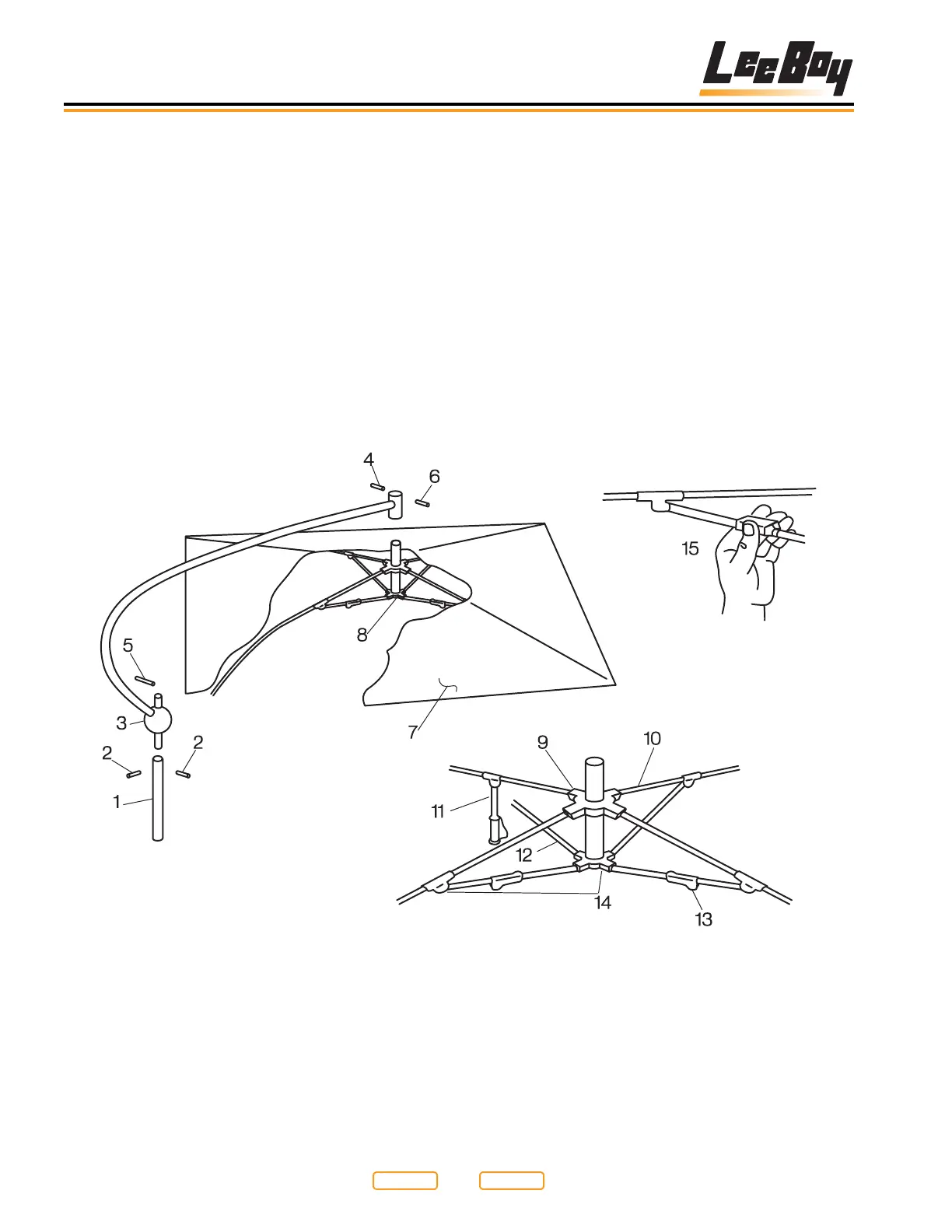

Umbrella Illustration
Figure 6-33
