5-14 LeeBoy Model 8510B Conveyor Paver
Component Location
Paving Controls
Paving Controls

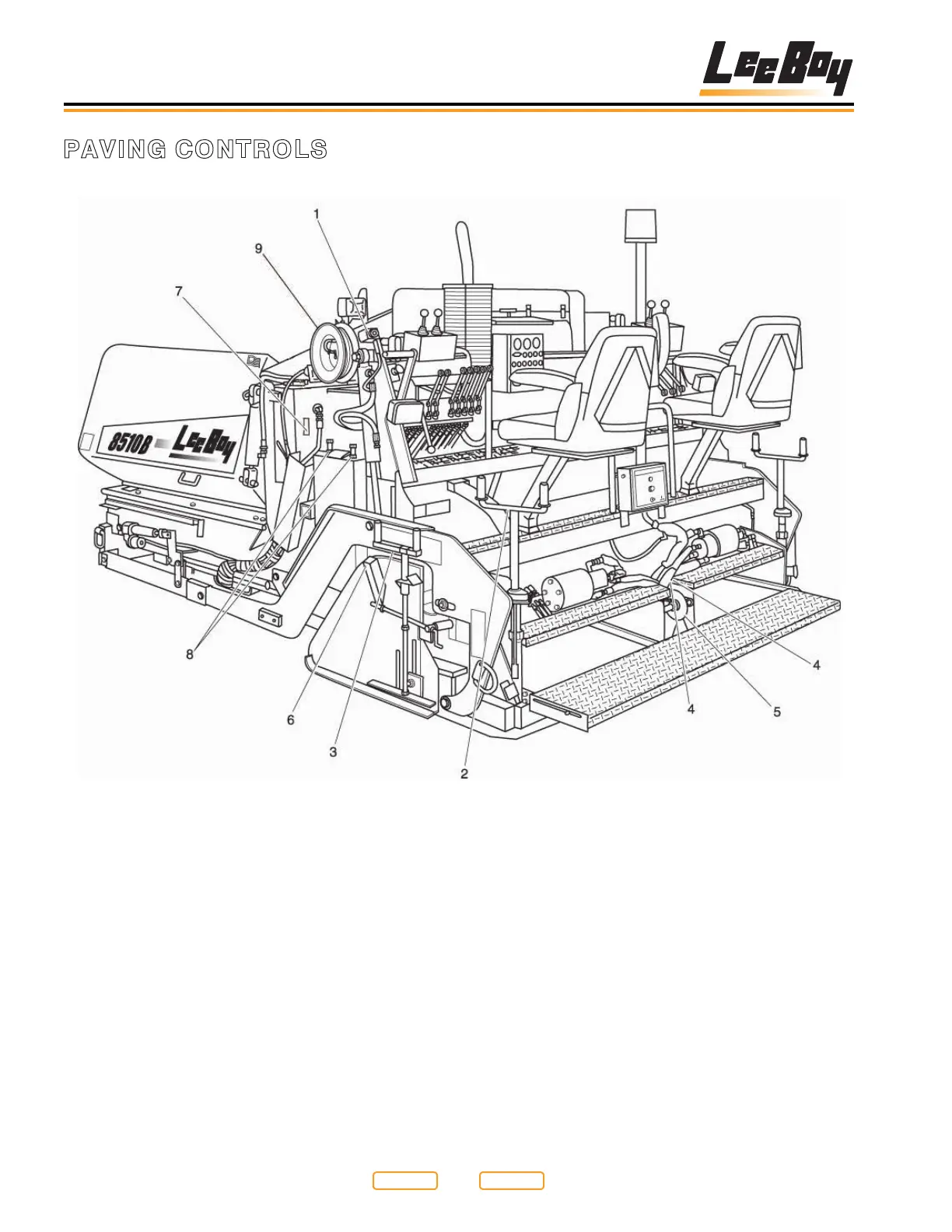

Figure 5-6
1 - Auger Remote Control Head
2 - Flight Screw
3 - Endgate Depth Screw
4 - Igniter
5 - Crown and Valley
6 - Sonic Auger Sensor Mount
7 - Hydraulic Oil Sight/Temperature Gauge
8 - Conveyor Drive Chain Adjustment
9 - Spray Down Hose
