002621
F416U1
Description
Control device powered at 100 – 240 Vac for dimming resistive loads, ferromagnetic
transformers and electronic transformers. The loads can be adjusted via any control
device and/or sensor connected and properly configured, or by using the button on the
device. The device is able to signal any load faults such as, for example, lamp failure.
The device is a component in the Lighting Management system and can also be installed
in a My Home system.
Technical data
Power supply: 100 -240 Vac @ 50/60 Hz
Number of outputs: 1 x 4.3 A
Power consumption on standby: 0.3 W
Operating temperature: (-5) – (+45) °C
Type of connection: – RJ45
– clamp input 2 x 2.5 mm
2
– clamp output 2 x 1.5 mm
2
and 1 x 2.5 mm
2
Protection index: IP20
Impact resistance: IK04
Weight: 327 g
Cable section: 2.5 mm
2
Standards, Certifications, Marks
Directive:
– Electromagnetic Compatibility Directive 2004/108/EC
Installation regulations:
– CEI 64-8
Product regulations:
– IEC 60669-2-1
– EN 50428
Environmental regulations:
– EU Directive 2002/96/EC: WEEE (Waste Electrical and Electronic Equipment)
– EU Directive 2002/95/EC: RoHS (Restriction of Hazardous Substances)
Dimensions
Size: 6 DIN modules

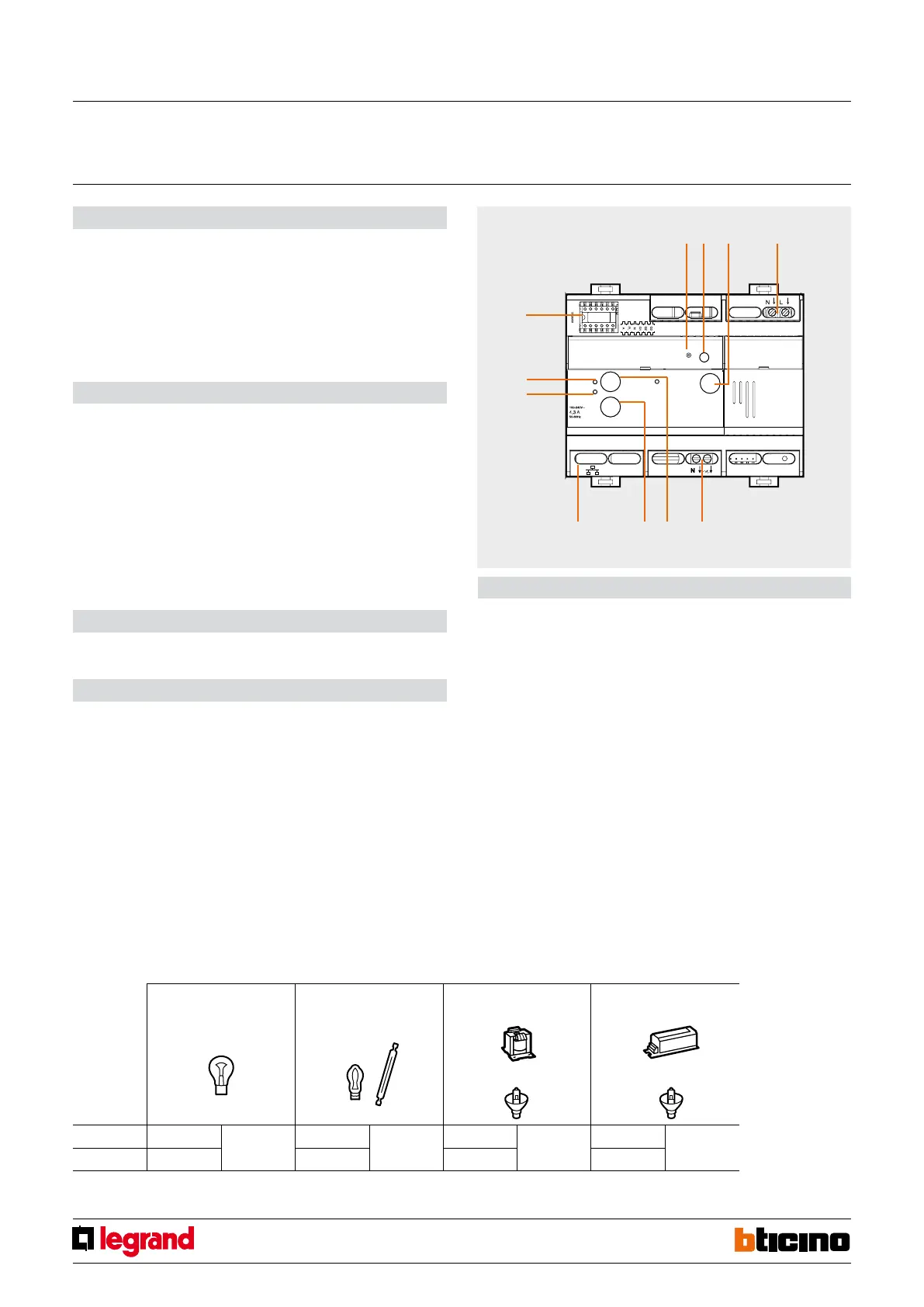

Legend
1. Learn LED
2. Button for forcing the type of load
3. Button for manual load forcing
4. Clamps for the connection to the 230 Vac power supply
5. Load connection clamps
6. Load adjustment/ON control button
7. Load adjustment/OFF control button
8. BUS RJ45 connector
9. Load type indicator:
Green: Inductive
Orange: Capacitive
10. Load indicator:
LED OFF: load OFF
LED ON green: load ON from 1% to 100%.
LED ON orange: fault with load
11. Configurator socket (note that this must only be used in My Home systems with the
physical configuration)
Power/Consumption of driven loads:
WARNING: Devices that operate with an electronic transformer or a ferromagnetic transformer cannot be connected on the same line
SCS Dimmer 1x4.3A
MQ00315-e-EN 09/06/2014
Incandescent lamp Halogen lamps
230 V~ 1000 W
4.3 A
1000 W
4.3 A
110 V~ 600 W 600 W
Ferromagnetic transformers Electronic transformers
1000 VA
4.3 A
1000 VA
4.3 A
600 VA 600 VA
+ +
