0672 50
L/N/NT4578N
HD/HC/HS4578
Gateway SCS/ZigBee®
Device for interfacing the ZigBee® radio Automation system with the My Home BUS
Automation system.
It makes it possible to extend a wire Automation system and to management the
corresponding actuators, using the ZigBee® radio controls. .
Description
Power supply from SCS BUS: 18 – 27 Vdc
Absorption: 20 mA
Maximum number of ZigBee® devices that can be managed: 32
Operating temperature: 5 – 45 °C
Technology: Radio 2.4 GHz standard
ZigBee®
Capacity: 150 m free field, 15 m in
rooms with concrete walls
Technical data
Size: 2 flush mounted modules
Dimensional data
The interface must be configured by assigning the address following the procedure used
for BUS Automation systems.
A = Room 1 – 9
PL = Light Point 1 – 9
M = - (no configurator)
Note: assign an address not used for other Automation devices.
Configuration
Legend
1. NETWORK LED
2. LEARNING LED
3. LEARNING key
4. NETWORK key
5. Configurator socket (A,PL and M)
6. BUS clamp

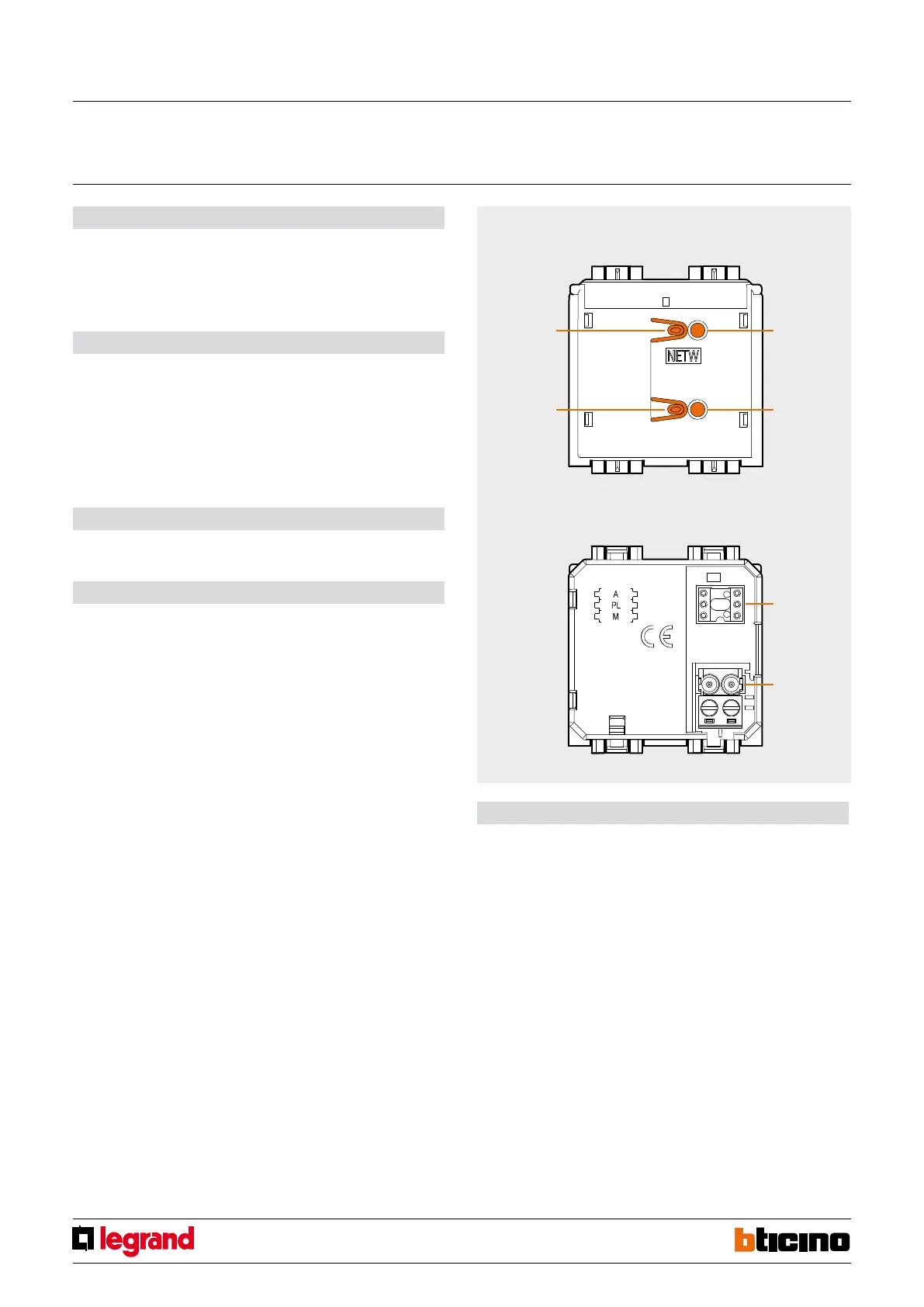

Front view
Rear view
MQ00410-c-EN
