135
H4652
LN4652
16/09/2013MM00778-a-
1
2
1
3
5
4
0 675 92
EN
Flush mounted multifunction control, with 8 backlit keys in the centre section, where
the icons indicating the functions allocated to the keys can be found.
The device can be configured in two different ways:
- Physical configuration, by inserting the configurators in the appropriate housings.
- Configuration using the MyHOME_Suite software, which can be downloaded from
the website www.homesystems-legrandgroup.com; this last type of configuration
has the advantage of offering many more options when compared with the physical.
configuration.
Irrespective of the mode implemented, an A/PL address must always be assigned to
the control.
In can be programmed in 4 operating modes:
- The self-learning mode (cyclical or non cyclical) gives the possibility of associating
to each key the majority of the typical controls of the automation, sound, and video
door entry (staircase lights, door lock, call to the floor, door lock and camera cycling)
systems, in addition to the auxiliary controls.
- The scenario mode gives the possibility of recalling, programming and deleting 8
scenarios of a scenario module.
- The swivelling mode gives the possibility of driving 4 light points of shutters in
succession (room or group).
- CEN mode gives the possibility of using the control together with scenario
programmer MH200N or MH201.
Description
8 key multifunction control
BUS SCS
Legend
1.
Kyes
2. Customisable labels
3. Clamps for connection to the SCS BUS
4. Configurator socket
5. Programming pushbutton for self-learning and scenario modes

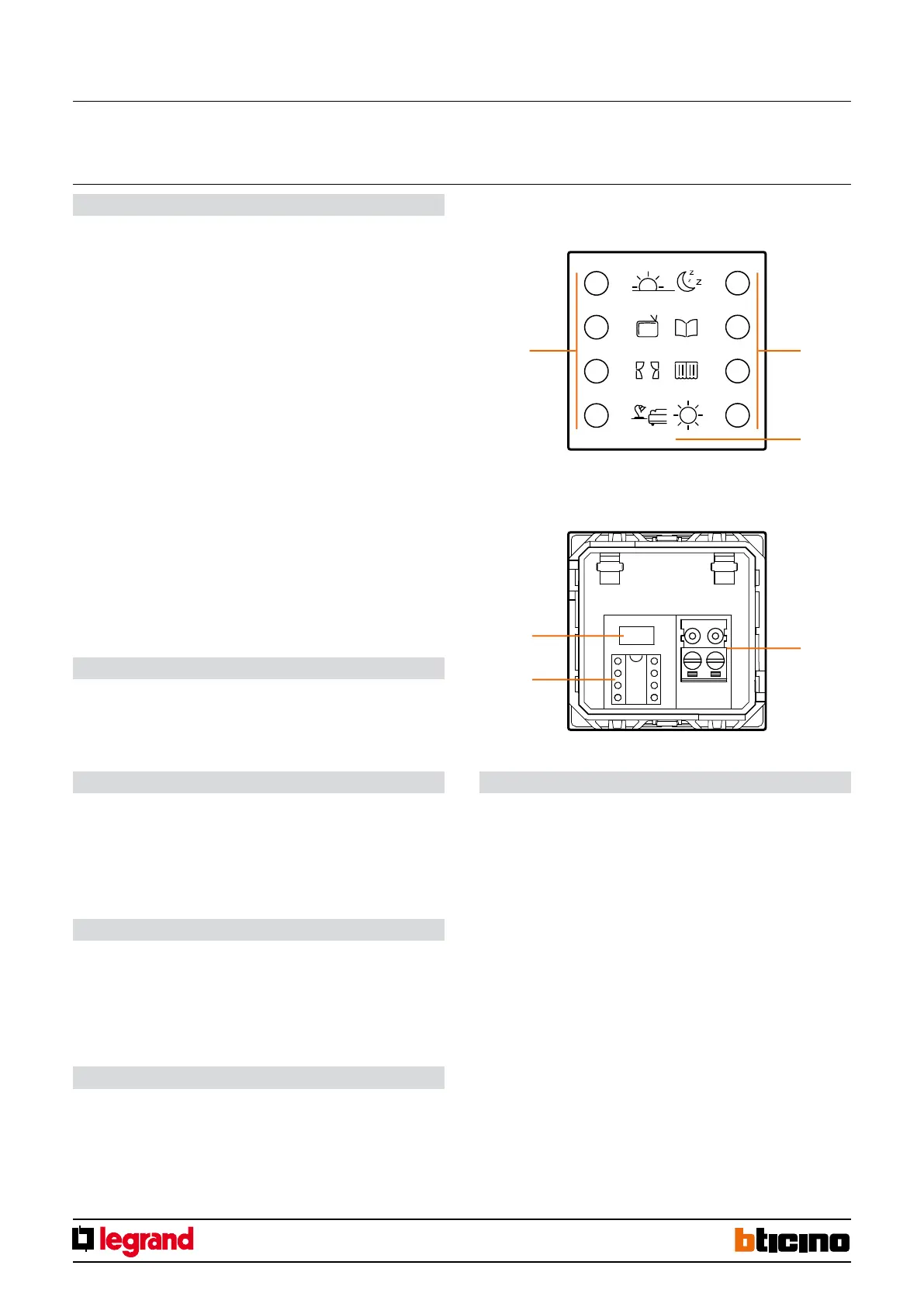

Front view
Rear view
Power supply from SCS BUS: 18 – 27 Vdc
Absorption: with LEDs Off: 5 mA
with LEDs On at 100%: 20 mA
Operating temperature: 0 – 40 °C
Technical data
3541 - 0 675 95 A5 sheets with symbol customisations, BLACK
3542 - 0 675 96 A5 sheets with symbol customisations, WHITE
Related items
Size: 2 flush mounted modules
Dimensional data
EN 60669-2-1
EN 50090-2-2
EN 50090-2-3
EN 50428
Standards, Certifications, Marks
