26
24/09/2013
N L
4
3
6
2
1
5
0672 33
H4591
LN4591
078447
079147
663089

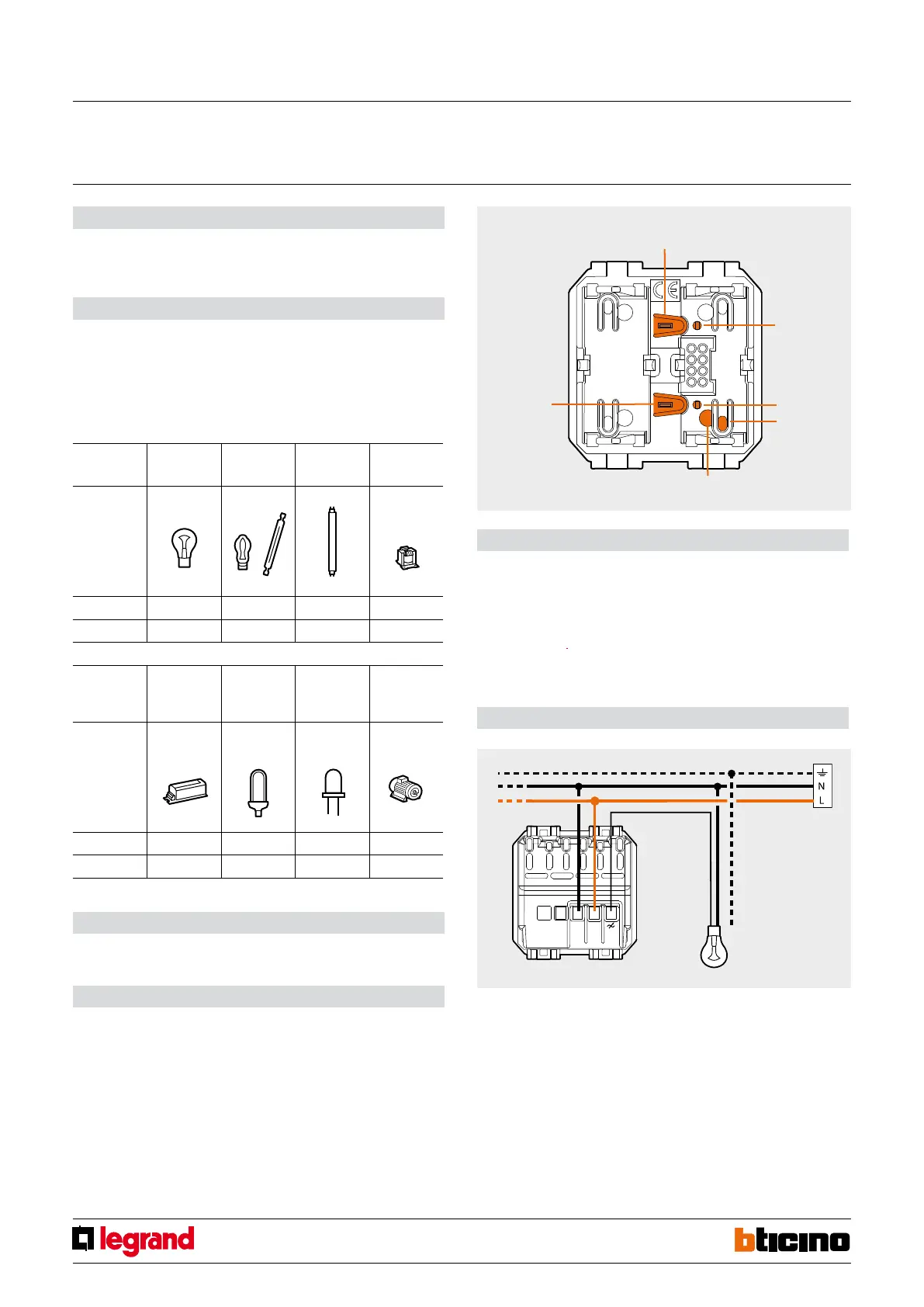

Universal switch RF with neutral 2500W
with LEDS status
Actuator for the control of different loads with maximum powers up to 2500 W, with
ON/OFF LED.
Description
Legend
1. NETWORK key
2. NETWORK LED
3. LEARNING LED
4. ON/OFF key
5. Load ON/OFF LED
6. LEARNING key
Power supply: 100 – 240 Vac 50/60 Hz
Operating temperature: 5 – 45 °C
Technology: Radio 2.4 GHz standard ZigBee®
Capacity: 150 m free field, 15 m in rooms with
concrete walls
Power/absorption of the loads driven: see following table
Technical data
Wiring diagram
Size: 2 flush mounted modules
Dimensional data
“Push and Learn” self-learning type.
Configuration
Important:
– Connect a load before performing any “scenario” learning procedure.
– For conventional type transformers, a load with power 60% higher than their rated
power must be connected.
– For the calculation of the controllable power take into account the efficiency of
standard transformers (e.g.: transformer for a 50 W lamp with an efficiency of 0.78
=> power actually absorbed by the transformer = 64 VA)
Front view
Voltage
Incandescent
lamp
Halogen lamp
Fluorescent
tube lamp
Ferromagnetic
transformer
Voltage
230 Vac 2500 W 2500 W 1250 W 2500 VA
110 Vac 1250 W 1250 W 625 W 1250 VA
Voltage
Electronic
transformer
Compact
uorescent
tube lamp
LED lamps Motors
Voltage
230 Vac 2500 W 1250 W 1250 W 250 VA
110 Vac 1250 W 625 W 625 W 125 VA
MQ00401-c-EN
