LEGRAND 3440 - Ln4691

316
MM00789-a-
13
1415
7
4
5
6
3
10
11
12
9
1 2
8
MODE
+
–
FAN
H4691
LN4691
067459
64170
Thermostat with display for the control of the room temperature in temperature control
systems.
This device can be used both if a temperature control central unit is present or not
present; when appropriately configured it can be used as:
- MyHOME temperature control system probe;
- Hotel room thermostat;
- Residential system thermostat.
It has 4 keys that can be used to select the desired temperature and the various operating
modes; when used with fan-coils it can manage the fan speed.
The thermostat can manage different operating modes: both automatic and manual, in
addition to the Eco, Comfort, Antifreeze/Thermal protection, and OFF.
It can also be used in mixed heating/cooling systems, if the two functions are available
at the same time on the same system.
A contact is also available on the back of the device, to change the operating mode of the
thermostat (e.g. window contact, summer/winter switching, etc.).
Description
Power supply from SCS BUS: 18 – 27 Vdc
Absorption: 14 mA with display off
16 mA with low brightness display
30 mA with high brightness display
Operating temperature: 0 – 40 °C
Size: 2 module flush mounted
Recommended installation height: 150 cm from the ground
Controllable loads: On/Off, Open/Close, 3-point or
0-10V valves.
2-tube and 4-tube fan-coils with
On/Off, 3-point, or 0-10V valves.
Gateway Climaveneta.
Fil Pilote.
Technical data
Correlated devices
EN
The thermostat must be used with the following actuator devices:
- F430/2: ON/OFF relay actuator;
- F430/4: ON/OFF 4-relay actuator;
- F430R8: ON/OFF 8-relay actuator;
- F430R3V10: ON/OFF 3-relay actuator with 2 x 0-10V outputs;
- F430V10: actuator with 2 x 0-10V outputs;
- F430FP: actuator for Fil Pilote devices

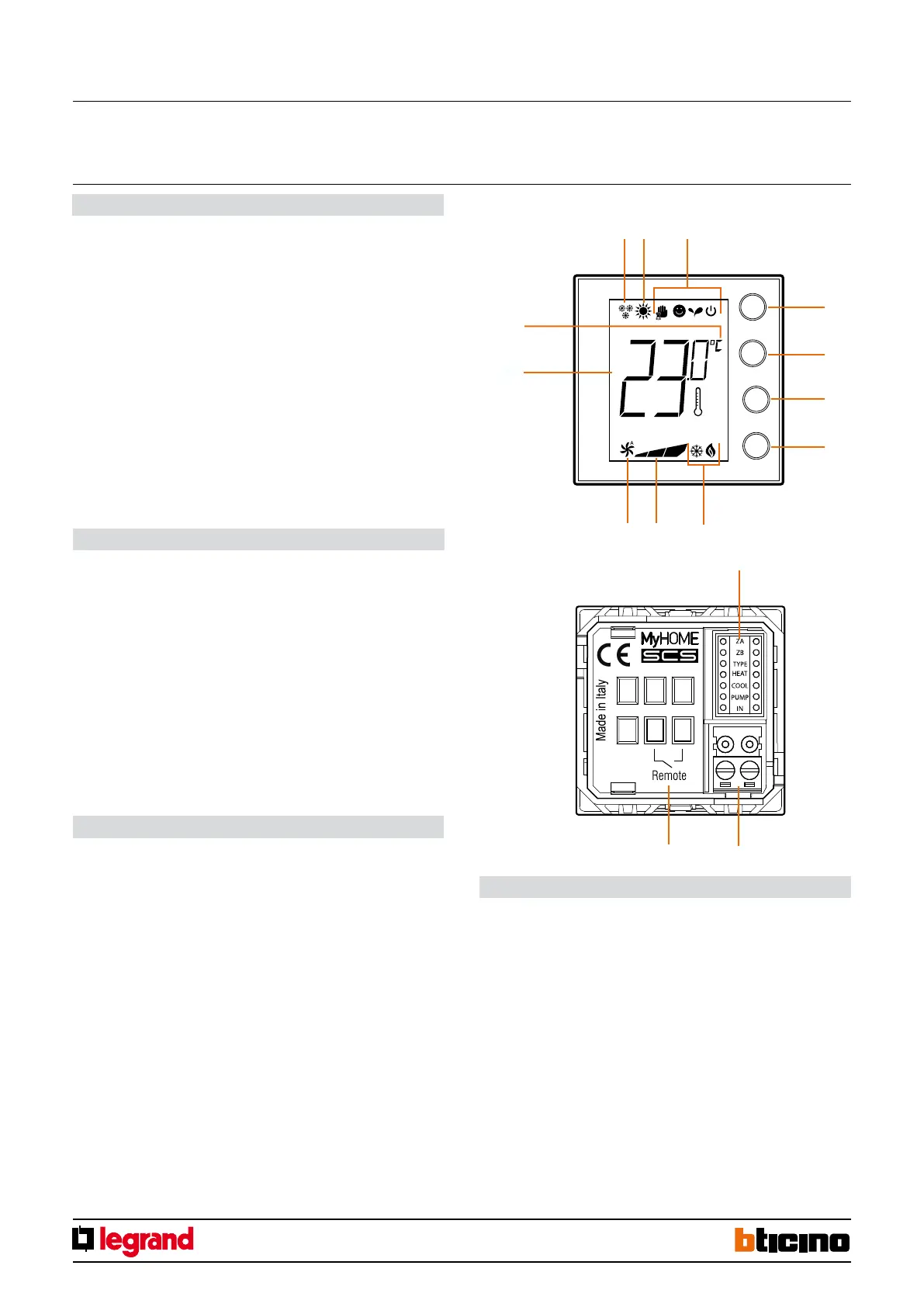

Legend
1. Heating function
2. Cooling function
3. Operating mode icons
4. MODE key: a short pressure changes the mode of operation of the device;
an extended pressure (unless used as MyHOME probe) changes the function
5. + key: increase the set value
6. – key: decrease the set value
7. FAN key: set the fan coil speed on 3 levels + automatic
8. Heating/cooling on indicator
9. Fan coil speed indicator, 3 levels
10. Fan coil in automatic mode indicator
11. Measured (thermometer symbol on) / set (thermometer symbol off) temperature
indicator
12. Unit of measure: °C or °F
13. Configurator socket
14. BUS connection
15. Local contact
Thermostat with display
30/09/2013
