Radio actuator device with relay output to be used for the notification of an alarm
through the activation of visual/acoustic indicators, or for the control of a solenoid valve
for the isolation of the water or gas pipes at the entrance of the house.
The actuator is used together with the specific Radio interface for technical alarms,
H/LN4586.
Description
Legend
1. NETWORK LED
2. LEARNING LED
3. Key
4. LEARNING key
5. NETWORK key
Power supply: 100 – 240 Vac 50/60 Hz
Operating temperature: 5 – 45 °C
Technology: Radio 2.4 GHz standard ZigBee®
Capacity: 150 m free field, 15 m in rooms with
concrete walls
Power/absorption of the loads driven: 2500 W (240 Vac)
1250 W (100 Vac)
Technical data
Wiring diagram
Size: 2 flush mounted modules
Dimensional data
“Push and Learn” self-learning type.
Configuration
Front view

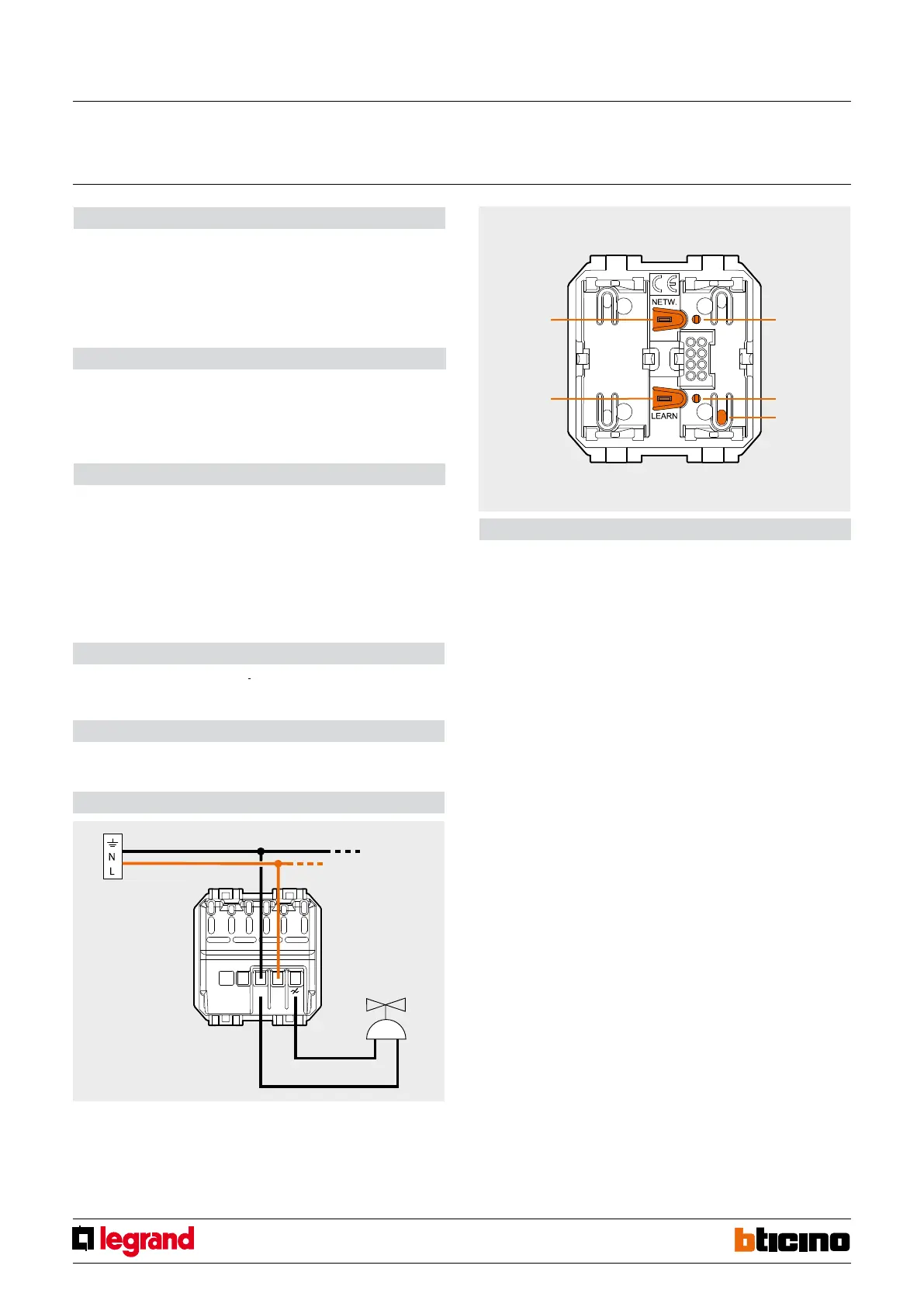

Actuator RF for technical alarms
MQ00398-b-EN
Related items
The actuator is used in conjunction with the specific radio gateway for technical alarms
H4586 (Axolute) and LN4586 (Livinglight).
05/06/2014
