22
24/09/2013
Aux2
Aux1
+ –
A +–
+ –
2
1
3
4
5
230 V
0675 25
H4586
LN4586

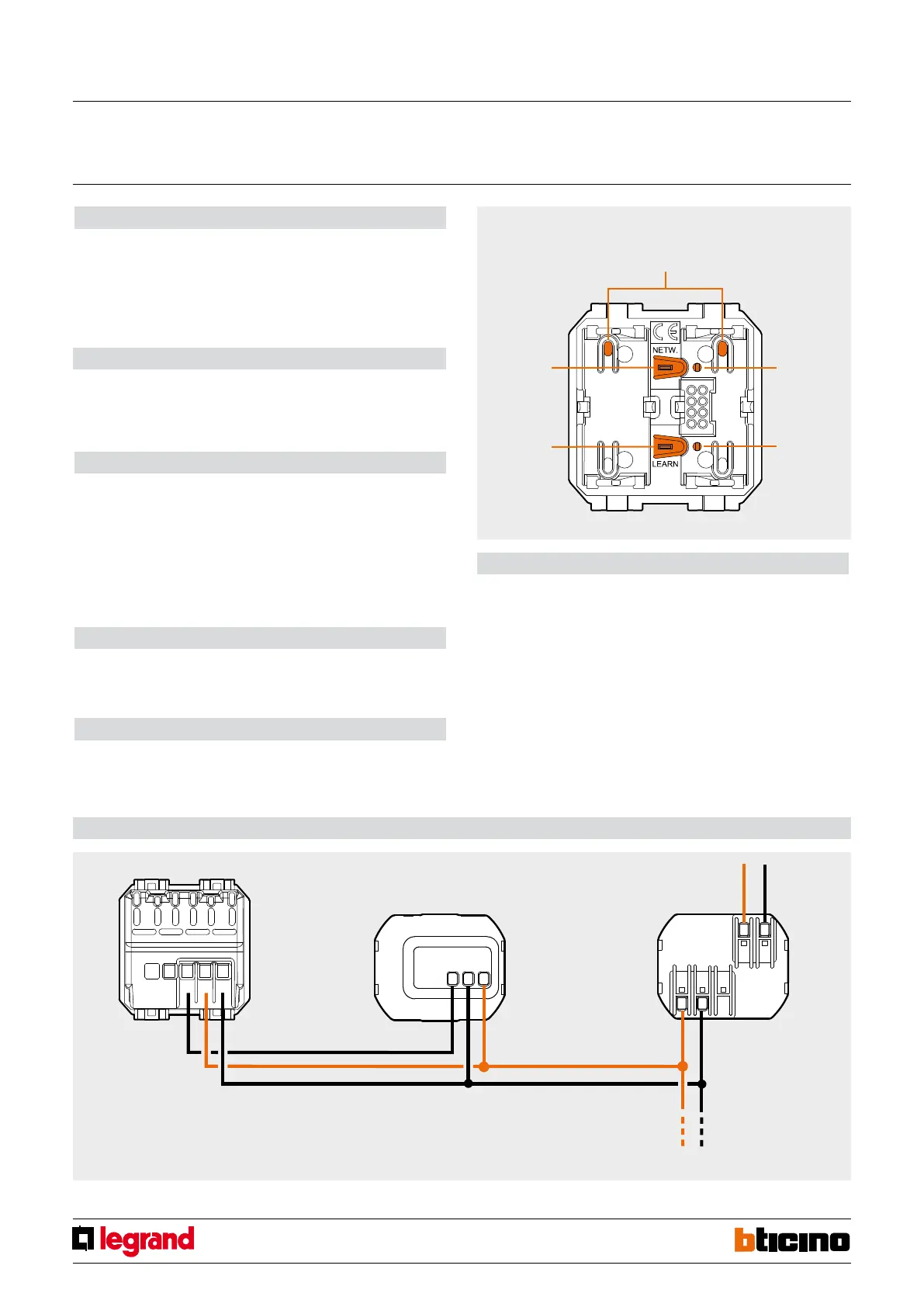

Transceiver for technical alarms
Device to be used together with a detector, for the protection of the home from water,
gas, or smoke. In case of danger, the device will send a radio signal to the radio actuator
for the activation of acoustic/luminous indicators, or for the control of a solenoid valve
for the isolation of the water or gas pipes at the entrance of the house.
Description
Power supply: 12 Vdc (also with 12 Vac L/N/NT4541
transformer)
Operating temperature: 5 – 45 °C
Technology: Radio 2.4 GHz standard ZigBee®
Capacity: 150 m free field, 15 m in rooms with
concrete walls
Technical data
Size: 2 flush mounted modules
Dimensional data
“Push and Learn” self-learning type.
Configuration
Legend
1. ON/OFF key
2. NETWORK LED
3. LEARNING LED
4. LEARNING key
5. NETWORK key
Front view
Wiring diagram
Gas detector
12 Vac transformer
12 Vdc
Radio interface
H/LN4586
0675 25
MQ00397-c-EN
Related items
Actuator: 672 33 Celiane),
H/LN4587 (Axolute), (Livinglight)
