36
24/09/2013
9
8
4
3
5
1
7 6
2
PL
A
7
6
58
1
2
4
3
9
0672 39
HA/HB4598
L/N4598N
078409
079109
663094
Dimming control 1 gang
Radio control device for the control of an ON/OFF or Dimmer actuator, or a group of
actuators.
When controlling ON/OFF actuators, it will only possible to switch the load on/off.
Description
Power supply: No. 1 lithium battery 3 V, CR2032 type
Duration of the batteries: 5 years
Operating temperature: 5 – 45 °C
Technology: Radio 2.4 GHz standard ZigBee®
Capacity: 150 m free field, 15 m in rooms with
concrete walls
Technical data
Size: 2 modules for surface mounted installation
Dimensional data
“Push and Learn” self-learning type.
If the device is integrated in the BUS Automation system using the Gateway SCS/Zigbee
interface it will be possible to manage BUS dimmer actuators, which address must be
configured by connecting the configurators to the A and PL.
Configuration

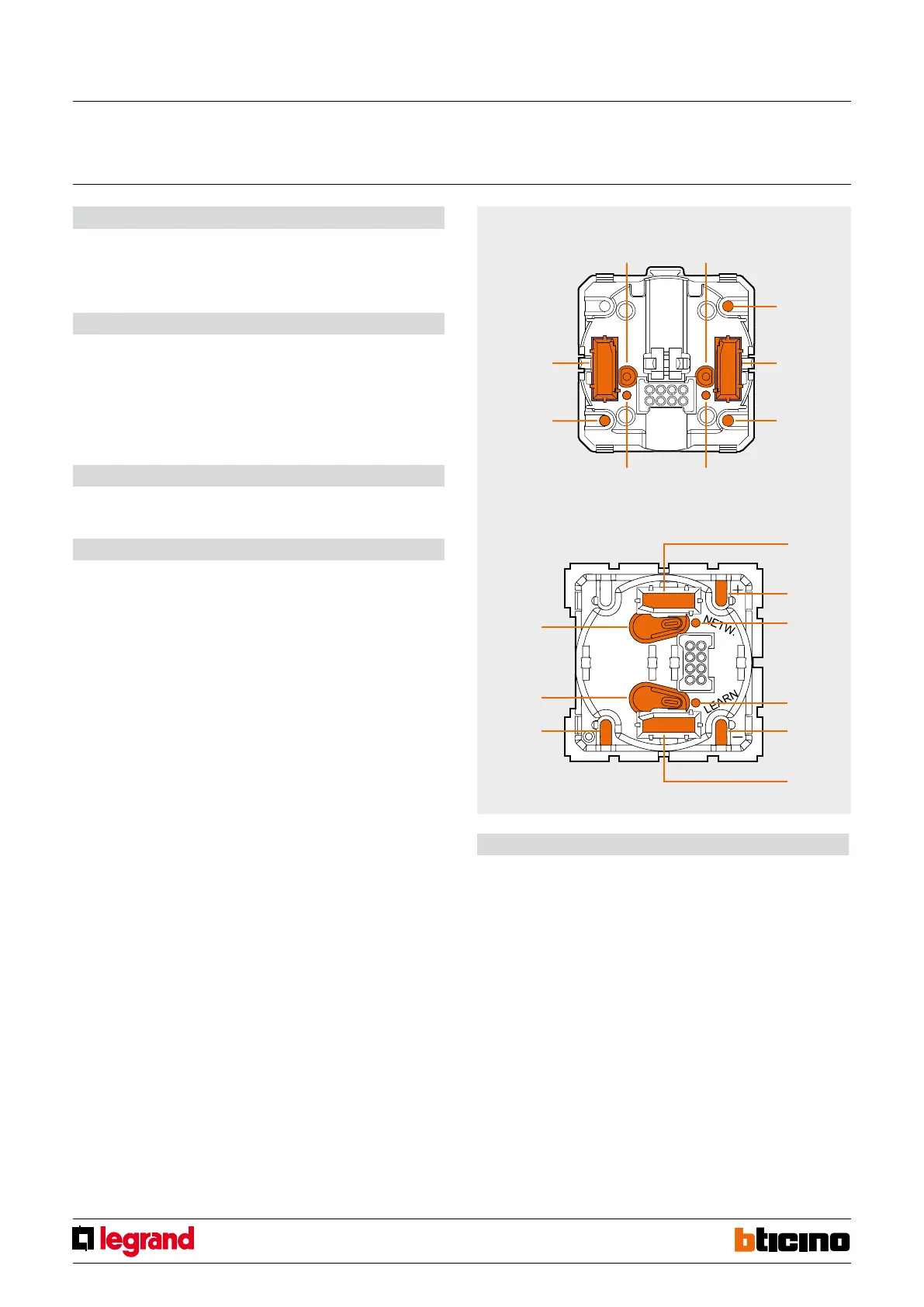

Legend
1. LEARNING key
2. NETWORK key
3. + key: press and release to switch the load ON at 66% of its power, press and hold
down to increase the power to the maximum value
4. Configurator socket (A,PL)
5. - key: press and release to switch the load ON at 33% of its power, press and hold
down to decrease the power to the minimum value
6. NETWORK LED
7. LEARNING LED
8. ON/OFF key
9. Configurator socket (not used)
Front view
MQ00408-c-EN
