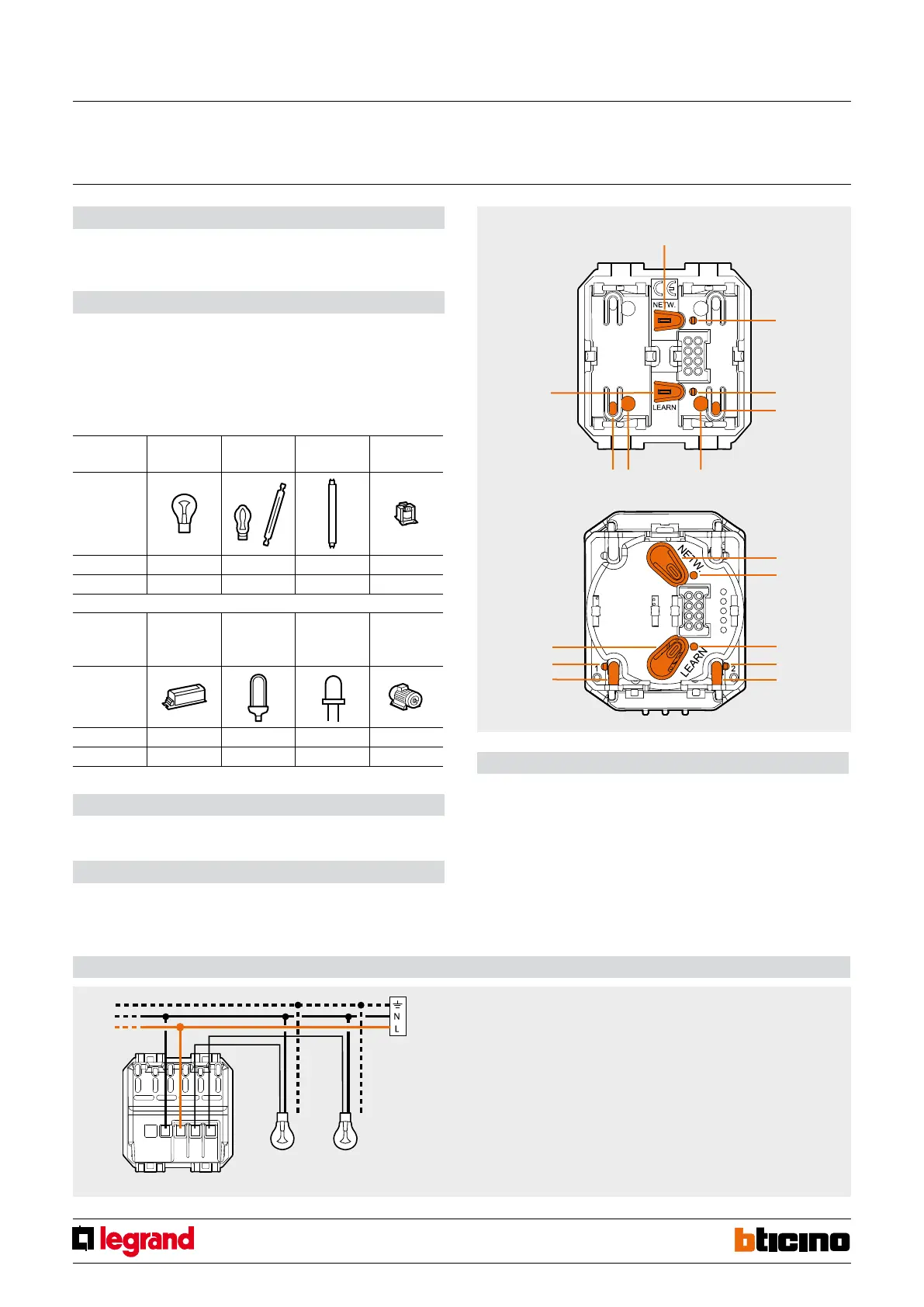

Universal switch RF with neutral 2 X 1000W
with LEDS status
Actuator for the control of 2 different loads with maximum powers up to 1000 W, with
ON/OFF LED.
Description
Size: 2 flush mounted modules
Dimensional data
“Push and Learn” self-learning type.
Configuration
Power supply: 100 – 240 Vac 50/60 Hz
Operating temperature: 5 – 45 °C
Technology: Radio 2.4 GHz standard ZigBee®
Capacity: 150 m free field, 15 m in rooms with concrete
walls
Power/absorption of the loads driven: see following table
Technical data
Voltage
Incandescent
lamp
Halogen lamp
Fluorescent
tube lamp
Ferromagnetic
transformer
Voltage
230 Vac 2 x 1000 W 2 x 1000 W 2 x 500 W 2 x 1000 VA
110 Vac 2 x 500 W 2 x 500 W 2 x 250 W 2 x 500 VA
Voltage
Electronic
transformer
Compact
uorescent
tube lamp
LED lamps Motors
Voltage
230 Vac 2 x 1000 W 2 x 500 W 2 x 500 W 2 x 100 VA
110 Vac 2 x 500 W 2 x 250 W 2 x 250 W 2 x 50 VA
Wiring diagram
Important:
– Connect a load before performing any “scenario” learning procedure.
– For conventional type transformers, a load with power 60% higher than their rated
power must be connected.
– For the calculation of the controllable power take into account the efficiency of
standard transformers (e.g.: transformer for a 50 W lamp with an efficiency of
0.78 => power actually absorbed by the transformer = 64 VA).
Legend
1. NETWORK key
2. NETWORK LED
3. LEARNING LED
4. ON/OFF key
5. Load ON/OFF LED
6. ON/OFF key
7. LEARNING key
Front view
MQ00402-c-EN
