Legend
1.
Programming key: Learn IN
2. Programming key: Learn OUT
3. LED
4. Configurator socket
5. SCS BUS connector

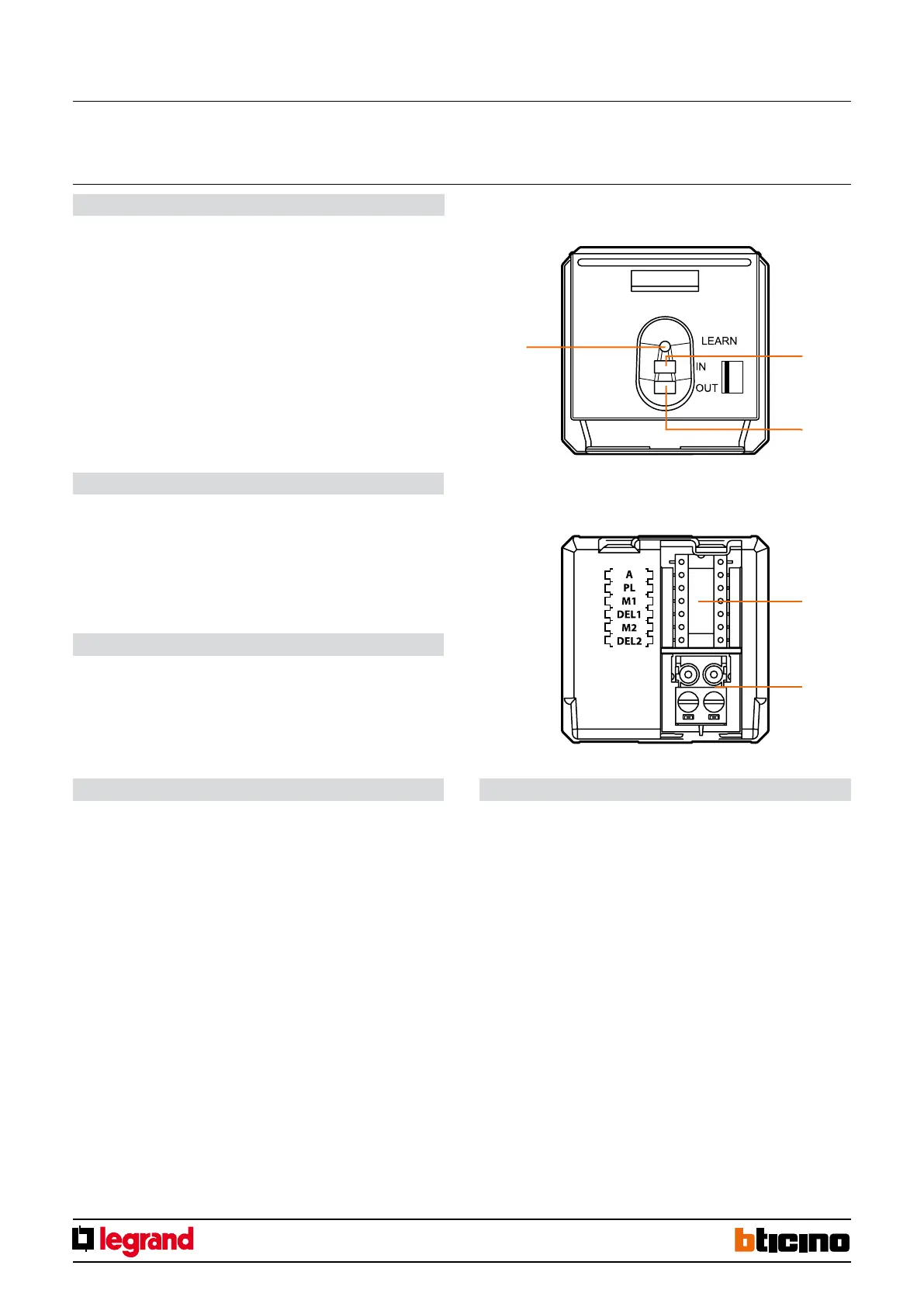

Front view
Rear view
RFID key card switch for the connection of the power supply to the hotel room
(13.56MHz frequency key card detection). Thanks to the LED backlit slot, the device
can be found in the dark. An automatic switch o delay can also be set.
It can be used with key cards with sizes between 45 mm and 54 mm (ISO).
The device can be configured in two different ways:
- Physical configuration, by inserting the configurators in the appropriate housings.
- Configuration using the MyHOME_Suite software, which can be downloaded from
the website www.homesystems-legrandgroup.com; this last type of configuration
has the advantage of offering many more options when compared with the physical
configuration.
Description
Power supply from SCS BUS: 18-27 Vdc
Max. absorption: 6 mA
Stand-by absorption: 5 mA
Operating temperature: (-10) – (+45) °C
RFID key card frequency: 13.56 MHz
Technical data
Dimensional data
BUS SCS
RFID key card switches
EN 60669-2-1
EN 50090-2-2
EN 50090-2-3
EN 50428
Standards, Certifications, Marks
Size: 2 flush mounted modules
