261
MOD
MOD
115
44
115
067515
HC4070
HD4070
HS4070
N4070
NT4070
573984

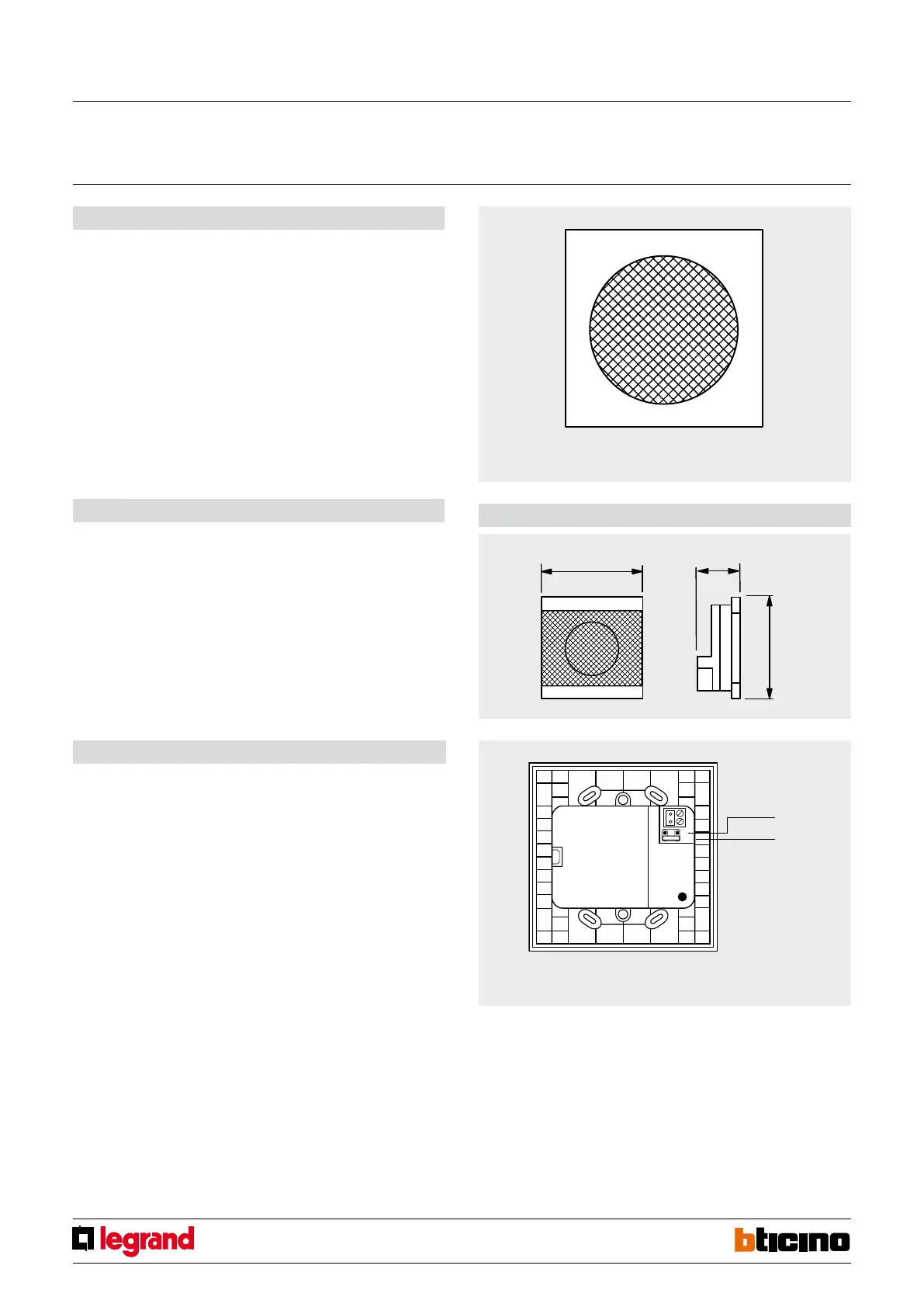

Description
This siren is tted with battery (item 3507/6); up to a maximum of 3 indoor sirens can be
installed inside the protected area.
It can be installed in ush mounted boxes. The indoor siren can be programmed for
signalling intrusion alarms through a continuous sound (frequency 1880Hz) and/or
auxiliary alarms through a modulated sound.
This siren is self-protected against opening and rip-o by means of a self-adjusting
tampering device. Do not use batteries dierent from the ones indicated.
Related articles:
681 89 (White Cover)
684 89 (Titanium Cover)
801 24 (Flush-mounting box)
89379 (Flush-mounting box)
89130 (Flush-mounting box)
Technical data
- Power supply from SCS BUS: 27 Vdc
- Self powering battery: item 3507/6
- Max. absorption: 8 mA
- Operating temperature: 5 – 40°C
- Level of the signal emitted: 105 dB(A) at 3 metres
- Frequency: 1880 Hz.
Dimensional data
Conguration
The indoor siren requires assignment of the progressive number and the operating
mode. It gives an intermittent sound to signal the activation of any one of the auxiliary
channels generated by an auxiliary channel interface in mode 0 and 4 (technical alarm).
This congurator assigns the progressive number in the internal siren unit.
No congurator or congurator 1 identies the rst siren, congurator 2 the second and
congurator 3 the third.
NOTE: Systems with external siren 4072A and 084424:
If the system has an external siren, it must be considered as siren No. 1; if there are two,
they must be considered as No. 1 and No. 2.
The internal sirens will be counted in sequence. There must be a maximum of 3 sirens
(internal and external).
MOD
This congurator assigns the signalling mode based on the type of alarm received.
No congurator: anti-intrusion alarm and technical alarm enabled.
Conguratore 1: anti-intrusion alarm enabled and technical alarm disabled.
Congurator 2: anti-intrusion alarm disabled and technical alarm enabled.
Congurator 4: anti-intrusion alarm and technical alarm enabled. System ON/OFF
sound signal.
Congurator 5: anti-intrusion alarm enabled and technical alarm disabled.System
ON/OFF sound signal.
Congurator 6: anti-intrusion alarm disabled and technical alarm enabled. System
ON/OFF sound signal.
Front view
Rear view
Indoor siren
MQ00058-c-EN 21/10/2013
128 (item 067515-573984) 56 (item 573984)
128 (item 067515-573984)
