28
24/09/2013
4
3
7
8
1
2
6 5
L
3
2
5
4
1
6
7
8
0672 37
H4593
LN4593
663092
All load dimmer RF without neutral
300W with LEDS bargraphe
Important:
– Connect a load before performing any “scenario” learning procedure.
– For conventional type transformers, a load with power 60% higher than their rated
power must be connected.
– For the calculation of the controllable power take into account the efficiency of
standard transformers (e.g.: transformer for a 50 W lamp with an efficiency of
0.78 => power actually absorbed by the transformer = 64 VA)
Legend
1. + key: press and release immediately to activate the load at 66% of its power; press
and hold down to increase the power to the maximum value.
2. NETWORK LED
3. LEARNING LED
4. - key: press and release immediately to activate the load at 33% of its power; press
and hold down to decrease the power to the minimum value.
5. Load ON/OFF LED
6. ON/OFF key
7. LEARNING key
8. NETWORK key

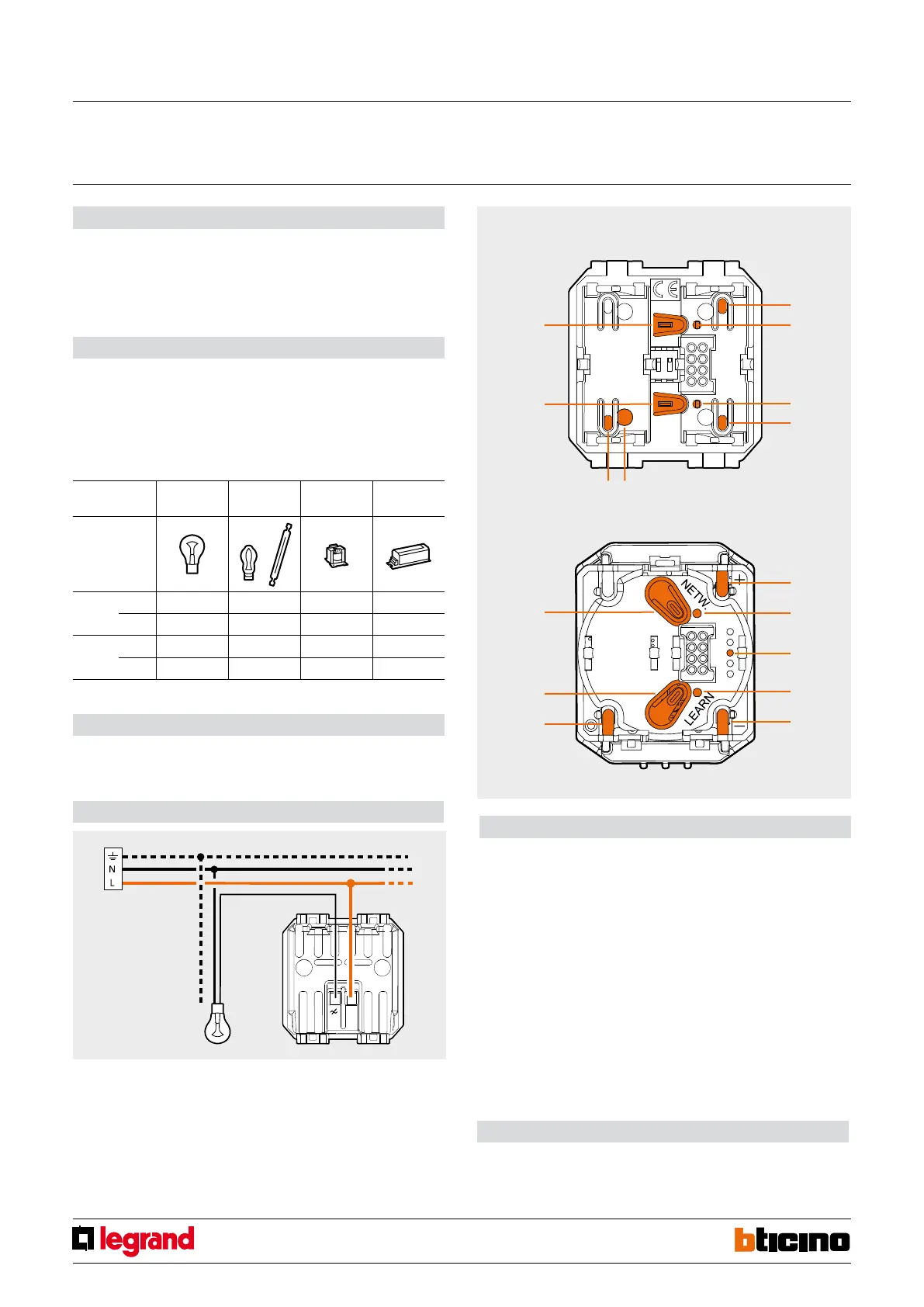

Front view
Wiring diagram
“Push and Learn” self-learning type.
Configuration
Actuator for the control of different loads with maximum powers 300 W, with ON/OFF
LED. For the connection of the Dimmer to the load and to the electric system no neutral
conductor is required. The selection of the ON/OFF mode based on the load to drive
(resistive or inductive) is performed using a micro-switch.
Description
Size: 2 flush mounted modules
Dimensional data
Power supply: 100 – 240 Vac 50/60 Hz
Operating temperature: 5 – 45 °C
Technology: Radio 2.4 GHz standard ZigBee®
Capacity: 150 m free field, 15 m in rooms with
concrete walls
Power/absorption of the loads driven: see following table
Technical data
Voltage
Incandescent
lamp
Halogen
lamp
Ferromagnetic
transformer
Electronic
transformer
Voltage
230 Vac
Max.
300 W 300 W 300 VA 300 VA
Min.
60 W 60 W 60 VA 60 VA
110 Vac
Max.
150 W 150 W 150 VA 150 VA
Min.
60 W 60 W 60 VA 60 VA
MQ00403-c-EN
