0672 31
H4590
LN4590
663088
665103

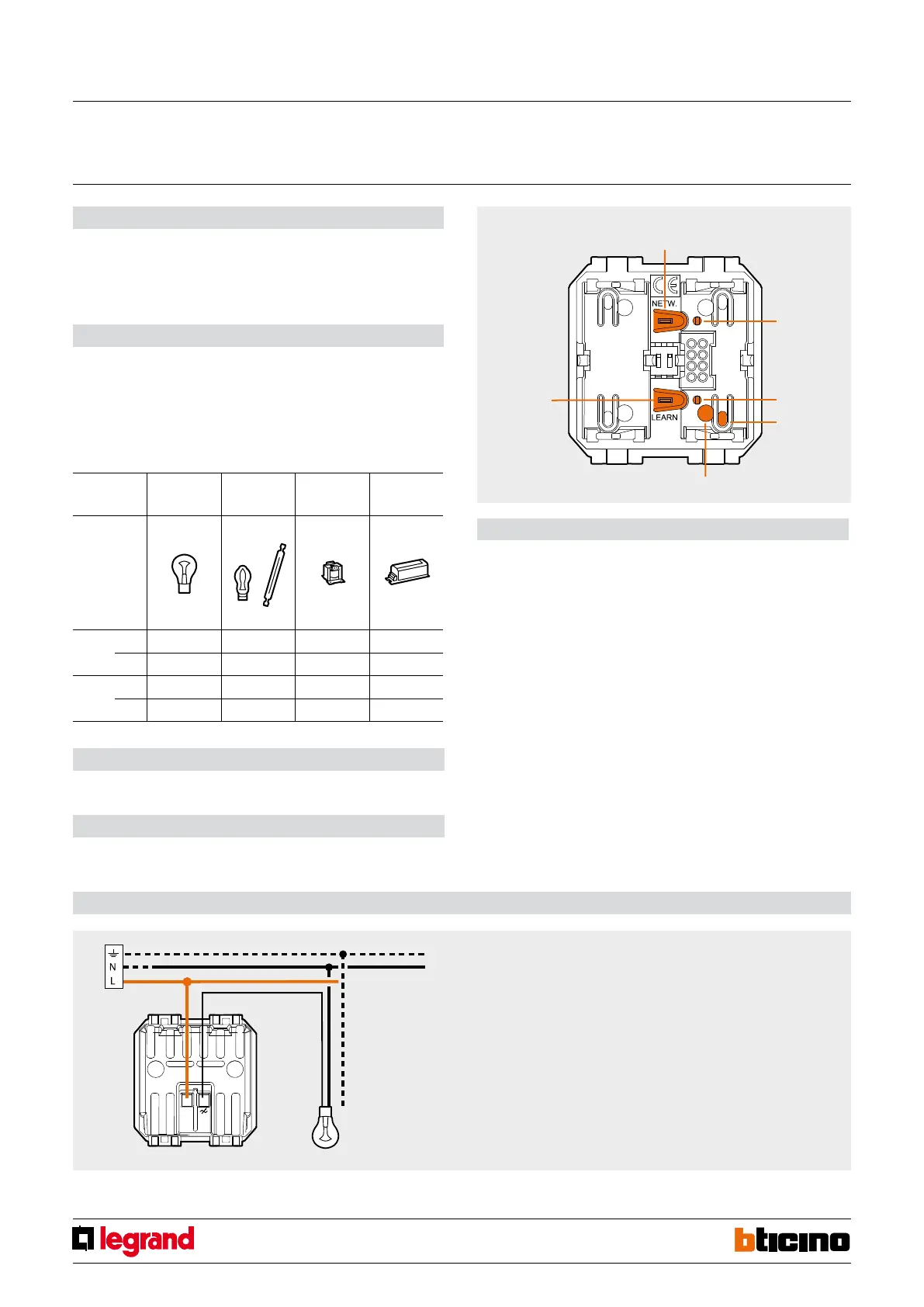

Switch without neutral 400W
with LEDS status
Actuator for the control of loads with maximum power 400 W, with ON/OFF LED.
For the connection of the device to the load and to the electric system no neutral
conductor is required.
Description
Legend
1. NETWORK key
2. NETWORK LED
3. LEARNING LED
4. ON/OFF key
5. Load ON/OFF LED
6. LEARNING key
Size: 2 flush mounted modules
Dimensional data
“Push and Learn” self-learning type.
Configuration
Front view
Power supply: 100 – 240 Vac 50/60 Hz
Operating temperature: 5 – 45 °C
Technology: Radio 2.4 GHz standard ZigBee®
Capacity: 150 m free field, 15 m in rooms with
concrete walls
Power/absorption of the loads driven: see following table
Technical data
Voltage
Incandescent
lamp
Halogen lamp
Ferromagnetic
transformer
Electronic
transformer
Voltage
230 Vac
Max.
400 W 400 W 400 VA 400 VA
Min.
60 W 60 W 60 VA 60 VA
110 Vac
Max.
200 W 200 W 200 VA 200 VA
Min.
60 W 60 W 60 VA 60 VA
Wiring diagram
Important:
– Connect a load before performing any “scenario” learning
procedure.
– For conventional type transformers, a load with power 60%
higher than their rated power must be connected.
– For the calculation of the controllable power take into account
the efficiency of standard transformers (e.g.: transformer for a 50
W lamp with an efficiency of 0.78 => power actually absorbed
by the transformer = 64 VA)
MQ00400-c-EN
